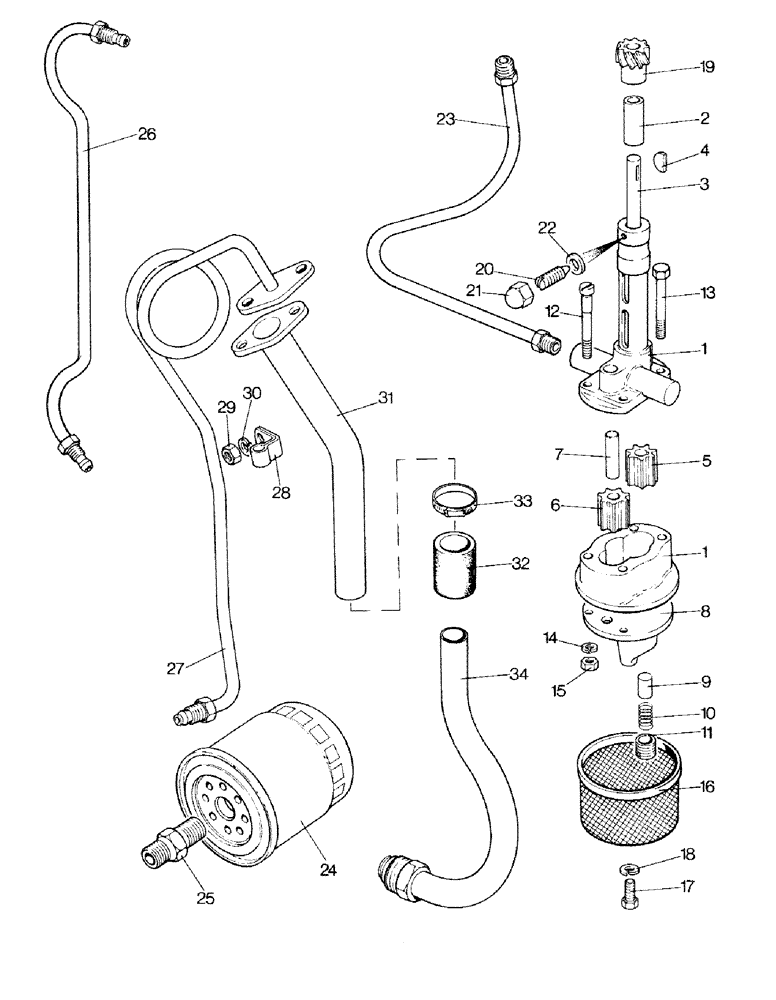

Запчасти Case IH 1490 (A10-1) - OIL PUMP, FILTER AND PIPES (01) - ENGINE

K953894

PUMP, ENGINE OIL

OIL PUMP ASSEMBLY, Includes: Ref. 1 - 19

1шт.

1

K963414

SUPPORT

BRACKET AND GEAR HOUSING, Includes: Ref. 2 and 3

1шт.

2

K30016

BUSHING

1шт.

3

K928678

SPINDLE

DRIVING SPINDLE - 15-3/8" (390.525 mm)

1шт.

4

K19604

KEY

- Woodruff no. 405

1шт.

5

K928681

ROTOR

DRIVING ROTOR

1шт.

6

K928680

ROTOR

DRIVEN ROTOR

1шт.

7

K928679

SPINDLE

- driven rotor

1шт.

K953815

VALVE

RELIEF VALVE ASSEMBLY, Includes: Ref. 8 - 11

1шт.

8

K953009

COVER

- pump body

1шт.

9

K953008

PLUNGER

1шт.

10

K12961

SPRING

1шт.

11

K953010

SCREW,3/8" x 9/16"

- adjusting

1шт.

12

K928682

BOLT

- 1/4 UNC x 2-5/16", speical fitting

2шт.

13

K600013

BOLT

- 1/4 UNC x 2-3/8"

2шт.

14

K626341

SPRING WASHER

WASHER - lock, 1/4"

4шт.

15

K607043

NUT

- 1/4 UNC

4шт.

16

K12013

FILTER

SCREEN

1шт.

17

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SETSCREW - 1/4 UNC x 1/2"

1шт.

18

K626341

SPRING WASHER

WASHER - lock, 1/4"

1шт.

19

K902051

GEAR

SPIRAL PINION

1шт.

20

K928254

SCREW,7/16" - 14 x 1 5/16"

LOCATING SCREW - 7/16 UNC

1шт.

21

K607516

NUT

CAPPED NUT - 7/16 UNC

1шт.

22

K14674

WASHER

COPPER WASHER - 7/16" (11.112 mm)

1шт.

23

K915750

PIPE

OIL PIPE - pump to cylinder block

1шт.

24

K200037

FILTER

OIL FILTER

1шт.

25

K200007

FITTING

CONNECTOR - 5/8 UNC - 3/4 UNF

1шт.

26

K902765

PIPE

OIL PIPE - cylinder, Serial Range: block-head

1шт.

27

K203316

PIPE

OIL PIPE - cylinder, Serial Range: block-turbocharger

1шт.

28

K621700

CLIP

- turbocharger pipe

1шт.

29

280136

NUT,3/8"-16, G8

1шт.

30

K19482

SPRING WASHER

WASHER - lock, 3/8"

1шт.

31

K202555

PIPE

- upper turbocharger drain

1шт.

32

K626816

HOSE

- 3/4 x 2" (19.05 x 50.8 mm)

1шт.

33

K622025

CLAMP

HOSE CLIP - 1" (25.4 mm)

2шт.

34

K202554

PIPE,0.75" OD x 10.875, 4.25" L

- lower, turbocharger drain

1шт.
