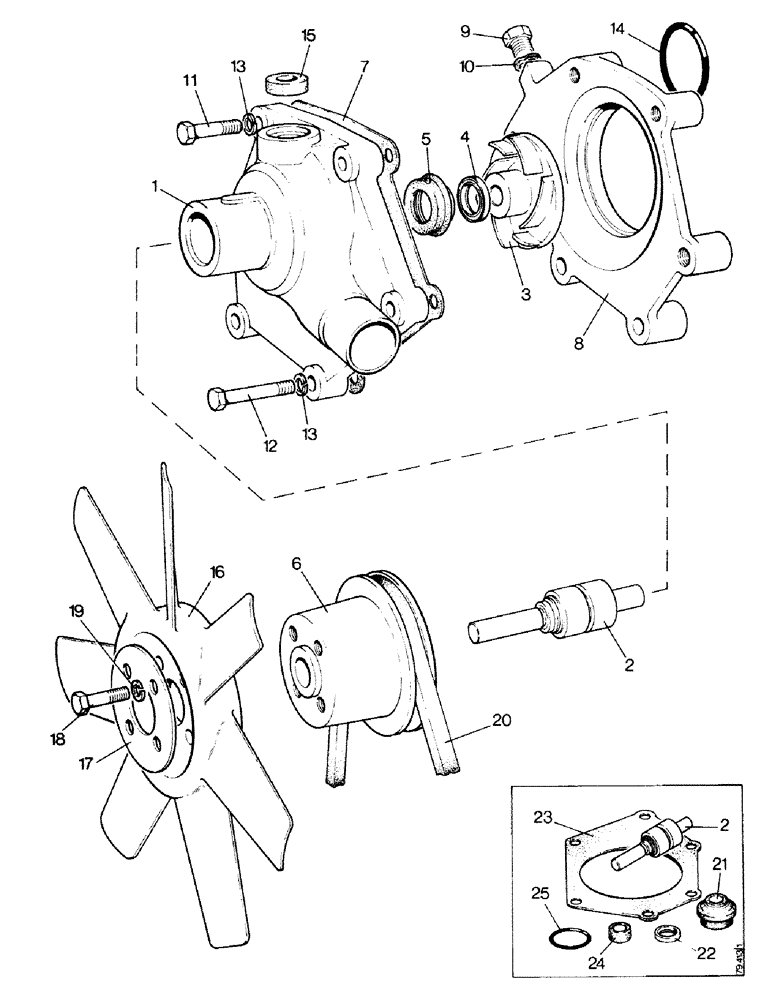

Запчасти Case IH 1490 (A09-1) - WATER PUMP AND FAN (01) - ENGINE

K201815

PUMP

WATER PUMP ASSEMBLY, Includes: Ref. 1 - 6

1шт.

1

K200686

HOUSING

BODY

1шт.

2

K620202

BEARING ASSY

SHAFT AND BEARING

1шт.

3

K200687

IMPELLER

1шт.

4

K200821

RING

FACING RING

1шт.

5

K200823

GLAND

SEAL

1шт.

6

K201814

PULLEY

1шт.

7

K942844

GASKET

1шт.

8

K942843

HOUSING

- impeller

1шт.

9

K623829

PLUG

- 3/8 BSP, early pumps

2шт.

10

K19500

GASKET

FIBER WASHER - early pumps

2шт.

11

K600203

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

- 5/16 UNC x 1-1/4"

2шт.

12

K600211

BOLT

- 5/16 UNC x 2-1/4"

4шт.

13

K19481

SPRING WASHER

WASHER - lock, 5/16"

6шт.

14

K24737

O-RING,0.139" Thk x 1.609" ID, -223, Cl 6, 90 Duro

- 1-5/8" (41.275 mm) internal diameter

1шт.

15

K915330

SEALING RING

RUBBER SEAL - pump to cylinder head

1шт.

16

K921359

FAN

- seven blade

1шт.

K200402 fan, 6 blade

1шт.

17

K921361

SHIM

RETAINING PLATE

1шт.

18

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

19

K19482

SPRING WASHER

WASHER - lock, 3/8"

4шт.

20

K68073

V-BELT

Driving, Fan and alternator

1шт.

K965888

PACKAGE, REPAIR

KIT - water pump repair, Includes: Ref. 20 - 24

1шт.

20

K620202

BEARING ASSY

SHAFT AND BEARING

1шт.

21

K200823

GLAND

SEAL

1шт.

22

K200821

RING

FACING RING

1шт.

23

K942844

GASKET

- pump to impeller housing

1шт.

24

K915330

SEALING RING

RUBBER SEAL - pump to cylinder head

1шт.

25

K24737

O-RING,0.139" Thk x 1.609" ID, -223, Cl 6, 90 Duro

- 1-5/8" (41.275 mm) internal diameter

1шт.
