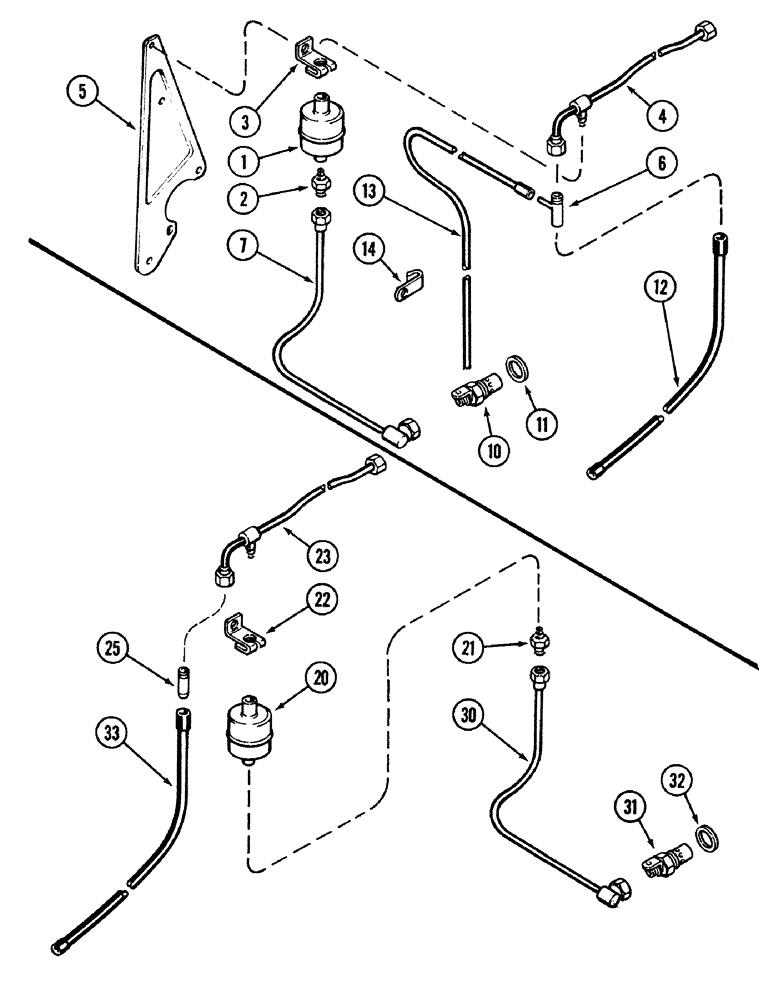

Запчасти Case IH 1490 (A08-3) - FUEL THERMOSTART RESERVOIR AND PIPES, HIGH PLATFORM, CAB, P.I.N. 11184823 AND AFTER (01) - ENGINE

K205396

THERMOSTART

RESERVOIR ASSEMBLY - fuel, Includes: Ref. 1 - 4

1шт.

1

K205395

TANK

RESERVOIR - thermostart (Replaces K302979)

1шт.

2

K205311

INSERT

- male, thermostart

1шт.

3

K205057

CLAMP

- reservoir

1шт.

4

NSS

NOT SOLD SEPARAT

PIPE ASSEMBLY - leak-off to reservoir (Order K205396)

1шт.

5

K302478

BRACKET

- mounting, reservoir

1шт.

6

K304479

FITTING

RESTRICTOR - fuel

1шт.

7

K205364

HOSE,0.187" OD x 19" L

PIPE ASSEMBLY - reservoir to thermostart

1шт.

10

K928523

GLOW PLUG

THERMOSTART - fuel (Cav 1854102)

1шт.

11

K626957

WASHER

- fiber, 7/8"

1шт.

12

K205360

PIPE

- fuel return

1шт.

13

K205702

HOSE,0.18" ID x 0.187" OD x 47, 18" L

PIPE - venting, thermostart

1шт.

14

K628378

CLIP

- spring, vent pipe

2шт.

K205396

THERMOSTART

RESERVOIR ASSEMBLY - fuel, low profile, Includes: Ref. 20 - 23

1шт.

20

K302979

RESERVOIR

- thermostart, low profile

1шт.

21

K205311

INSERT

- male, thermostart, low profile

1шт.

22

K205057

CLAMP

- reservoir, low profile

1шт.

23

NSS

NOT SOLD SEPARAT

PIPE ASSEMBLY - leak-off to reservoir (Order K205396), low profile

1шт.

25

K304124

FITTING

RESTRICTOR - fuel, low profile

1шт.

30

K205364

HOSE,0.187" OD x 19" L

PIPE ASSEMBLY - reservoir to thermostart, low profile

1шт.

31

K928523

GLOW PLUG

THERMOSTART - fuel (CAV 1854102), low profile

1шт.

32

K626957

WASHER

- fiber, 7/8", low profile

1шт.

33

K205362

HOSE

PIPE - fuel return, low profile

1шт.
