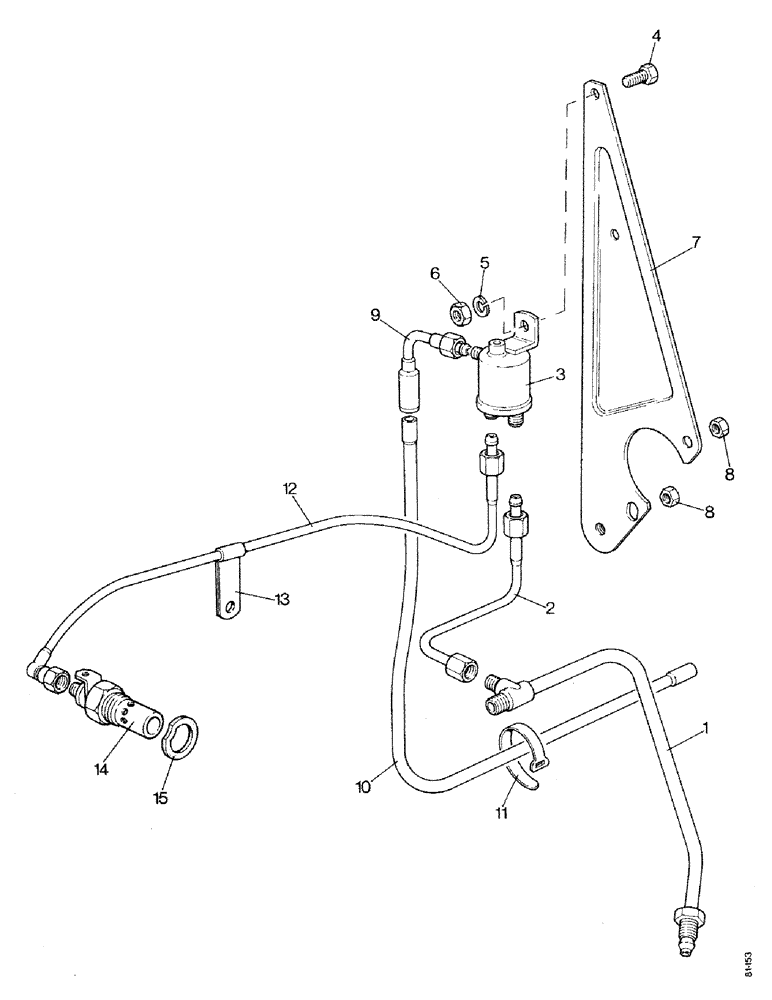

Запчасти Case IH 1490 (A08-1) - THERMOSTART, RESERVOIR AND PIPES, PRIOR TO P.I.N. 1184823 (01) - ENGINE

1

K204246

FUEL TUBE,0.25" OD

PIPE - filters to leak-off pipe

1шт.

2

K203169

RETURN PIPE

PIPE - reservoir inlet

1шт.

3

K202360

RESERVOIR

- fuel, thermostart

1шт.

4

K612802

SCREW

SETSCREW - 5/16 UNF x 5/8"

1шт.

5

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

6

129-122

NUT,5/16"-24, G5

1шт.

7

K302478

BRACKET

- reservoir and steering pump breather

1шт.

8

129-123

NUT,3/8"-24, G5

Manifold 3/8"-24, G5

2шт.

9

K204400

HOSE

PIPE - reservoir outlet

1шт.

10

K204404

HOSE,0.315" OD x 46, .687" L

PIPE - fuel return, tractors without cab

1шт.

10

K203169

RETURN PIPE

PIPE - fuel return, tractors with cab

1шт.

11

K621672

HOSE CLAMP

STRAP - pipe

2шт.

12

K205367

HOSE,0.187" OD x 33.5" L

PIPE - reservoir to thermostart (Replaces K944797)

1шт.

13

K621687

CLIP

- pipe

1шт.

14

K928523

GLOW PLUG

THERMOSTART - (CAV 1854102)

1шт.

15

K626957

WASHER

FIBER WASHER - 7/8" (22.225 mm)

1шт.
