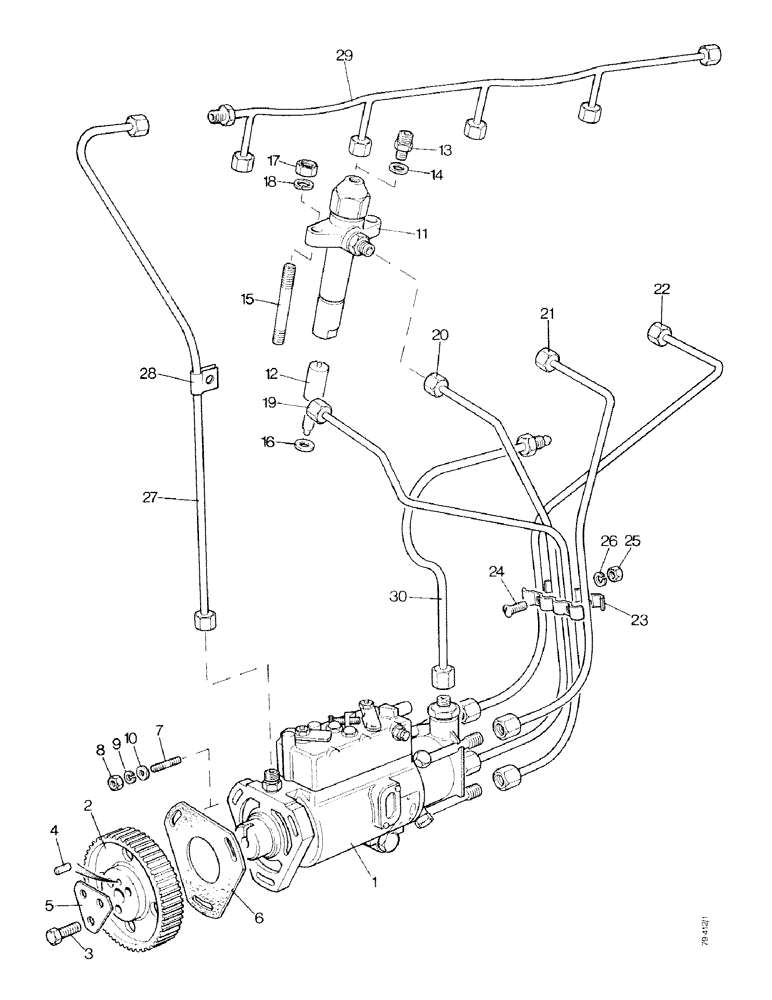

Запчасти Case IH 1490 (A06-1) - INJECTION PUMP, INJECTORS AND PIPES (01) - ENGINE

1

NSS

NOT SOLD SEPARAT

INJECTION PUMP - CAV DPA3241F691 (Order K957354), Serial Range: -11414353

1шт.

1

K957354

PUMP

INJECTION PUMP - CAV 3343F240, Start Serial: 11414353

1шт.

1

K957354

PUMP

INJECTION PUMP - CAV 3343F240, Start Serial: 11414354

1шт.

1

K957354

PUMP

INJECTION PUMP - CAV 3343F240, Start Serial: 11414528

1шт.

2

K949822

GEAR

DRIVE GEAR - 68 teeth

1шт.

3

K612804

SCREW

SETSCREW - 5/8 UNF x 7/8"

3шт.

4

K25360

PIN

DOWEL - 1/4 x 9/16" (6.35 x 14.288 mm)

1шт.

5

K914503

LARGE PLATE

TABWASHER - gear screw

1шт.

6

K68349

GASKET

- pump to carrier plate

1шт.

7

K608135

STUD

- 5/16 UNC x 1-1/4", pump to carrier plate

3шт.

8

9635082

NUT,5/16" - 18, Gr 5

Pump to carrier plate 5/16"-18, G5

3шт.

9

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , Pump to carrier plate 5/16"

3шт.

10

K626682

WASHER

- flat, 5/16" (7.938 mm) pump to carrier plate

3шт.

K955242

NOZZLE CAP

INJECTOR - (See Figure A14), Includes: Ref. 11 and 12

4шт.

11

K955243

NOZZLE CAP

HOLDER - injector

1шт.

12

K942176

NOZZLE CAP

NOZZLE - injector (Replaces K954027)

1шт.

13

K620460

ADAPTER

ADAPTOR - M8 - 1/8 BSP, injector leak-off

4шт.

14

K36374

WASHER

COPPER WASHER - 8 mm

4шт.

15

K608107

STUD

- 5/16 UNC x 1-11/16", injectors to cylinder head

8шт.

16

F62390

WASHER,10mm ID x 21.01mm OD x 2.08mm Thk

COPPER WASHER - injectors to cylinder head (Replaces K901092)

4шт.

17

9635082

NUT,5/16" - 18, Gr 5

Injectors to cylinder head 5/16"-18, G5

8шт.

18

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , Injectors to cylinder head 5/16"

8шт.

19

K918915

PIPE

FUEL PIPE - injection pump to no. 1 cylinder

1шт.

20

K918916

PIPE

FUEL PIPE - injection pump to no. 2 cylinder

1шт.

21

K954828

PIPE,18.281" L

FUEL PIPE - injection pump to no. 3 cylinder

1шт.

22

K954829

PIPE,20.75" L

FUEL PIPE - injection pump to no. 4 cylinder

1шт.

23

K900844

CLAMP

CLIP - injector pipes

2шт.

24

K12217

SCREW,0.185" x 5/8"

- 2BA x 5/8"

2шт.

25

K11109

NUT

- 2BA

2шт.

26

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

27

K203135

PIPE,0.187" OD

LEAK-OFF PIPE - injector pump

1шт.

28

K621610

CLIP

- pipe to exhaust manifold stud

1шт.

29

K204248

PIPE,0.187" OD

LEAK-OFF PIPE - injectors

1шт.

30

K918923

PIPE

FUEL PIPE - filler to injector pump

1шт.
