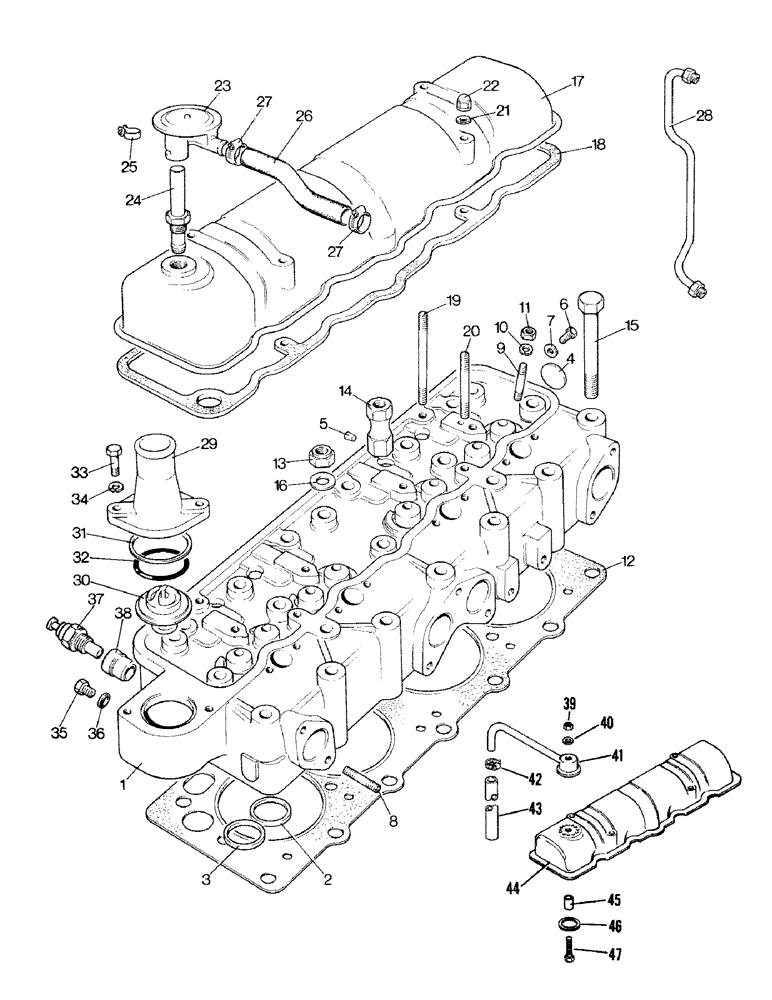

Запчасти Case IH 1490 (A05-1) - CYLINDER HEAD (01) - ENGINE

1

K260131

HEAD (CYLINDER)

CYLINDER HEAD, Includes: Ref. 2 - 5

1шт.

2

K921246

INSERT

- inlet valve seat

4шт.

3

K921247

INSERT

- exhaust valve seat

4шт.

4

K623791

PLUG

CORE PLUG - 1-1/4" (31.75 mm) diameter

1шт.

5

K900431

PLUG

TAPER PLUG

4шт.

6

K19591

PLUG

- 1/8 BSP

1шт.

7

K16732

WASHER

COPPER WASHER - 3/8" (9.525 mm)

1шт.

8

K608203

STUD

- 3/8 UNC x 1-7/8", inlet and exhaust manifolds

3шт.

8

K608209

STUD

- 3/8 UNC x 2-1/4", inlet and exhaust manifolds

3шт.

8

K608214

STUD

- 3/8 UNC x 2", inlet and exhaust manifolds

1шт.

8

K608237

STUD

- 3/8 UNC x 1-3/4", inlet and exhaust manifolds

4шт.

8

K608214

STUD

- 3/8 UNC x 2", inlet and exhaust manifolds

3шт.

8

K608243

STUD

- 3/8 UNC x 2-1/2", inlet and exhaust manifolds

1шт.

9

K608107

STUD

- 5/16 UNC x 1-1/16", injectors

8шт.

10

K19481

SPRING WASHER

WASHER - lock, 5/16", injectors

8шт.

11

9635082

NUT,5/16" - 18, Gr 5

- 5/16 UNC, injectors

8шт.

12

K953783

CYLINDER HEAD GASKET

GASKET

1шт.

13

K617594

NUT

- 1/2 UNF, special

5шт.

14

K906536

NUT

ELONGATED NUT - 1/2 UNF

7шт.

15

K600870

BOLT

- 1/2 UNC x 4-1/2", special

7шт.

16

K953429

WASHER,13.89mm ID x 23.81mm OD x 0.71mm Thk

FLAT WASHER - 1/2" (12.7 mm)

1шт.

17

K202170

COVER

- valve mechanism, Serial Range: -11183587

1шт.

18

K905229

GASKET,3.97mm Thk

1шт.

19

K608118

STUD

- 5/16 UNC x 3-7/16"

2шт.

20

K608119

STUD

- 5/16 UNC x 2-13/16"

2шт.

21

K14988

WASHER

COPPER ASBESTOS WASHER - 5/16" (7.938 mm)

4шт.

22

K607252

NUT

DOMED NUT - 5/16 UNC

4шт.

23

K300271

BREATHER

VALVE - (AC Delco 1533740), Serial Range: -11183587

1шт.

Changed to kit K260697. Now has to be purchased separately (1) K205589 pipe, (1) K205596 breather, (1) K621826 dowel, (1) K626443 gasket, (1) K626901 seal.

1шт.

24

K202171

TUBE

CONNECTING TUBE

1шт.

25

K621738

CLIP

HOSE CLAMP - 1/2" (12.7 mm)

1шт.

26

K202169

HOSE

- 5/8 x 5-5/8" (15.875 x 142.875 mm)

1шт.

27

K622024

CLAMP

HOSE CLAMP - 3/4" (19.05 mm)

2шт.

28

K902765

PIPE

OIL PIPE - cylinder, Serial Range: block-head

1шт.

29

K915630

OUTLET

PIPE - water outlet

1шт.

30

K917962

THERMOSTAT

1шт.

31

K200225

GASKET,0.81mm Thk

1шт.

32

K68951

O-RING,0.103" Thk x 2.112" ID, -138, Cl 5, 75 Duro

-138, 90 Duro, 2.112" ID x .103" Thk (53.975 mm)

1шт.

33

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

2шт.

34

K19481

SPRING WASHER

WASHER - lock, 5/16"

2шт.

35

K623829

PLUG

- 3/8 BSP

1шт.

36

K19500

GASKET

FIBER WASHER - 5/8" (15.875 mm)

1шт.

37

K302026

TEMPERATURE SENDER

SENDER - temperature gauge

1шт.

38

K203464

ADAPTER

ADAPTOR - 5/8 UNF - 1/8 NPT

1шт.

39

86632558

JAM NUT,Jam, 1/2"-13, G5

LOCKNUT - 1/2" UNC

1шт.

40

K626443

WASHER

SEALING WASHER

1шт.

41

K205596

COVER

BREATHER COVER

1шт.

42

K622023

CLAMP

HOSE CLAMP

1шт.

43

K205589

TUBE,0.75" ID x 20" L

BREATHER TUBE

1шт.

44

K920678

COVER

- valve mechanism, Start Serial: 11183587

1шт.

45

K945433

BUSHING

SPACER

1шт.

46

K626901

O-RING,40554" ID x 40575" OD x 0.12"

1шт.

47

K606878

BOLT

1шт.

K260283

KIT, ENGINE TOP GASK

GASKET KIT - cylinder head

1шт.
