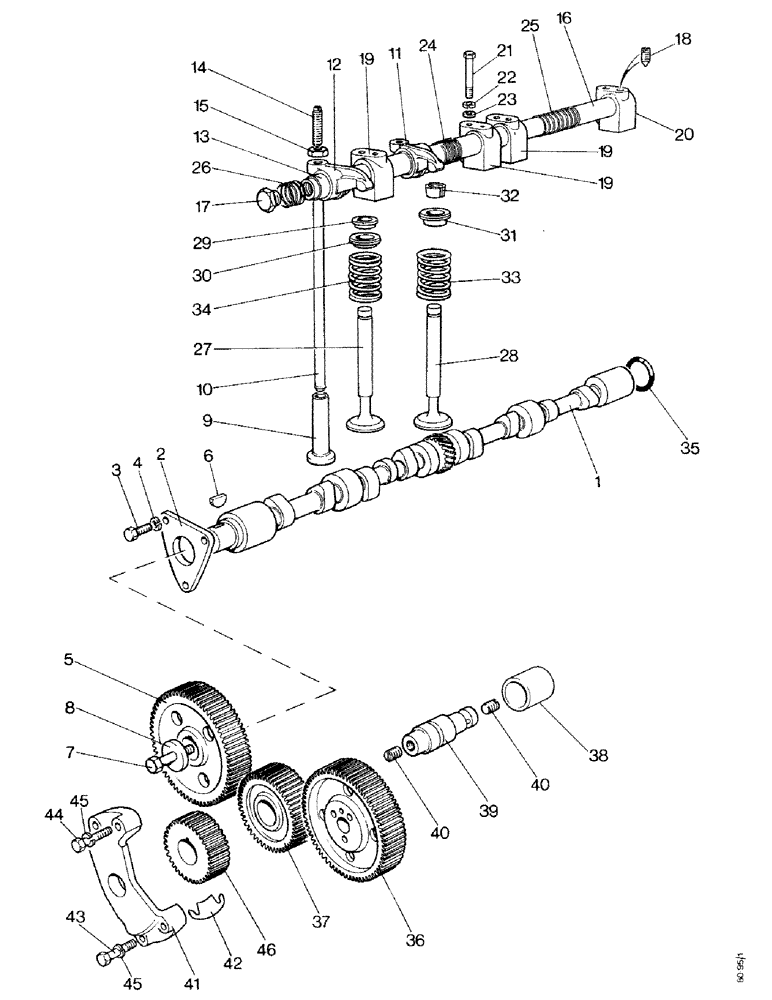

Запчасти Case IH 1490 (A04-1) - VALVE MECHANISM AND TIMING GEARS (01) - ENGINE

1

K921769

CAMSHAFT

1шт.

2

K902015

PLATE

LOCATING PLATE

1шт.

3

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

SETSCREW - 5/16 UNC x 1"

3шт.

4

K19481

SPRING WASHER

WASHER - lock, 5/16"

3шт.

5

K945097

GEAR

- 68 teeth, camshaft

1шт.

6

K19607

KEY

- Woodruff no. 506

1шт.

7

K600700

BOLT

- 7/16 UNC x 2"

1шт.

8

K66382

WASHER

- 7/16" (11.112 mm)

1шт.

9

K901137

TAPPET

8шт.

10

K902035

ROD

PUSH ROD

8шт.

11

K63089

ROCKER

VALVE ROCKER - right-hand, with bushing, no. 2 from front

4шт.

12

K63090

ROCKER

VALVE ROCKER - left-hand, with bushing, no. 1 from front, Includes: Ref. 13

4шт.

13

K964733

BUSHING

- valve rocker

1шт.

14

K900413

ADJUSTMENT SCREW,3/8" - 16 x 1 1/8"

- adjusting

8шт.

15

87016560

JAM NUT,Jam, 3/8"-16, G5

LOCKNUT - 3/8 UNC

8шт.

16

K909622

SHAFT

- rocker

1шт.

17

K19590

PLUG

- 3/8 BSP

2шт.

18

K606051

SET SCREW,5/16" - 18 x 1/2"

LOCATING SCREW - 5/16 UNC

1шт.

19

K921431

BRACKET

- rocker shaft, nos. 1, 2 and 3

3шт.

20

K921432

BRACKET

- rocker shaft, rear

1шт.

21

K600705

BOLT

- 7/16 UNC x 2-5/8"

4шт.

22

K626344

WASHER, LOCK

WASHER - lock 7/16"

4шт.

23

K626314

WASHER

- 7/16" (11.112 mm)

4шт.

24

K11017

SPRING

LOCATING SPRING - intermediate

2шт.

25

K11034

SPRING

LOCATING SPRING - center

1шт.

26

K11018

SPRING

LOCATING SPRING - ends

2шт.

27

K950100

STD EXHAUST VALVE

VALVE - exhaust, standard stem

4шт.

27

K950545

VALVE

- exhaust, 0.010" (0.254 mm) oversize stem

4шт.

27

K950546

VALVE

- exhaust, 0.020" (0.508 mm) oversize stem

4шт.

28

K928622

STD INLET VALVE

VALVE - inlet, standard stem

4шт.

28

K928986

VALVE

- inlet, 0.010" (0.254 mm) oversize stem

4шт.

28

K928987

VALVE

- inlet, 0.020" (0.508 mm) oversize stem

4шт.

29

K928623

COLLAR

- inner, exhaust valve

4шт.

30

K928624

COLLAR

- outer, exhaust valve

4шт.

31

K921437

COLLAR

- inlet valve

4шт.

32

K943439

LOCKING DEVICE

LOCK - valve spring

16шт.

33

K921435

SPRING

- inlet valve

4шт.

34

K921436

VALVE SPRING

SPRING - exhaust valve

4шт.

35

K623523

O-RING,1.802" OD x 0.143" Width

- 1-13/16" (46.038 mm) internal

1шт.

36

K949822

GEAR

DRIVE GEAR - 68 teeth, injection pump

1шт.

37

K946144

GEAR

- intermediate, 47 teeth, with bushing, Includes: Ref. 38

1шт.

38

K628751

BUSHING

1шт.

39

K944136

GEAR SHAFT

SHAFT, intermediate gear, 47 teeth, with bushing, Includes: Ref. 40

1шт.

40

K606221

SCREW

PLUG - 5/16 UNC

2шт.

41

K904073

SUPPORT

BRACKET - intermediate gear support

1шт.

42

K902113

SHIM,.003" Thk

(0.0762 mm), Bracket to cylinder block .003" Thk

1шт.

42

K902114

SHIM,.010" Thk

(0.254 mm), Bracket to cylinder block .010" Thk

1шт.

42

K908713

SHIM,.020" Thk

(0.508 mm), Bracket to cylinder block .020" Thk

1шт.

43

26-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 8

- 5/16 UNC x 1-3/4", bracket to cylinder block (Replaces K955399)

2шт.

44

26-532

BOLT,Hex, 5/16" - 18 x 2", Gr 8

- 5/16 UNC x 2", bracket to cylinder block (Replaces K600325)

2шт.

45

K19481

SPRING WASHER

WASHER - lock, 5/16"

4шт.

46

K945094

GEAR

- crankshaft, 34 teeth

1шт.
