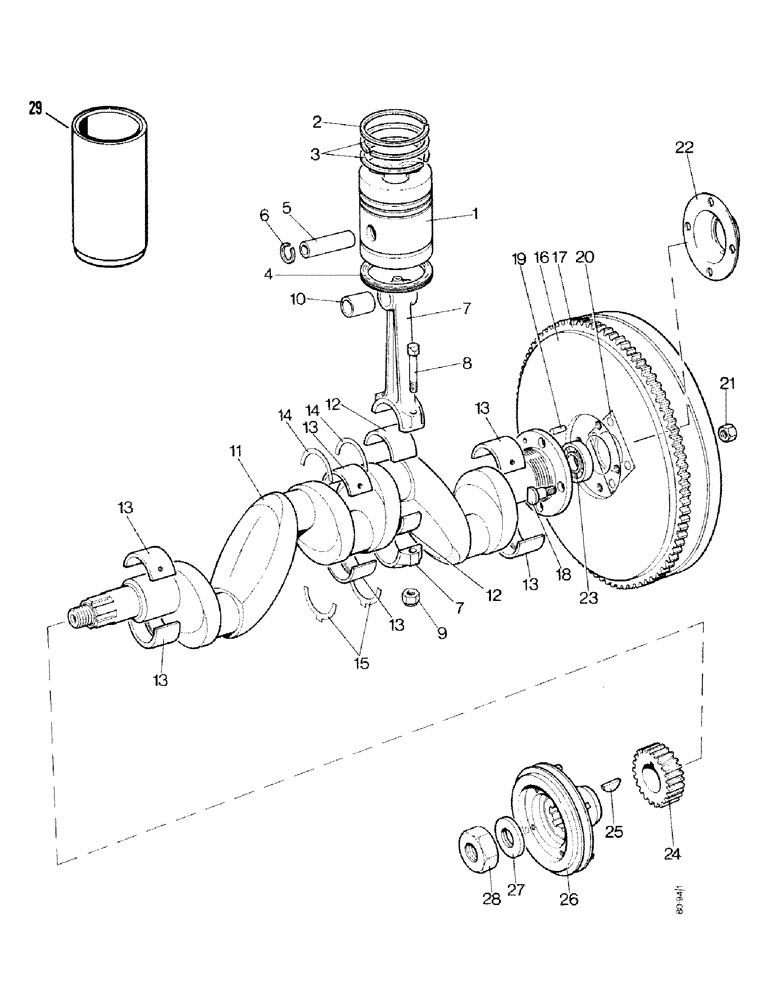

Запчасти Case IH 1490 (A03-1) - PISTONS, CRANKSHAFT AND FLYWHEEL (01) - ENGINE

1

K944573

PISTON & RINGS KIT

PISTON ASSEMBLY - standard, Includes: Ref. 2 - 6

4шт.

2

K943881

RING, PISTON

PISTON RING - no. 1 compression

1шт.

3

K943882

RING, PISTON

PISTON RING - no. 2 and 3 compression

2шт.

4

K917409

SCRAPER

PISTON RING - scraper

1шт.

Could use K261070 for .020 oversized rings.

1шт.

Use kit K261069. Rings not furnished separately.

1шт.

5

K928547

PISTON PIN

1шт.

6

K34501

RING, SNAP

RING - snap, 1-1/4" (31.75 mm) internal

2шт.

1

K946354

PISTON

ASSEMBLY - 0.020" (0.508 mm) oversize, Includes: Ref. 2 - 6

4шт.

2

K943885

RING, PISTON

PISTON RING - no. 1 compression

1шт.

3

K943886

RING, PISTON

PISTON RING - no. 2 and 3 compression

2шт.

4

K917412

PISTON

RING - scraper

1шт.

Could use K261070 for .020 oversized rings.

1шт.

Use kit K261069. Rings not furnished separately.

1шт.

5

K928547

PISTON PIN

1шт.

6

K34501

RING, SNAP

RING - snap, 1-1/4" (31.75 mm) internal

2шт.

K964731

RING

OIL CONTROL RING KIT - standard (One per piston)

4шт.

K964730

RING

OIL CONTROL RING KIT - 0.020" (0.508 mm) oversize (One per piston)

4шт.

7

K923027

PITMAN ASSY.

CONNECTING ROD ASSEMBLY, Includes: Ref. 8 - 10

4шт.

8

K928455

BOLT

- connecting rod

2шт.

9

K623151

LOCK NUT

- 7/16 BSF self-locking

2шт.

10

K31669

BEARING

BUSHING - small end

1шт.

11

K928415

CRANKSHAFT

1шт.

K963415

BEARING

PACK - standard, Includes: Ref. 12 - 15

1шт.

12

K929148

BEARING SET

BEARING - big end, halves

8шт.

One part number equals a set of two halves. Quantity required is half of what is shown.

1шт.

13

K928997

BEARING SET

BEARING - main, halves

6шт.

One part number equals a set of two halves. Quantity required is half of what is shown.

1шт.

14

K928998

WASHER

THRUST WASHER - upper

2шт.

15

K928999

WASHER

THRUST WASHER - lower

2шт.

K964890

BEARING

PACK, 0.010" (0.254 mm) undersize, Includes: Ref. 12 and 13

1шт.

12

K946351

BEARING SET

BEARING - big end, halves

8шт.

One part number equals a set of two halves. Quantity required is half of what is shown.

1шт.

13

K946345

BEARING SET

BEARING - main, halves

6шт.

One part number equals a set of two halves. Quantity required is half of what is shown.

1шт.

K964891

BEARING

PACK - 0.020" (0.508 mm) undersize, Includes: Ref. 12 and 13

1шт.

12

K946352

BEARING SET

BEARING - big end, halves

8шт.

One part number equals a set of two halves. Quantity required is half of what is shown.

1шт.

13

K946346

BEARING SET

BEARING - main, halves

6шт.

One part number equals a set of two halves. Quantity required is half of what is shown.

1шт.

14

K946347

WASHER

THRUST WASHER - upper, 0.005" (0.127 mm) oversize

2шт.

15

K946348

WASHER

THRUST WASHER - lower, 0.005" (0.127 mm) oversize

2шт.

14

K946349

WASHER

THRUST WASHER - upper, 0.020" (0.508 mm) oversize

2шт.

15

K946350

WASHER

THRUST WASHER - lower, 0.020" (0.508 mm) oversize

2шт.

16

K947029

FLYWHEEL

AND STARTER RING ASSEMBLY, Includes: Ref. 17

1шт.

17

K946819

GEAR

STARTER RING

1шт.

18

K903431

STEP BOLT

- 7/16 UNF special, Serial Range: flywheel-crankshaft

4шт.

19

K10629

PIN

DOWEL - 1/2 x 15/16" (12.7 x 23.812 mm), Serial Range: flywheel-crankshaft

1шт.

20

K910883

WASHER

TABWASHER -, Serial Range: flywheel-crankshaft

1шт.

21

K616968

NUT

- 7/16 UNF, Serial Range: flywheel-crankshaft

4шт.

22

K912323

HOUSING

LOCATING DISC

1шт.

23

K19167

BALL BEARING,22.23mm ID x 50.8mm OD x 14.29mm W

1шт.

24

K945094

GEAR

- 34 teeth

1шт.

25

K19608

KEY

- Woodruff no. 606

1шт.

26

K947778

PULLEY

1шт.

27

K626403

WASHER

- 1" (25.4 mm) special

1шт.

28

K623300

NUT

- 1" (25.4 mm) special

1шт.

29

K964857

LINER, ENGINE CYLIND

CYLINDER LINER, 3-15/16" (100.012 mm) bore

4шт.
