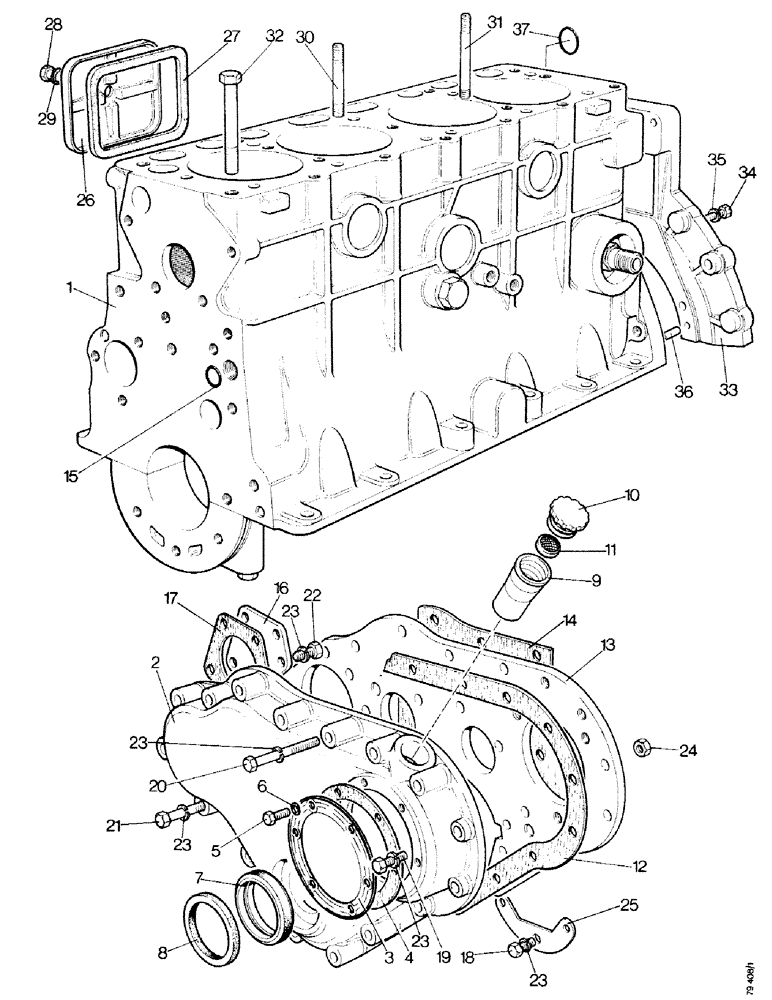

Запчасти Case IH 1490 (A02-1) - CYLINDER BLOCK AND COVERS (01) - ENGINE

1

K965169

BLOCK ASSY.

CYLINDER BLOCK ASSEMBLY - See Figure A1, Includes: Ref. 1 - 11

1шт.

K80062

COVER

TIMING COVER ASSEMBLY, Includes: Ref. 2 - 11

1шт.

2

K944347

COVER

- timing gear, Includes: Ref. 3 - 8

1шт.

3

K302622

COVER

PLATE - inspection

1шт.

4

K204917

GASKET

1шт.

5

K602849

SCREW

SETSCREW - 5/16 UNC x 7/8"

6шт.

6

K19481

SPRING WASHER

WASHER - lock, 5/16"

6шт.

7

K628127

OIL SEAL,52.2mm ID x 73.45mm OD x 9.5mm Thk

OIL SEAL - 2-1/8 x 2-7/8 x 3/8" (53.975 x 73.025 x 9.525 mm)

1шт.

8

K623454

FELT SEAL,54.77mm ID x 73.82mm OD x 3.17mm Thk

FELT SEAL

1шт.

K964748

TUBE

FILLER TUBE - with cap, Includes: Ref. 9 and 10

1шт.

9

K950287

NECK FILLER

TUBE - oil filler

1шт.

10

K948427

CAP

FILLER CAP

1шт.

11

K921678

FILTER

SCREEN

1шт.

12

K920794

GASKET

- cover to carrier plate

1шт.

13

K920867

CARRIER

PLATE

1шт.

14

K206869

GASKET

- plate to block (Replaces K902031)

1шт.

15

K24556

O-RING,0.734" ID x 1.012" OD x 0.139"

- 3/4" (19.05 mm) internal diameter

1шт.

16

K915158

PLATE

BLANKING PLATE - steering pump aperture

1шт.

17

K915157

GASKET

- blanking plate to carrier plate

1шт.

18

K602883

SCREW,5/16" - 18 x 3/4", Gr V

SETSCREW - 5/16 UNC x 3/4"

4шт.

19

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

SETSCREW - 5/16 UNC x 1"

9шт.

20

K600321

BOLT

- 5/16 UNC x 2"

1шт.

21

K600365

BOLT

- 5/16 UNC 1-1/2"

6шт.

22

9627874

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

SETSCREW - 5/16 UNC x 5/8"

1шт.

23

K19481

SPRING WASHER

WASHER - lock, 5/16"

21шт.

24

9635082

NUT,5/16" - 18, Gr 5

- 5/16 UNC

3шт.

25

K902036

GASKET

BAFFLE PLATE

1шт.

26

K10029

COVER

- tappets

2шт.

27

K10030

GASKET

- tappet cover

2шт.

28

K600408

BOLT,3/8" x 2"

- 3/8 UNC x 2"

2шт.

29

K626521

SEALING WASHER

FIBER WASHER - 3/8" (9.525 mm)

2шт.

30

K906538

STUD

- 1/2 UNC - UNF x 4-7/8"

10шт.

31

K608505

STUD,1/2" x 7/16"

STUD - 1/2 UNC - UNF x 5-5/16"

2шт.

32

K600870

BOLT

- 1/2 UNC x 4-1/2", special

7шт.

33

K203093

PLATE

SUPPORT PLATE - starter

1шт.

34

K602906

SCREW

SETSCREW - 3/8 UNC x 1-1/4"

6шт.

35

K19482

SPRING WASHER

WASHER - lock 3/8"

6шт.

36

K12258

PIN

DOWEL - 5/16 x 3/4" (7.938 x 19.05 mm)

2шт.

37

K623523

O-RING,1.802" OD x 0.143" Width

- 1-13/16" (46.038 mm) internal diameter, camshaft rear bearing

1шт.

K260282

GASKET

- cylinder block

1шт.
