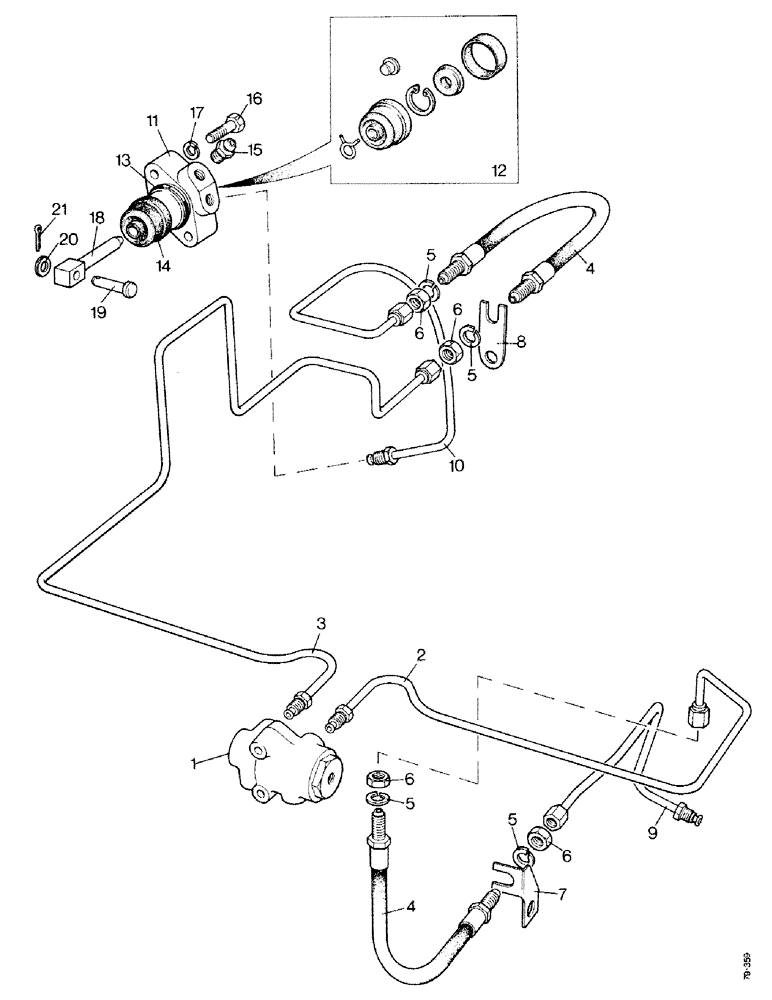

Запчасти Case IH 1490 (J08-1) - BRAKE PIPES AND SLAVE CYLINDERS, HIGH PLATFORM, CAB MODEL (5.1) - BRAKES

1

K957107

VALVE

BALANCE VALVE - see Figure J06-1

1шт.

2

K305955

BRAKE,6 mm DIA.

PIPE - left-hand, balance valve to flexible pipe (Replaces K30127)

1шт.

3

K305956

PIPE,6 mm DIA.

- right-hand, balance valve to flexible pipe (Replaces K302098)

1шт.

4

K957164

HOSE,11.023" L

PIPE - flexible

2шт.

5

K626345

LOCK WASHER

WASHER - lock, 12 mm

4шт.

6

K652100

LOCK NUT

LOCKNUT - M12

4шт.

7

K301428

CLIP,ELECTRICAL

CLIP - left-hand

1шт.

8

K302118

BRAKE

CLIP - right-hand

1шт.

9

K301277

PIPE

- left-hand, flexible pipe to slave cylinder

1шт.

10

K302096

PIPE

- right-hand, flexible pipe to slave cylinder

1шт.

11

K201826

CYLINDER

SLAVE CYLINDER, Includes Ref. 12 - 15

2шт.

12

K965765

KIT

- seals, mineral oil (Girling MIN 18)

1шт.

13

K628876

O-RING,1.443" ID x 0.073" Width

1шт.

14

K965764

SEAL

COVER - rubber (Girling 73670122)

1шт.

15

K964534

SCREW,M12 x 1

- air removal, M12

1шт.

16

K600365

BOLT

SETSCREW - 5/16 UNC x 1-1/2"

4шт.

17

K19481

SPRING WASHER

WASHER - lock, 5/16"

4шт.

18

K203380

ROD

PUSH ROD

2шт.

19

K950152

PIN

CLEVIS PIN - 5/16 x 1-5/8" (7.938 x 41.275 mm)

2шт.

20

K626682

WASHER

- 5/16" (7.938 mm)

4шт.

21

K11933

PIN

- cotter, 1/8 x 5/8" (3.175 x 15.875 mm)

2шт.
