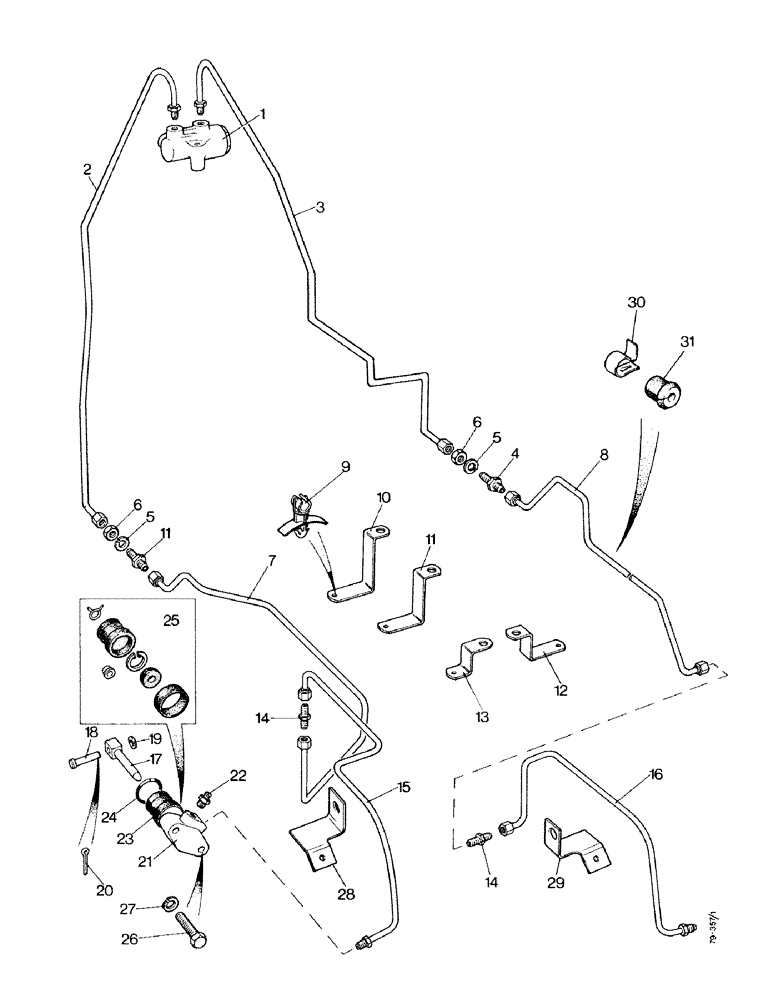

Запчасти Case IH 1490 (J06-1) - BRAKE PIPES AND SLAVE CYL. FOR TRAC., W/ DISC BRAKES, LOW PROFILE SYNCROMESH, LOW PROFILE PWR-SHIFT (5.1) - BRAKES

1

K957107

VALVE

BALANCE VALVE

1шт.

2

K302635

PIPE

- balance valve to connector, left-hand, Start Serial: 11182354

1шт.

2

K301249

BRAKE

PIPE - balance valve to connector, left-hand, Serial Range: -11182354

1шт.

3

K302634

PIPE

- balance valve to connector, right-hand, Start Serial: 11182354

1шт.

3

K301252

BRAKE,6 mm DIA.

PIPE - balance valve to connector, right-hand, Serial Range: -11182354

1шт.

4

K301280

FITTING

CONNECTOR - M12

2шт.

5

K651850

SPRING

WASHER - lock, 12 mm

2шт.

6

K652100

LOCK NUT

LOCKNUT - M12

2шт.

7

K301250

BRAKE

PIPE - connector to union, left-hand

1шт.

8

K301253

BRAKE

PIPE - connector to union, right-hand

1шт.

9

K625023

CLIP

- 6 mm, Start Serial: 11182354

2шт.

9

K625008

CLIP

- plastic

6шт.

10

K301454

BRACKET

- pipe to gearbox cover (Low Profile Power-Shift)

2шт.

11

K301453

BRACKET

- pipe to gearbox cover (Low Profile Power-Shift)

2шт.

12

K302067

BRACKET

- pipe to gearbox cover (Low Profile Synchromesh)

4шт.

13

K302506

BRACKET

- pipe to rear axle

2шт.

14

K626084

FITTING

UNION - M12

2шт.

15

K302129

PIPE

- left-hand, union to slave cylinder

1шт.

K304998 after S/N 1184462

1шт.

16

K302130

PIPE

- right-hand, union to slave cylinder

1шт.

K304999 after S/N11184462

1шт.

17

K203380

ROD

PUSH ROD

2шт.

18

K950152

PIN

CLEVIS PIN - 5/16 x 1-5/8" (7.938 x 41.275 mm)

2шт.

19

K626682

WASHER

- 5/16" (7.938 mm)

4шт.

20

K11933

PIN

- cotter, 1/8 x 5/8" (3.175 x 15.875 mm)

2шт.

21

K201826

CYLINDER

SLAVE CYLINDER - (Girling 73067050), Includes Ref. 22 - 25

2шт.

22

K964534

SCREW,M12 x 1

- air removal

1шт.

23

K965764

SEAL

COVER - rubber

1шт.

24

K628876

O-RING,1.443" ID x 0.073" Width

1шт.

25

K965765

KIT

- seals, mineral oil (Girling MIN 18)

1шт.

26

K600365

BOLT

SETSCREW - 5/16 UNC x 1-1/2"

4шт.

27

K19481

SPRING WASHER

WASHER - lock, 5/16"

4шт.

28

K302704

BRACKET

- pipe to final drive, left-hand, Start Serial: 11182354

1шт.

29

K302687

BRACKET

- pipe to final drive, right-hand, Start Serial: 11182354

1шт.

30

K621735

CLIP

SPRING CLAMP - pipes to fuel tank straps, Start Serial: 11182354

4шт.

31

K627716

GROMMET

- tank straps, Start Serial: 11182354

4шт.
