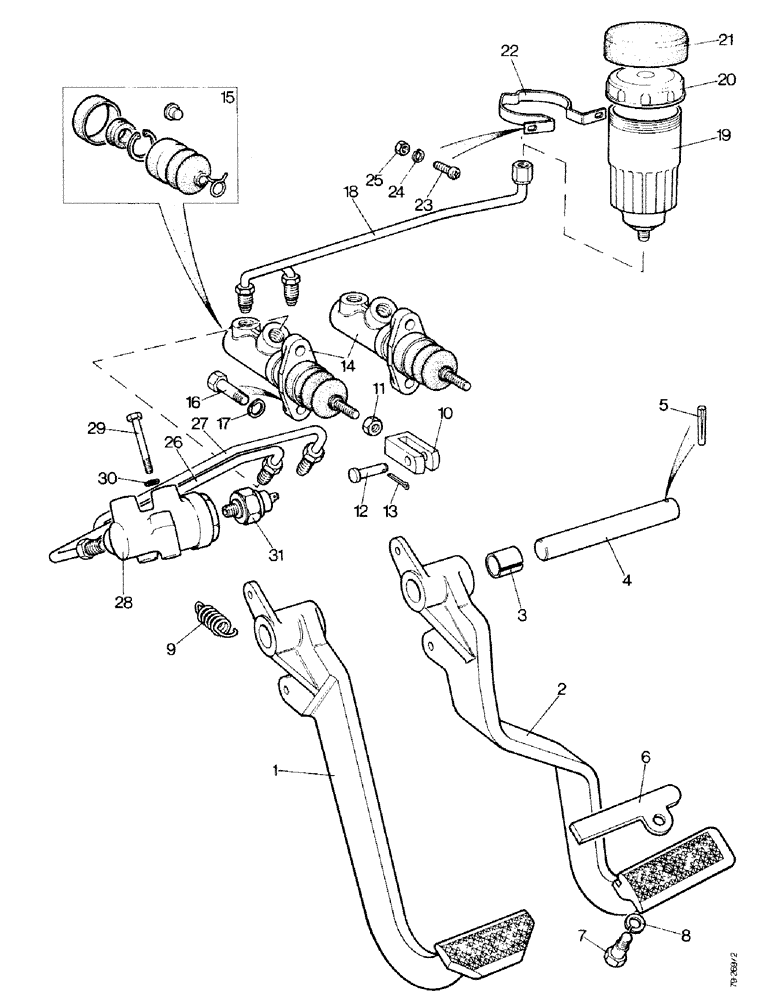

Запчасти Case IH 1490 (J04-1) - BRAKE PEDALS, MASTER CYLINDERS AND BALANCE VALVE, LOW PROFILE, PRIOR TO P.I.N. 11182354 (5.1) - BRAKES

1

K965777

BRAKE

PEDAL - left-hand

1шт.

2

K965776

BRAKE

PEDAL - right-hand, Includes Ref. 3

1шт.

3

K628764

BUSHING

- pedals

4шт.

4

K202055

PIN

PIVOT PIN

1шт.

5

K19552

GROOVED PIN,1/8" x 1 1/8", Type A

Pin, Grooved, (3.175 x 28.575 mm) 1/8" x 1 1/8", Type A

1шт.

6

K948974

LATCH

LOCKING LATCH - pedals

1шт.

7

K600500

SCREW

BOLT - 3/8 UNC, special

1шт.

8

K626700

WASHER

- lock, 3/8"

1шт.

9

K624969

SPRING

RETURN SPRING

2шт.

10

K622205

FORK

END - 5/16 UNC

2шт.

11

425-115

NUT,5/16"-24, G5

- 5/16 UNC

2шт.

12

K625954

PIN

CLEVIS PIN - 5/16 x 1-3/16" (7.938 x 30.162 mm)

2шт.

13

K623605

PIN

- cotter, 1/16 x 1/2" (1.588 x 12.7 mm)

2шт.

14

K950544

CYLINDER,36.32mm Stroke

MASTER CYLINDER - (Girling 73067017), Includes Ref. 15

2шт.

15

K964572

SEAL KIT

- seals, mineral oil

2шт.

16

K650643

BOLT

SETSCREW - M8 x 25, Serial Range: cylinders-cab

4шт.

17

K651848

WASHER

- lock, 8 mm, Serial Range: cylinders-cab

4шт.

18

K302043

PIPE

- reservoir to master cylinders

1шт.

19

K951526

RESERVOIR

Includes Ref. 20 and 21

1шт.

20

K964488

CAP

FILLER CAP

1шт.

21

K964813

COVER

- blue

1шт.

22

K200671

SPRING

CLAMP

1шт.

23

86625206

SCREW,Phillips Drive, Pan HD, #10 - 32 x 1/2"

SETSCREW - no. 10 UNF x 1/2"

1шт.

24

K626340

RING

WASHER - lock 3/16"

1шт.

25

K617080

NUT

- no. 10 UNF

1шт.

26

K301247

BRAKE

PIPE - master cylinder to balance valve, left-hand

1шт.

27

K301248

BRAKE

PIPE - master cylinder to balance valve, right-hand

1шт.

28

K957107

VALVE

BALANCE VALVE - (Girling 73067064)

1шт.

29

K650634

BOLT

- M6 x 50, Serial Range: valve-bracket

2шт.

30

K651847

WASHER, LOCK

WASHER - lock, 6 mm, Serial Range: valve-bracket

2шт.

31

K951976

LIGHT SWITCH

SWITCH - stop lamps (Lucas 30874A)

1шт.
