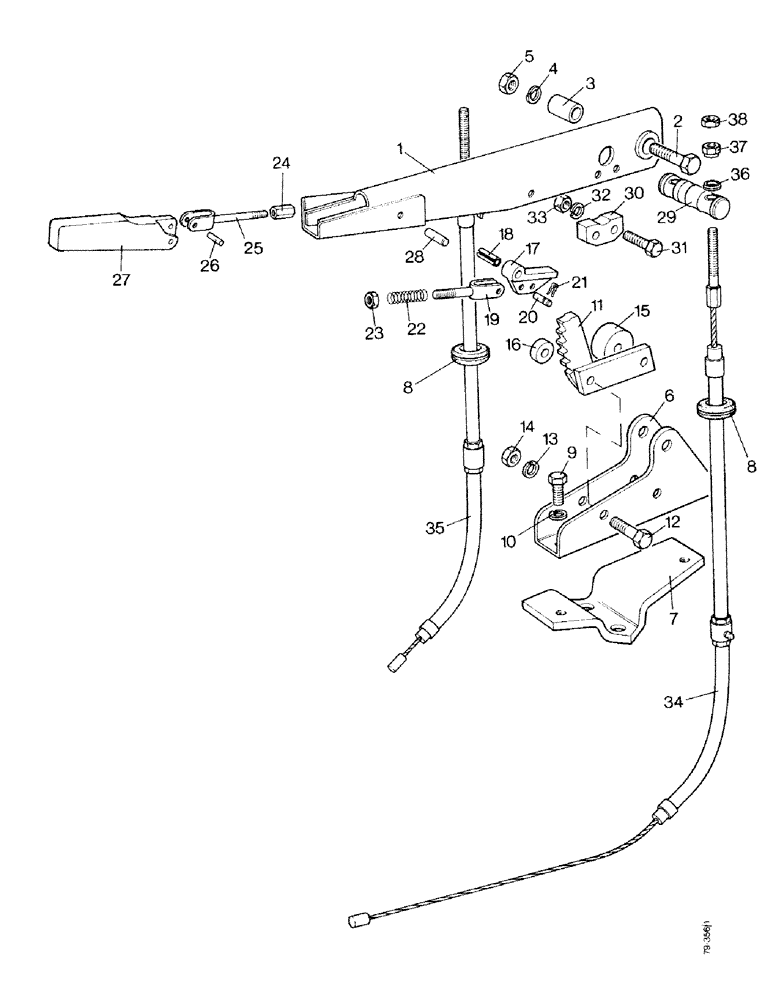

Запчасти Case IH 1490 (J03-1) - HAND BRAKE LEVER, LOW PROFILE, HIGH PLATFORM, CAB MODEL (5.1) - BRAKES

1

K955643

LEVER

HAND LEVER

1шт.

2

K600526

BOLT

- 3/8 UNC x 1-7/8", hand, Serial Range: lever-bracket

1шт.

3

K627052

BUSHING

SPACER - hand, Serial Range: lever-bracket

1шт.

4

K19482

SPRING WASHER

WASHER - lock, 3/8", hand, Serial Range: lever-bracket

1шт.

5

280136

NUT,3/8"-16, G8

1шт.

6

K955244

BRACKET

- hand lever (Replaces K954826)

1шт.

7

K949506

SHIM

RETAINING PLATE

1шт.

8

K653150

GROMMET

- brake cables

2шт.

9

K602845

BOLT,Hex Hd, 5/16"-18 x 3/4"

SETSCREW - 5/16 UNC x 3/4", bracket to plate

2шт.

10

K19481

SPRING WASHER

WASHER - lock, 5/16", Serial Range: bracket-plate

2шт.

11

K200242

RATCHET

1шт.

12

K600369

BOLT

- 5/16 UNC x 1-3/4", special, ratchet to support bracket

2шт.

13

K19481

SPRING WASHER

WASHER - lock, 5/16", ratchet to support bracket

2шт.

14

9635082

NUT,5/16" - 18, Gr 5

- 5/16 UNC, ratchet to support bracket

2шт.

15

K627109

BUSHING

SPACER - 1-1/8" (28.575 mm) ratchet to support bracket

1шт.

16

K627110

BUSHING

SPACER - 3/4" (19.05 mm) ratchet to support bracket

1шт.

17

K200038

PAWL

1шт.

18

K623924

SPRING

PIN - 1/4 x 7/8" (6.35 x 22.225 mm)

1шт.

19

K950033

ROD

PULL ROD - short

1шт.

20

K949499

PIN

- grooved

1шт.

21

K621572

RING, SNAP

PIN - cotter

1шт.

22

K625099

SPRING

1шт.

23

K617080

NUT

- no. 10 UNF

2шт.

24

K617297

NUT

ADJUSTING SLEEVE - no. 10 UNF

1шт.

25

K950033

ROD

PULL ROD - long

1шт.

26

K949498

PIN

- plain

1шт.

27

K950026

LEVER

RELEASE LEVER

1шт.

28

K623773

PIN

- 3/16 x 7/8" (4.762 x 22.225 mm)

1шт.

29

K949501

BAR

BALANCE BAR

1шт.

30

K949502

SUPPORT

BLOCK

1шт.

31

K602739

SCREW

SETSCREW - 1/4 UNC x 1-1/8", block to hand lever

2шт.

32

K626341

SPRING WASHER

WASHER - lock, 1/4", block to hand lever

2шт.

33

K607043

NUT

- 1/4 UNC, block to hand lever

2шт.

34

K949505

BRAKE

CABLE - inner and outer, left-hand (Low Profile)

1шт.

35

K949504

BRAKE

CABLE - inner and outer, right-hand (Low Profile)

1шт.

34

K953948

CABLE

- inner and outer, left-hand (High Platform, Cab Model)

1шт.

35

K950221

BRAKE

CABLE - inner and outer, right-hand (High Platform, Cab Model)

1шт.

36

K949503

WASHER

SPHERICAL WASHER - 5/16" (7.938 mm)

2шт.

37

K617285

SPECIAL NUT

- 5/16 UNF, special

2шт.

38

K622807

NUT

LOCKNUT - 5/16 UNF

2шт.
