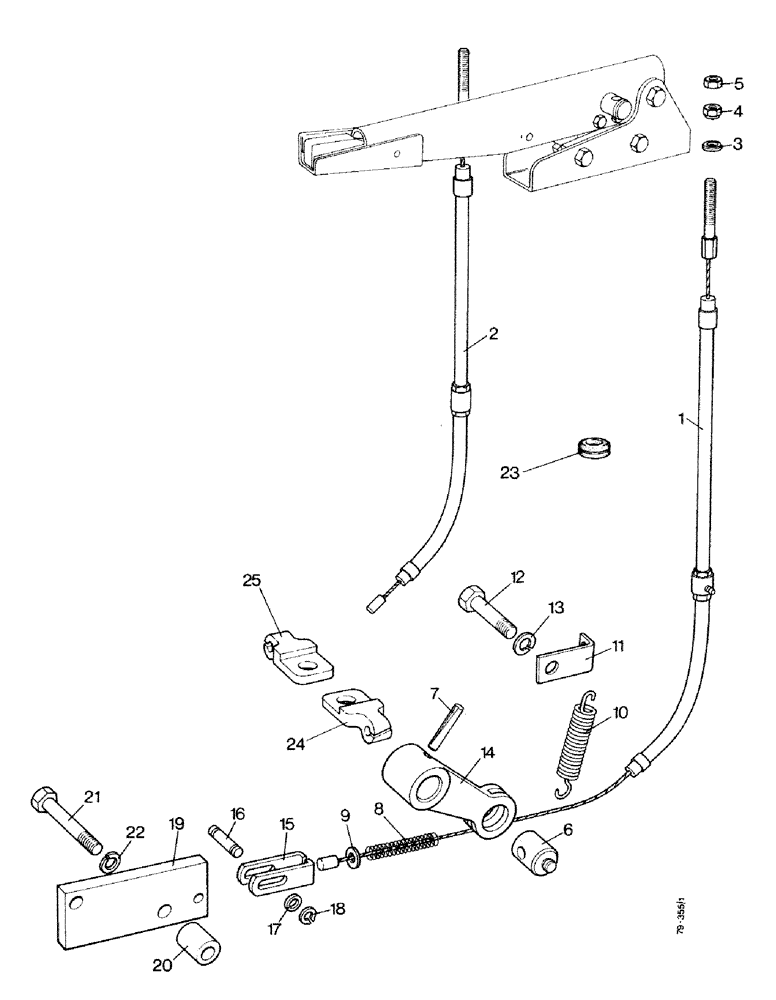

Запчасти Case IH 1490 (J02-1) - LINKAGE FOR HAND BRAKE, LOW PROFILE, HIGH PLATFORM, CAB MODEL (5.1) - BRAKES

1

K949505

BRAKE

CABLE - inner and outer, left-hand (Low Profile)

1шт.

1

K953948

CABLE

- inner and outer, left-hand (High Platform, Cab Model)

1шт.

Ref. 1B - K205723 Brake Cable L.H. for High Clear Units

1шт.

2

K949504

BRAKE

CABLE - inner and outer, right hand (Low Profile)

1шт.

2

K950221

BRAKE

CABLE - inner and outer, right-hand (High Platform, Cab Model)

1шт.

Ref. 2B - K205724 Brake Cable R.H. for High Clear Units

1шт.

3

K949503

WASHER

SPHERICAL WASHER - 5/16" (7.938 mm)

2шт.

4

K617285

SPECIAL NUT

- 5/16 UNF, special

2шт.

5

K622807

NUT

LOCKNUT - 5/16 UNF

2шт.

6

K950216

PIN

2шт.

7

K19566

PIN

- 3/8 x 1-3/4" (9.525 x 44.45 mm)

2шт.

8

K625259

SPRING

- cables

2шт.

9

K626911

WASHER

- 5/16" (7.938 mm) special

2шт.

10

K624927

SPRING

RETURN SPRING - tractors with disc brakes

2шт.

11

K954736

SPRING

BRACKET - return spring, tractors with disc brakes

2шт.

12

K608828

BOLT

- 1/2 UNC x 2-1/2", tractors with disc brakes

2шт.

13

K626345

LOCK WASHER

WASHER - lock, 1/2", tractors with disc brakes

2шт.

14

K950211

LEVER

- brake spindle, tractors with disc brakes

2шт.

15

K949523

FORK

END - tractors with disc brakes

2шт.

16

K949552

PIN

- 5/16 x 1-1/4" (7.938 x 31.75 mm) tractors with disc brakes

2шт.

17

K626682

WASHER

- 5/16" (7.938 mm) tractors with disc brakes

4шт.

18

K621482

RING, SNAP

RING - snap, 5/16" (7.938 mm) external, tractors with disc brakes

4шт.

19

K954758

PLATE

BRACKET - cables, tractors with disc brakes

2шт.

20

K627108

BUSHING

SPACER - 1-3/16" (30.162 mm) tractors with disc brakes

4шт.

21

K608836

BOLT

- 1/2 UNC x 4", tractors with disc brakes

4шт.

22

K626354

WASHER - lock, 1/2", tractors with disc brakes

4шт.

23

K653150

GROMMET

- cables to cross box (Low Profile)

2шт.

24

K948983

BRACKET

ANCHOR - left-hand cable, tractors with drum brakes, not North America (Low Profile)

1шт.

25

K948982

BRACKET

ANCHOR - right-hand cable, tractors with drum brakes, not North America (Low Profile)

1шт.
