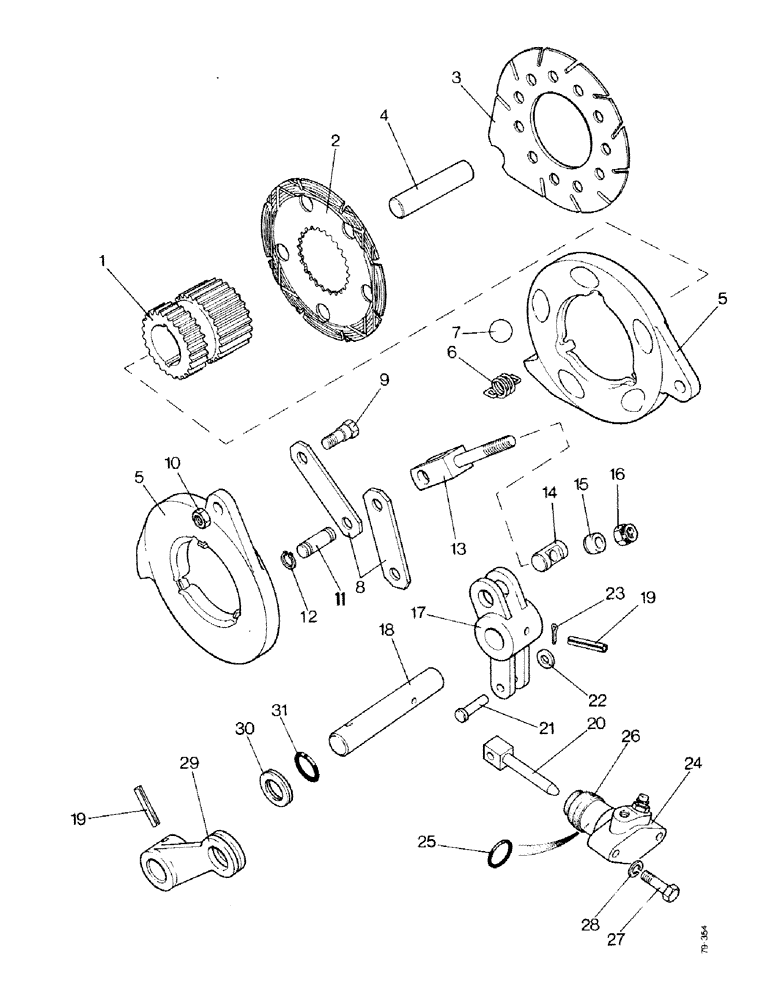

Запчасти Case IH 1490 (J01-1) - DISC BRAKE MECHANISM (5.1) - BRAKES

1

K947582

HUB

- brake discs

2шт.

2

K202905

DISC

ROTATING DISC - 7" (177.8 mm) diameter (Girling 72230118)

12шт.

3

K200550

BRAKE DISC

STATIONARY DISC - 7" (177.8 mm) diameter (Girling 64322031) (Replaces K20050)

8шт.

4

K940860

SHAFT

PIN - stationary discs

2шт.

5

K954738

LEVER

ACTUATING ASSEMBLY - (Girling 64322316), Includes Ref. 6 - 10

2шт.

6

K965862

SPRING

- (Girling 64325327)

6шт.

7

K963645

BALL

STEEL BALL - (Girling 64150456)

10шт.

8

K965865

LEVER

ACTUATING LEVER - (Girling 64326580)

4шт.

9

K965866

BOLT

- special (Girling 64325325)

4шт.

10

K965864

NUT

- special (Girling 6410050)

4шт.

11

K947593

PIN

PIVOT PIN

2шт.

12

K11302

RING, SNAP

RING - snap 1/2" (12.7 mm) external

4шт.

13

K947591

STUD

ROD AND FORK

2шт.

14

K947596

PIN

2шт.

15

K627016

BUSHING

SPACER

2шт.

16

K617374

NUT

- 3/8 UNF, self-locking

2шт.

17

K201681

LEVER

2шт.

18

K200305

SHAFT

2шт.

19

K19566

PIN

- 3/8 x 1-3/4" (9.525 x 44.45 mm)

4шт.

20

K203380

ROD

PUSH ROD

2шт.

21

K950152

PIN

CLEVIS PIN - 5/16 x 1-5/8" (7.938 x 41.275 mm)

2шт.

22

K626682

WASHER

- 5/16" (7.938 mm)

4шт.

23

K11933

PIN

- cotter, 1/8 x 5/8" (3.175 x 15.875 mm)

2шт.

24

K201826

CYLINDER

SLAVE CYLINDER - see Figure J6, Includes Ref. 25 and 26

2шт.

25

K628876

O-RING,1.443" ID x 0.073" Width

- 1" (25.4 mm) internal diameter

2шт.

26

K965764

SEAL

RUBBER COVER

2шт.

27

K600365

BOLT

SETSCREW - 5/16 UNC x 1-1/2"

4шт.

28

K19481

SPRING WASHER

WASHER - lock, 5/16"

4шт.

29

K950211

LEVER

OPERATING LEVER

2шт.

30

K85417

SEAL

DIRT SEAL

2шт.

31

K623762

O-RING,0.99" ID x 0.147" Width

O-RING

2шт.
