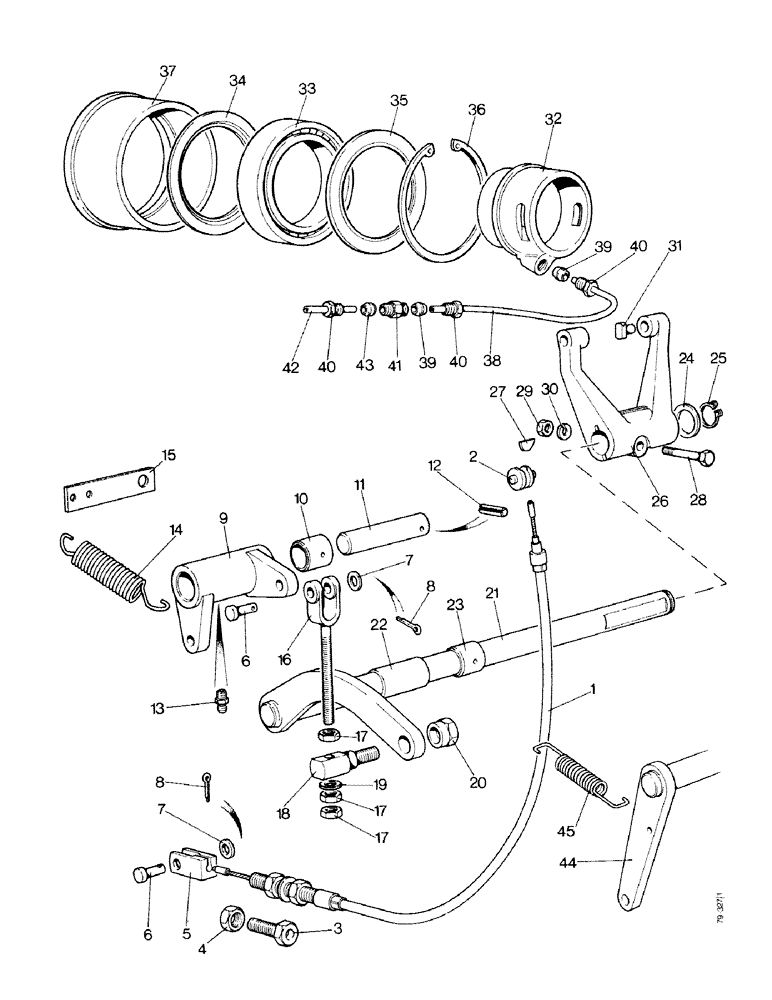

Запчасти Case IH 1490 (C07-1) - PTO CLUTCH RELEASE MECHANISM, LOW PROFILE, HIGH PLATFORM, CAB MODEL (03.1) - CLUTCH

1

K204769

CABLE,676.27mm L

- inner and outer (Low Profile)

1шт.

1

K204856

CABLE

- inner and outer, (High Platform, Cab Model), Start Serial: 11182401

1шт.

2

K955644

RETAINER

PIN

1шт.

3

K204593

ADAPTER

ADJUSTER - 5/8 UNC, early tractors

1шт.

4

425-1410

JAM NUT,Jam, 5/8"-11, G5

LOCKNUT - 5/8 UNC, early tractors

1шт.

5

K622207

FORK

1шт.

6

K69984

SPLIT PIN/SAFETY PIN

CLEVIS PIN (Low Profile)

2шт.

6

K69984

SPLIT PIN/SAFETY PIN

CLEVIS PIN (High Platform, Cab Model)

1шт.

7

K19472

WASHER

- 3/8" (9.525 mm) (Low Profile)

2шт.

7

K19472

WASHER

- 3/8" (9.525 mm) (High Platform, Cab Model)

1шт.

8

K623607

PIN

- cotter 3/32 x 3/4" (2.381 x 19.05 mm) (Low Profile)

2шт.

8

K623607

PIN

- cotter 3/32 x 3/4" (2.381 x 19.05 mm) (High Platform, Cab Model)

1шт.

9

K205033

BUZZER

BELL CRANK LEVER (Low Profile)

1шт.

10

K628753

BUSHING

(Low Profile)

2шт.

11

K202364

PIN

PIVOT PIN (Low Profile)

1шт.

12

K19565

PIN - 3/16 x 1-5/8" (4.762 x 41.275 mm) (Low Profile)

1шт.

13

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF (Low Profile) 1/4"-28 NPT x .54" lg

1шт.

14

K624977

SPRING

RETURN SPRING (Low Profile)

1шт.

15

K204918

SHIM

ANCHOR - return spring (Low Profile)

1шт.

16

K203453

ROD

(Low Profile)

1шт.

17

87016560

JAM NUT,Jam, 3/8"-16, G5

LOCKNUT - 3/8 UNC (Low Profile)

3шт.

18

K201720

PIN

PIVOT PIN - 1/2 UNC (Low Profile)

1шт.

19

K626686

WASHER

- 3/8 " (9.525 mm) (Low Profile)

1шт.

20

232-1416

LOCK NUT,3/8"-16, GC

NUT - 1/2 UNC, self-locking (Low Profile)

1шт.

21

K204688

CLUTCH

CROSS SHAFT AND ARM (Low Profile)

1шт.

22

K627171

BUSHING

SPACER

1шт.

23

K628753

BUSHING

- main frame

4шт.

24

K626749

WASHER

BELLEVILLE WASHER - 1" (25.4 mm)

1шт.

25

K11128

CIRCLIP

RING - snap 1" (25.4 mm) external

1шт.

26

K928940

FORK

CLUTCH FORK

1шт.

27

K19612

KEY

- Woodruff no. 608

2шт.

28

K600476

BOLT

- 3/8 UNC x 1-3/4"

1шт.

29

280136

NUT,3/8"-16, G8

1шт.

30

K19482

SPRING WASHER

WASHER - lock - 3/8"

1шт.

31

K84748

TRUNNION

PIN - clutch fork

2шт.

32

K928939

CARRIER

- release bearing

1шт.

33

K19177

BALL BEARING,76.2mm ID x 114.3mm OD x 19.05mm W

RELEASE BEARING

1шт.

34

K928741

RETAINER,76.33mm ID x 111.13mm OD x 0.79mm Thk

SHIELD - front

1шт.

35

K928742

RETAINER

SHIELD - rear

1шт.

36

K12777

RING, SNAP

RING - snap 4-1/2" (114.3 mm) internal

1шт.

37

K928938

SLEEVE,104.78mm ID x 139.7mm OD x 55.56mm L

THRUST PLATE

1шт.

38

K926410

TUBE,0.122" ID x 0.187" OD

PLASTIC TUBE

1шт.

39

K622407

FERRULE

SLEEVE - 3/16" (4.762 mm)

2шт.

40

K617956

NUT

TUBING NUT

3шт.

41

K626045

FITTING

UNION

1шт.

42

K926411

TUBE,0.187" OD x 2.625" L

1шт.

43

K622407

FERRULE

SLEEVE - 3/16" (4.762 mm)

1шт.

44

K204062

CLUTCH

CROSS SHAFT AND ARM (High Platform, Cab Model)

1шт.

45

K624954

SPRING

RETURN SPRING (High Platform, Cab Model)

1шт.
