Запчасти Case IH 1490 (C06-1) - HAND LEVER FOR PTO CLUTCH, LOW PROFILE, HIGH PLATFORM, CAB MODEL (03.1) - CLUTCH

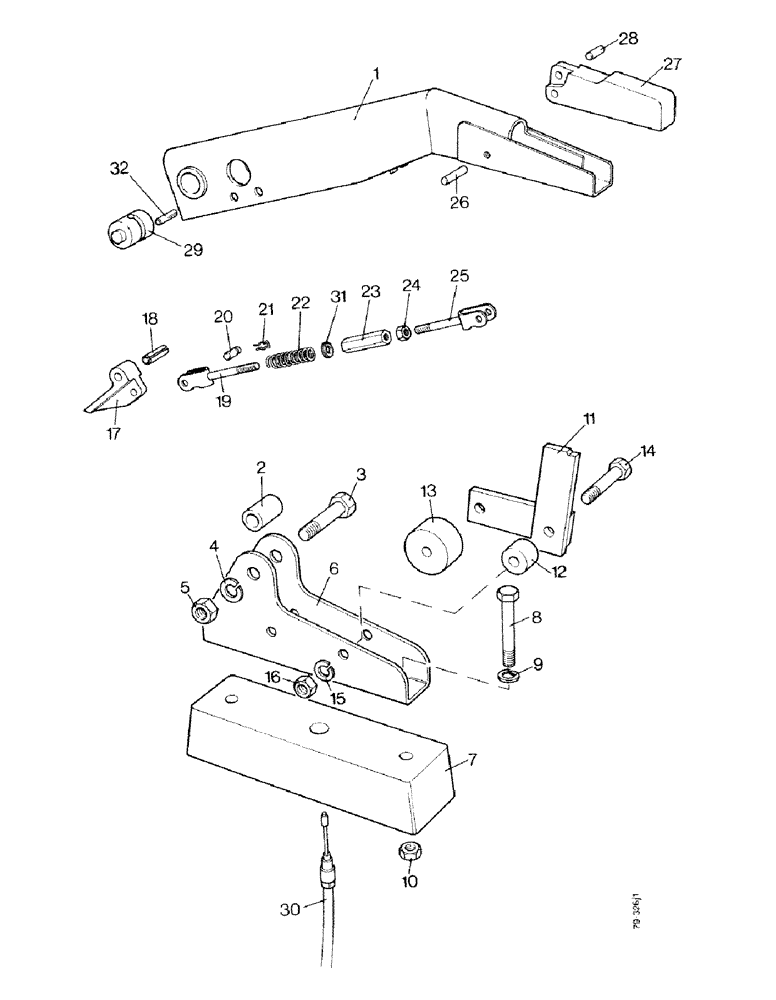

Схема запчастей Case IH 1490 - (C06-1) - HAND LEVER FOR PTO CLUTCH, LOW PROFILE, HIGH PLATFORM, CAB MODEL (03.1) - CLUTCH
18
29
22
9
27
28
6
4
23
21
11
20
31
10
30
17
2
13
3
14
25
5
32
15
16
12
19
26
1
8
7
24

Артикул

Название

Примечание

Количество

1

K203579

LEVER

HAND LEVER

1шт.

2

K627052

BUSHING

SPACER

1шт.

3

K600526

BOLT

- 3/8 UNC x 1-7/8"

1шт.

4

K19482

SPRING WASHER

WASHER - lock - 3/8"

1шт.

5

280136

NUT,3/8"-16, G8

1шт.

6

K954826

INJECTOR ASSY.

SUPPORT BRACKET - hand lever

1шт.

7

K203545

BUSHING

SPACER (High Platform, Cab Model)

1шт.

8

K600370

BOLT

SETSCREW - 5/16 UNC x 2-1/4" (High Platform, Cab Model)

2шт.

8

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

SETSCREW - M8 x 20 (Low Profile)

2шт.

9

K19481

SPRING WASHER

WASHER - lock - 5/16" (High Platform, Cab Model)

2шт.

9

K651848

WASHER

- lock - 8 mm (Low Profile)

2шт.

10

9635082

NUT,5/16" - 18, Gr 5

- 5/16 UNC (High Platform, Cab Model)

2шт.

11

K955645

RATCHET

1шт.

12

K627110

BUSHING

SPACER

1шт.

13

K627109

BUSHING

SPACER

1шт.

14

K600369

BOLT

- 3/8 UNC x 1-3/4"

2шт.

15

K19481

SPRING WASHER

WASHER - lock - 3/8"

2шт.

16

9635082

NUT,5/16" - 18, Gr 5

- 3/8 UNC

2шт.

17

K200038

PAWL

1шт.

18

K623924

SPRING

PIN - 1/4 x 7/8" (6.35 x 22.225 mm)

1шт.

19

K950033

ROD

PULL ROD - short

1шт.

20

K949499

PIN

- grooved, 3/16 x 1/2" (4.762 x 12.7 mm)

1шт.

21

K621572

RING, SNAP

PIN - cotter, 3/16" (4.762 mm) external

1шт.

22

K625099

SPRING

- pull rod

1шт.

23

K617297

NUT

ADJUSTING SLEEVE - no. 10 UNF

1шт.

24

K617080

NUT

- no. 10 UNF

1шт.

25

K203269

ROD

PULL ROD - long (Low Profile)

1шт.

26

K949498

PIN

- 3/16 x 7/8" (4.762 x 12.7 mm)

1шт.

27

K950026

LEVER

RELEASE LEVER

1шт.

28

K623773

PIN

- 3/16 x 7/8" (4.762 x 22.225 mm)

1шт.

29

K955644

RETAINER

CONNECTING PIN -, Serial Range: cable-lever

1шт.

30

K204769

CABLE,676.27mm L

- inner and outer (Low Profile)

1шт.

30

K204769

CABLE,676.27mm L

- inner and outer (High Platform, Cab Model)

1шт.

31

K626310

WASHER

- 3/16" (4.762 mm)

1шт.

32

K24871

GROOVED PIN,1/8" x 1/2", Type D

Pin, Grooved, (3.175 x 12.7 mm) 1/8" x 1/2", Type D

1шт.

Выбрано товаров: 35
