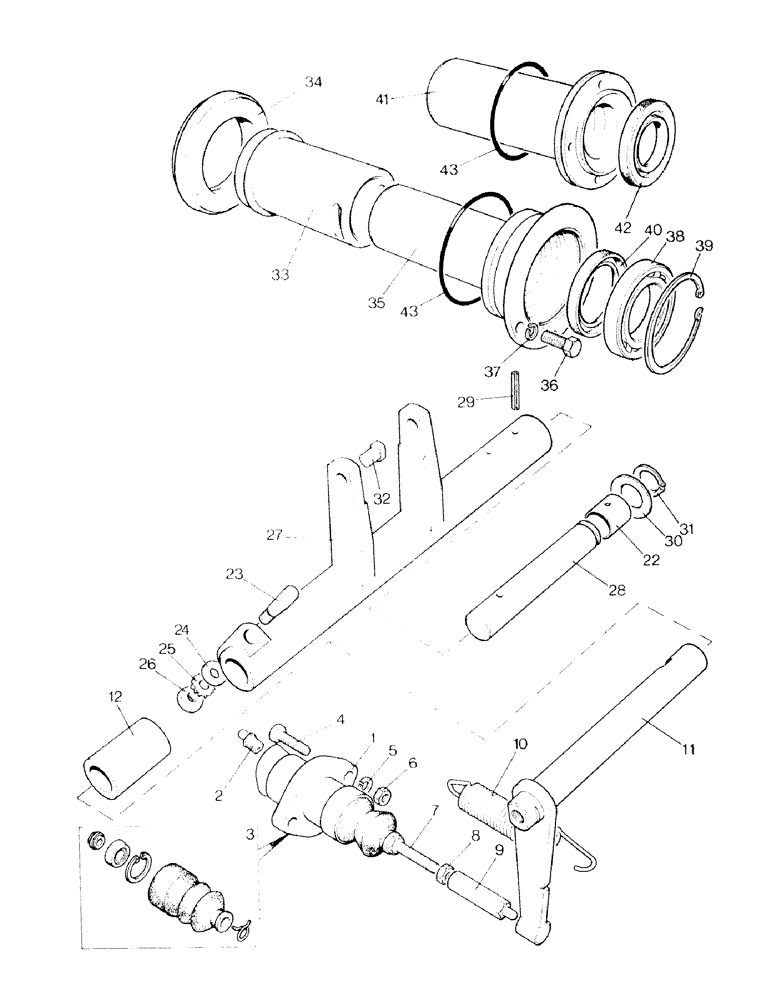

Запчасти Case IH 1490 (C05-1) - TRANS. CLUTCH RELEASE MECHANISM, MECHANICAL COMPONENTS SYNCROMESH LOW PROFILE, PWR SHIFT LOW PROFILE (03.1) - CLUTCH

1

K950550

CYLINDER

SLAVE CYLINDER - (Girling 73070023), Includes: Ref. 2 and 3

1шт.

2

K964534

SCREW,M12 x 1

- air removal, M12

1шт.

3

K964535

HITCH ASSY

KIT - mineral oil seals

1шт.

4

413-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

SETSCREW - 5/16 UNC x 1-1/8"

2шт.

5

K19481

SPRING WASHER

WASHER - lock 5/16"

2шт.

6

9635082

NUT,5/16" - 18, Gr 5

- 5/16 UNC

2шт.

7

K949802

ROD

PUSH ROD

1шт.

8

425-115

NUT,5/16"-24, G5

LOCKNUT - 5/16 UNF

1шт.

9

K949803

ADJUSTER

- 5/16 UNF

1шт.

10

K624962

SPRING

RETURN SPRING

1шт.

11

K204057

SHAFT

STUB SHAFT AND LEVER - left-hand

1шт.

12

K201700

BUSHING

SPACER

1шт.

22

K628753

BUSHING

- main frame

4шт.

23

K609425

LARGE PIN

PIN - 3/8 UNC

1шт.

24

K19472

WASHER

- 3/8" (9.525 mm)

1шт.

25

K11522

WASHER

- lock, 3/8"

1шт.

26

280136

NUT,3/8"-16, G8

1шт.

27

K200323

CLUTCH

FORK

1шт.

28

K202820

SHAFT

STUB SHAFT - right-hand

1шт.

29

K623726

PIN

1шт.

30

K626749

WASHER

BELLEVILLE WASHER - 1" (25.4 mm)

1шт.

31

K11128

CIRCLIP

RING - snap 1" (25.4 mm) external

1шт.

32

K84748

TRUNNION

2шт.

33

K928937

BEARING CARRIER,54.04mm ID x 76.2mm OD x 107.95mm L

CARRIER - release bearing

1шт.

34

K620153

THRUST BEARING,69.84mm ID x 103.17mm OD x 21.59mm W

BEARING - transmission release

1шт.

35

K202075

SUPPORT

(Synchromesh Low Profile)

1шт.

36

K602807

SCREW

SETSCREW - 5/16 UNC x 1-1/4" (Synchromesh Low Profile)

3шт.

37

K19481

SPRING WASHER

WASHER - lock - 5/16" (Synchromesh Low Profile)

3шт.

38

K620199

BALL

BEARING

1шт.

39

K12229

RING, SNAP

RING - snap 80 mm, external (Synchromesh Low Profile)

1шт.

40

K623483

OIL SEAL

OIL SEAL - 50 x 70 x 10 mm (Synchromesh Low Profile)

1шт.

41

K940294

SUPPORT

- see figure D4 (Power Shift Low Profile)

1шт.

42

K623415

SEAL

OIL SEAL - 46 x 65 x 10 mm (Power Shift Low Profile)

1шт.

43

K623545

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

- 3" (76.2 mm) internal diameter (Synchromesh Low Profile)

1шт.

43

K623545

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

- 3" (76.2 mm) internal diameter (Power Shift Low Profile)

2шт.
