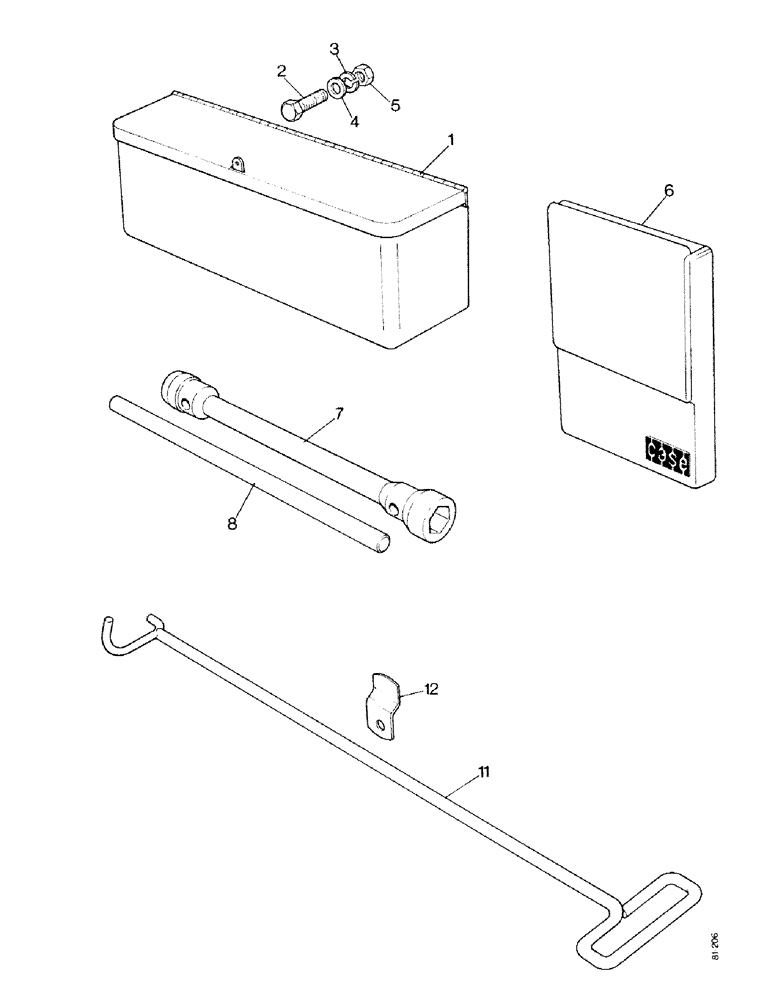

Запчасти Case IH 1490 (V04-1) - TOOLBOX AND TOOLS, LOW PROFILE, HIGH PLATFORM (18) - MISCELLANEOUS

1

K203000

TOOL

BOX - operator's (Low Profile)

1шт.

2

813-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

- M10 x 20 (Low Profile)

4шт.

3

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

WASHER, LOCK, (Low Profile) M10

4шт.

1

K955806

COMPLETE TOOL BOX

TOOLBOX - operator's (High Platform)

1шт.

2

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

(High Platform) Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

3

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (High Platform) 3/8"

2шт.

4

K19472

WASHER

- 3/8" (9.525 mm) (High Platform)

2шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, (High Platform) 3/8"-16, G5

2шт.

6

K954320

BOX

- operators manual (Order A141933 and A162364) (Low Profile)

1шт.

A162364

FASTENER

- manual box (Low Profile)

2шт.

7

K948956

SOCKET WRENCH

WHEEL WRENCH - 1-1/2 x 1" A/F

1шт.

7

K203223

DISC, WHEEL

WHEEL WRENCH - 1-1/2 x 27 mm A/F

1шт.

8

K948095

CLEVIS PIN

BAR - tool

1шт.

11

K203246

ROD

- lower link release (Low Profile)

1шт.

11

K203246

ROD

- lower link release (High Platform)

1шт.

12

K203086

CLIP

RETAINING CLIP - release rod (Low Profile)

2шт.
