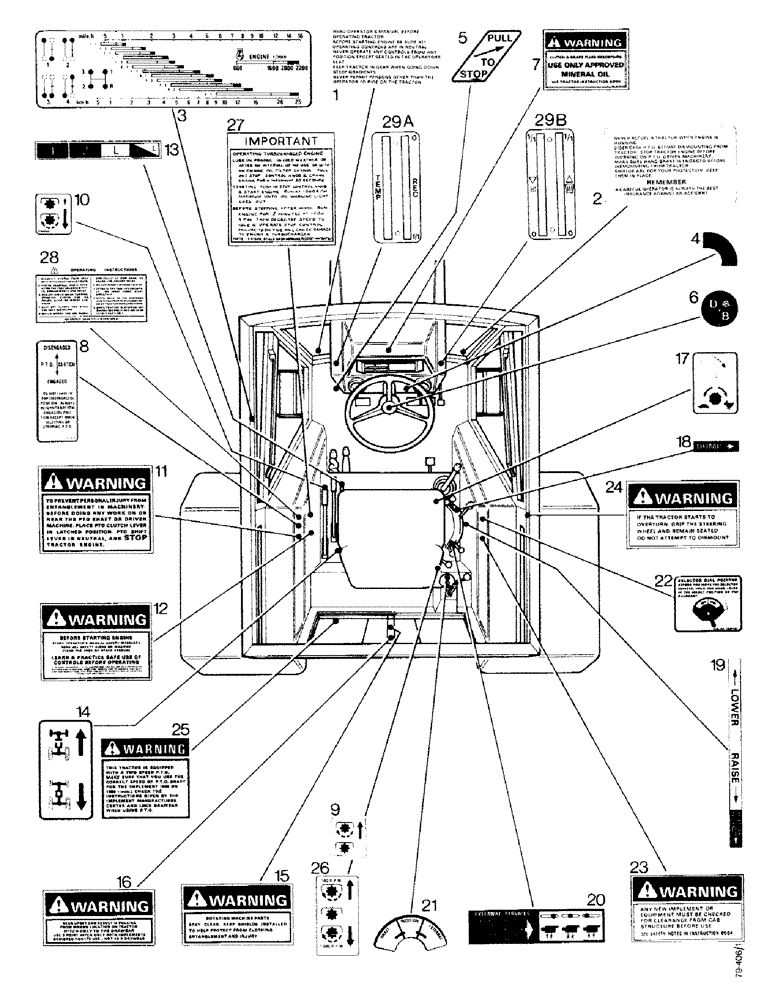

Запчасти Case IH 1490 (V03-1) - DECALS AND INSTRUCTION PLATES, HIGH PLATFORM (18) - MISCELLANEOUS

1

K952685

DECAL

- operating instructions, left-hand

1шт.

2

K952686

DECAL

- operating instructions, right-hand

1шт.

3

K301358

DECAL

- travel speed chart, 10/49 reductions, synchromesh

1шт.

3

K301362

INDICATOR

DECAL - travel speed chart, 10/49 reductions, power-shift

1шт.

4

K953665

DECAL

- starter switch

1шт.

5

K300895

DECAL

- engine stop control

1шт.

6

K952168

DECAL

- steering wheel

1шт.

7

K203756

DECAL

- brake and clutch fluid

1шт.

8

K950497

DECAL

- PTO clutch operation

1шт.

9

K952561

DECAL

- single-speed or reversible shaft PTO selector lever

1шт.

10

K948343

DECAL

- PTO clutch lever

1шт.

11

K200319

DECAL

- PTO warning

1шт.

12

K953244

DECAL

- engine starting warning

1шт.

13

K203220

DECAL

- three-way valve

1шт.

14

K302305

DECAL

- MFD control

1шт.

15

K953240

DECAL

- rotating machinery warning

1шт.

16

K953241

DECAL

- hitch warning

1шт.

27

K203980

DECAL

- rate of lowering control

1шт.

18

K952542

DECAL

- dump valve control

1шт.

19

K956569

DECAL

- quadrant lever

1шт.

20

K952540

DECAL

- live take-off controls

1шт.

21

K204099

DECAL

- selector control

1шт.

21

K204632

DECAL

- selector control, North America only

1шт.

22

K203215

DECAL

- selector control operation

1шт.

23

K952971

DECAL

- implement warning

1шт.

24

K953599

PRODUCT GRAPHIC

DECAL - roll-over warning

1шт.

25

K203386

DECAL

- multi-speed PTO warning

1шт.

26

K954771

DECAL

- multi-speed PTO selector lever

1шт.

27

K204599

DECAL

- turbocharger

1шт.

28

K953245

DECAL

- operating instructions

1шт.

29

K303586

DECAL

- heater controls, left-hand, tractors with cab

1шт.

29

K303585

DECAL

- heater controls, right-hand, tractors with cab

1шт.
