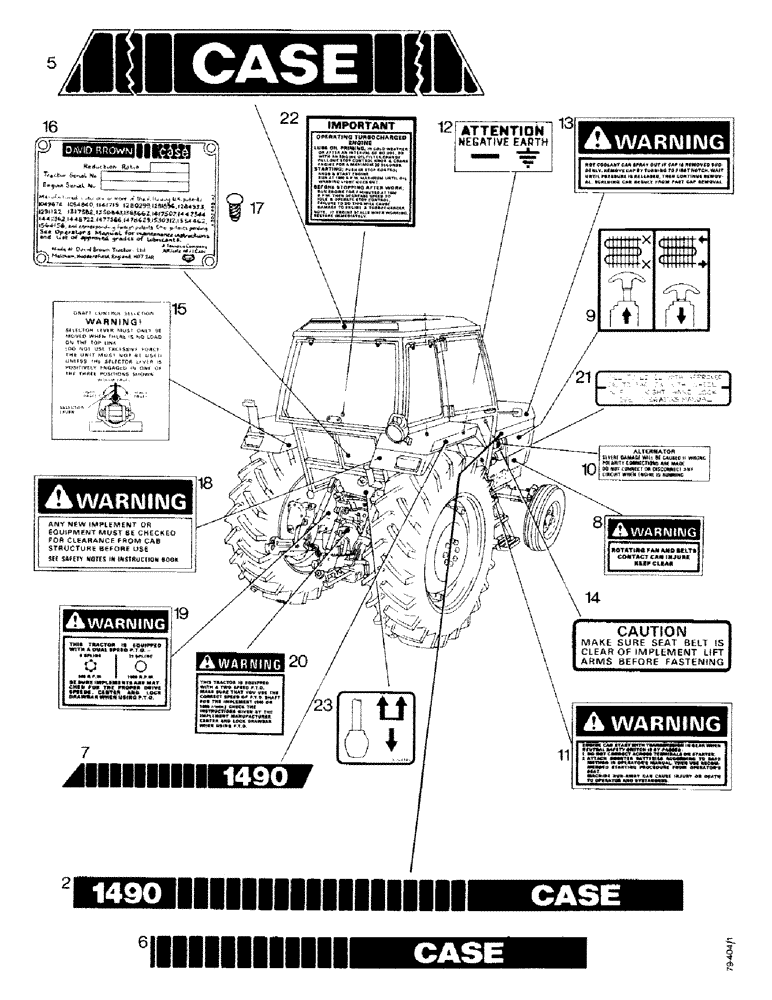

Запчасти Case IH 1490 (V01-1) - DECALS AND INSTRUCTION PLATES, LOW PROFILE, HIGH PLATFORM (18) - MISCELLANEOUS

2

K301126

DECAL

- 1490 Case, right-hand (Low Profile)

1шт.

2

K301127

DECAL

- Case 1490, left-hand (Low Profile)

1шт.

5

K301138

DECAL

- Case, rear (High Platform)

1шт.

6

K301122

DECAL

- Case, right-hand (High Platform)

1шт.

6

K301123

DECAL

- Case, left-hand (High Platform)

1шт.

7

K301150

DECAL

- 1490, right-hand (High Platform)

1шт.

7

K301151

DECAL

- 1490, left-hand (High Platform)

1шт.

8

K953239

DECAL

- fan warning

2шт.

9

K948301

DECAL

- oil cooler valve

1шт.

10

K947548

DECAL

- alternator

1шт.

11

K953242

DECAL

- starter motor

1шт.

12

K917425

PRODUCT GRAPHIC

DECAL - negative earth

1шт.

13

K953573

DECAL

- cooling system warning

1шт.

14

K945069

DECAL

- seat belt

1шт.

15

K940361

PRODUCT GRAPHIC

DECAL - sensing unit warning (High Platform)

1шт.

16

K302409

PLATE

- tractor serial number (High Platform)

1шт.

16

K302344

PLATE

- Product Identification Number, North America only

1шт.

17

K624090

RIVET

SCREW - no. 10 x 10 mm

4шт.

18

K952971

DECAL

- implement warning (High Platform)

2шт.

19

K953884

DECAL

- PTO warning, reversible shaft (High Platform)

1шт.

20

K203386

DECAL

- PTO warning, multi-speed

1шт.

21

K204091

DECAL

- oil reservoir, power steering with side ram

1шт.

22

K204599

DECAL

- turbocharger operation

1шт.

23

K204989

DECAL

- combining valve

1шт.

U4284

KIT - decal, instruction and safety (French) (Low Profile)

1шт.

U4286

KIT - decal, instruction and safety (Spanish) (Low Profile)

1шт.

U5048

KIT - decal, instruction and safety (French) (High Platform)

1шт.

U5050

KIT - decal, instruction and safety (Spanish) (High Platform)

1шт.
