(H13-1) - STEERING CYLINDER - CARRARO AXLE, MFD MODEL

Запчасти Case IH 1490 (H13-1) - STEERING CYLINDER - CARRARO AXLE, MFD MODEL (13) - STEERING SYSTEM

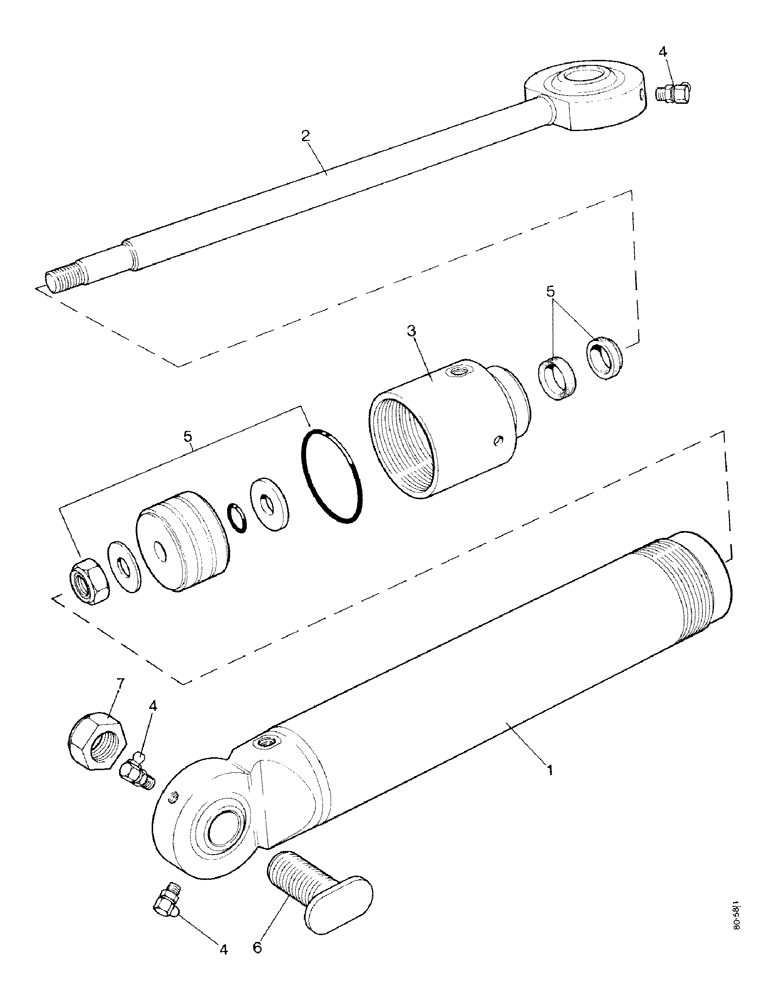

Схема запчастей Case IH 1490 - (H13-1) - STEERING CYLINDER - CARRARO AXLE, MFD MODEL (13) - STEERING SYSTEM
7
5
4
1
4
4
3
2
5
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

K260281

STEERING CYLINDER

ASSEMBLY - (Carraro 104773), Includes Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

CYLINDER - 60 mm outside diameter

1шт.

2

K260529

PISTON

ROD - (Carraro 43441)

1шт.

3

NSS

NOT SOLD SEPARAT

END COVER

1шт.

4

K260531

FITTING

GREASE FITTING - M8, angled (Carraro 24259)

3шт.

5

K260530

GASKET KIT

KIT - seals (Carraro 43439)

1шт.

6

K260527

PIN

BOLT - M22 x 70, special (Carraro 110771)

2шт.

7

K260528

LOCK NUT

- M22, self-locking (Carraro 22443)

2шт.
