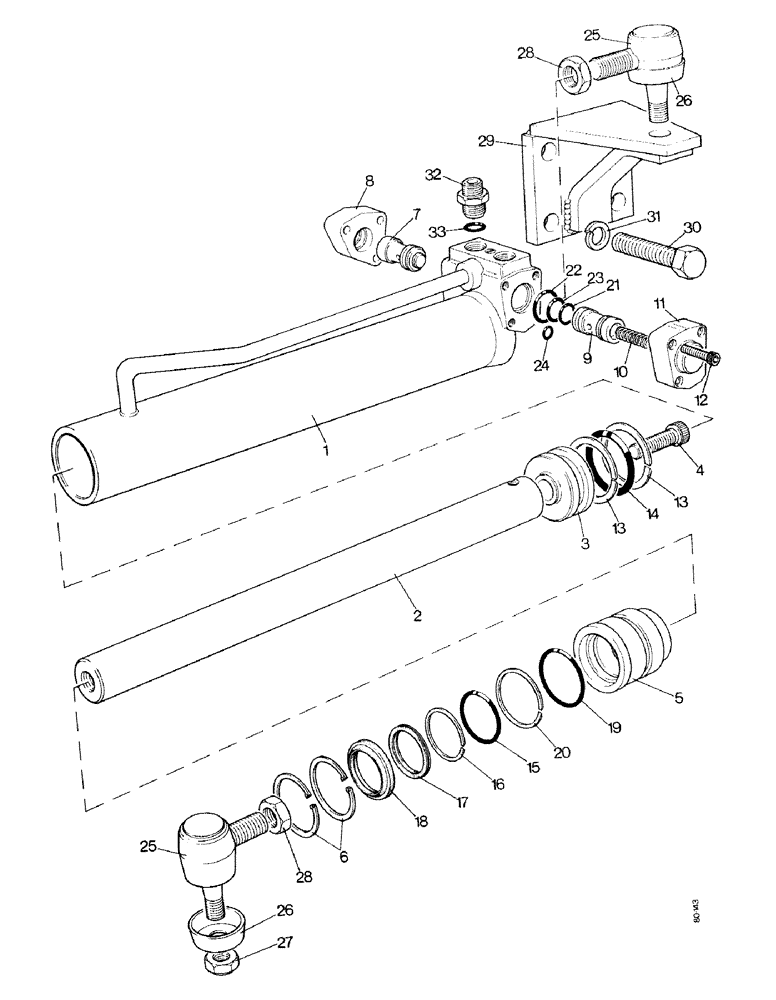

Запчасти Case IH 1490 (H12-1) - SIDE STEERING CYLINDER, 2 WHEEL DRIVE TRACTORS, NOT NORTH AMERICA (13) - STEERING SYSTEM

K200636

RAM FORK

STEERING CYLINDER ASSEMBLY, Includes Ref. 1 - 28

1шт.

1

K200633

CYLINDER

CASE

1шт.

2

K200632

ROD

1шт.

3

K200559

PISTON

1шт.

4

K616823

HEX SOC SCREW,5/8" - 18 x 1 3/4"

SETSCREW - 5/8 UNC x 1-3/4"

1шт.

5

K200561

ARM

SLEEVE

1шт.

6

K12993

RING, SNAP

RING - snap, 2-3/8" (60.325 mm) internal diameter

2шт.

7

K965851

VALVE

NON-RETURN VALVE

1шт.

8

K200562

PLATE

END PLATE

1шт.

9

K203779

VALVE

SPOOL VALVE AND SLEEVE

1шт.

10

K625096

SPRING

1шт.

11

K200611

PLATE

END PLATE

1шт.

12

K616502

SCREW

SETSCREW - 1/4 UNF x 3/4"

6шт.

K965852

SEAL

KIT - seals, steering cylinder, Includes Ref. 13 - 24

1шт.

13

K628914

RING

BACK-UP RING - 1-7/8" (47.625 mm) internal diameter

2шт.

14

K24840

O-RING,0.21" Thk x 1.85" ID, -328, Cl 5, 75 Duro

- 1-7/8" (47.625 mm) internal diameter

1шт.

15

K628877

O-RING

- 40 mm internal diameter

1шт.

16

K628918

SEAL,40mm ID x 44.99mm OD x 1.4mm Thk

BACK-UP RING - 40 mm internal diameter

1шт.

17

K628128

RING

SEALING RING - 40 mm internal diameter

1шт.

18

K623712

WIPER SEAL

SCRAPER SEAL - 40 mm internal diameter

1шт.

19

K623715

O-RING,0.1" Thk x 2.06" ID

- 2-1/16" (52.388 mm) internal diameter

1шт.

20

K623713

SEAL,52.39mm ID x 57.15mm OD x 1.47mm Thk

BACK-UP RING - 2-1/16" (52.388 mm) internal diameter

1шт.

21

K623540

O-RING,0.614" ID x 0.754" OD x 0.07"

- 5/8" (15.875 mm) internal diameter

2шт.

22

K16375

O-RING,0.943" ID x 0.106"

- 15/16" (23.812 mm) internal diameter

2шт.

23

K628874

O-RING

- 11/16" (17.462 mm) internal diameter

1шт.

24

K14573

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

- 5/16" (7.938 mm) internal diameter

1шт.

25

K923766

BALL JOINT

BALL SOCKET ASSEMBLY, Includes Ref. 26 - 28

2шт.

26

K962155

CAP

DIRT SEAL

1шт.

27

131-377

LOCK NUT,5/8"-11, GC

NUT - 5/8 UNF, self-locking

1шт.

28

K622500

LOCK NUT

LOCKNUT - 3/4", special

1шт.

29

K302251

BRACKET

ANCHOR BRACKET - steering cylinder

1шт.

30

K603310

SCREW

SETSCREW - 5/8 UNC x 2"

4шт.

31

K19485

WASHER

- lock, 5/8"

4шт.

32

K626039

FITTING

UNION - 3/4 UNF (19.05 mm)

2шт.

33

K623591

O-RING

- 5/8" (15.875 mm) internal diameter

2шт.
