(H11-1) - STEERING CYLINDER - DAVID BROWN AXLE, MFD MODEL

Запчасти Case IH 1490 (H11-1) - STEERING CYLINDER - DAVID BROWN AXLE, MFD MODEL (13) - STEERING SYSTEM

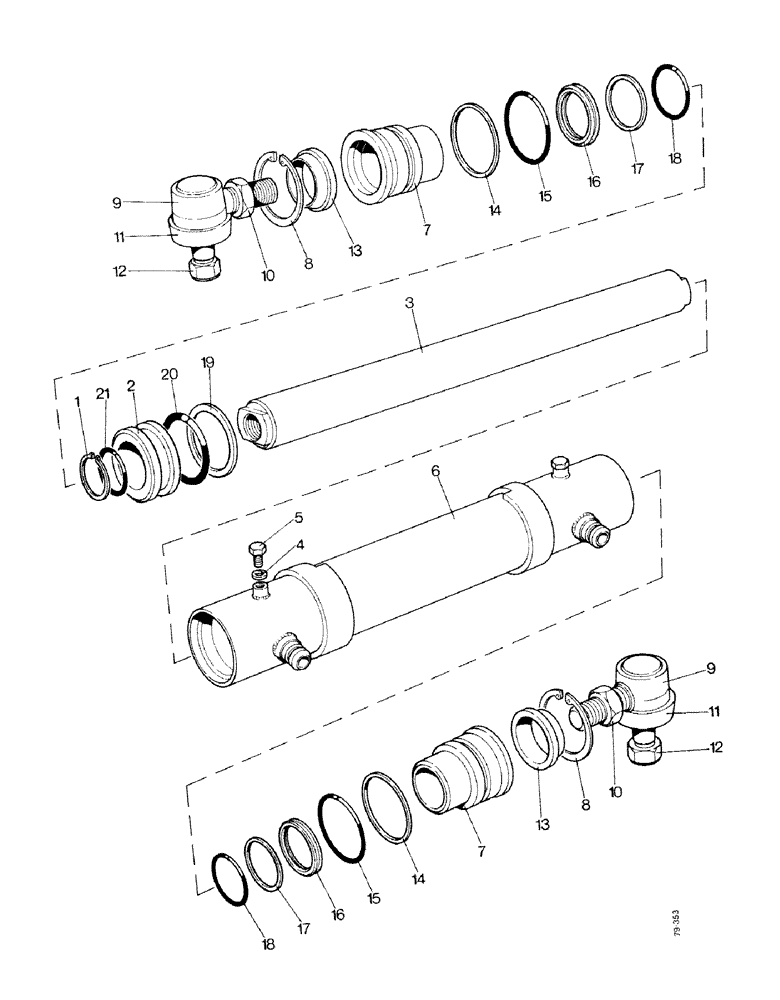

Схема запчастей Case IH 1490 - (H11-1) - STEERING CYLINDER - DAVID BROWN AXLE, MFD MODEL (13) - STEERING SYSTEM
10
16
7
13
7
17
6
12
3
14
17
16
21
15
1
9
14
8
10
18
8
19
15
5
2
9
20
18
11
12
11
13
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

K955079

STEERING CYLINDER

ASSEMBLY, Includes Ref. 1 - 21

1шт.

1

K11952

RING, SNAP

RING - snap

2шт.

2

K951196

PISTON

1шт.

3

K951198

ROD

RAM ROD

1шт.

4

K626450

WASHER

2шт.

5

K613980

SCREW

SETSCREW - no. 10 UNF, air removal

2шт.

6

K955080

TUBE

ASSEMBLY

1шт.

7

K953838

SLEEVE

2шт.

8

K621479

RING, SNAP

RING - snap

4шт.

9

K923766

BALL JOINT

BALL AND SOCKET ASSEMBLY, Includes Ref. 10 - 12

2шт.

10

K622500

LOCK NUT

LOCKNUT - 3/4"

1шт.

11

K962155

CAP

RUBBER COVER

1шт.

12

131-377

LOCK NUT,5/8"-11, GC

LOCKNUT - 5/8 UNF

1шт.

K965840

SEAL KIT

KIT - seals

1шт.

13

K628862

SEAL

2шт.

14

K628916

RING

BACK-UP RING - sleeve, external

2шт.

15

K623524

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

- 2" (50.8 mm) internal diameter, sleeve, external

2шт.

16

K623550

SEAL

- sleeve, internal

2шт.

17

K628917

RING

BACK-UP RING - sleeve, internal

2шт.

18

K14492

O-RING,1.625" ID x 0.139"

- 1-5/8" (41.275 mm) internal diameter

2шт.

19

K628069

WASHER

BACK-UP RING

2шт.

20

K24666

O-RING,0.21" Thk x 1.975" ID, -329, Cl 6, 90 Duro

- 2-3/8" (60.325 mm) external diameter, piston, external

1шт.

21

K623676

O-RING,1.359" ID x 0.139" Width

- ram rod to piston

1шт.
