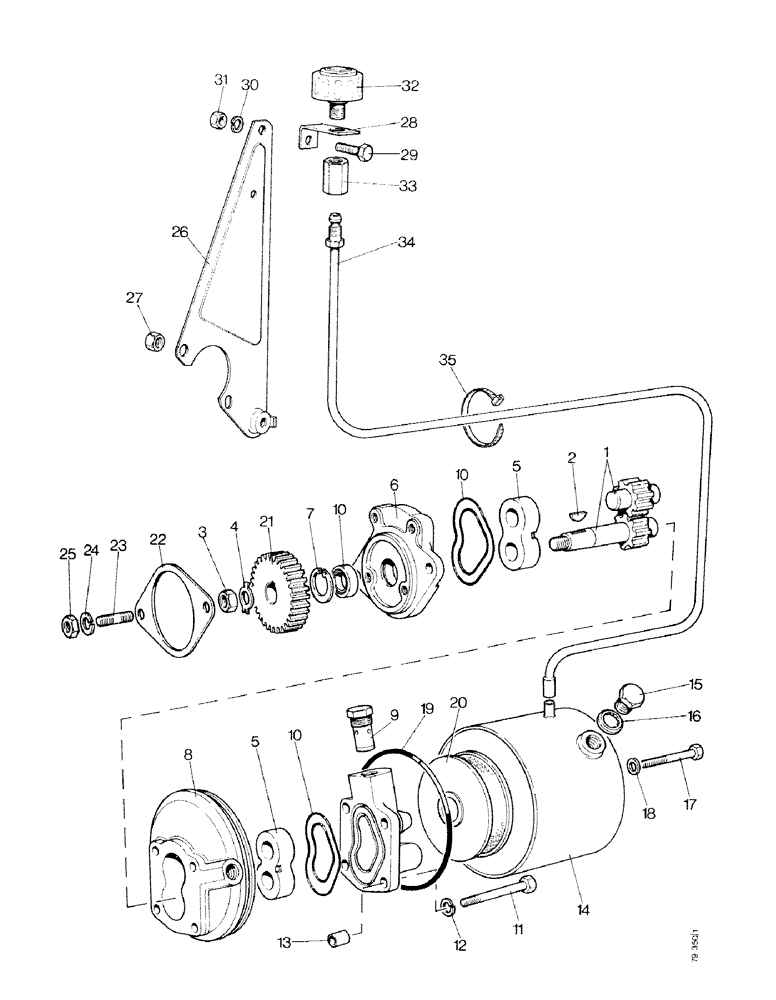

Запчасти Case IH 1490 (H09-1) - STEERING PUMP AND RESERVOIR (13) - STEERING SYSTEM

K957318

PUMP

AND RESERVOIR ASSEMBLY - Plessey A23/20766, Includes Ref. 1 - 20

1шт.

K964815

GEAR

KIT - rotors, Includes Ref. 1 - 4

1шт.

1

K964934

GEAR

ROTORS - pair

1шт.

2

K19604

KEY

- Woodruff no. 405

1шт.

3

425-157

JAM NUT,Jam, 7/16"-20, G5

- 7/16 UNF

1шт.

4

K626380

WASHER

TABWASHER

1шт.

5

K962189

BEARING

2шт.

6

K964925

FLANGE

MOUNTING FLANGE

1шт.

7

K962097

RING, SNAP

RING - snap, 13/16" (20.638 mm) diameter

1шт.

8

K964923

COVER

- pump body

1шт.

9

K964932

VALVE

RELIEF VALVE

1шт.

10

K964935

SEAL

KIT - seals and o-rings

1шт.

11

K964921

BOLT

- 3/8 UNC x 3-1/8"

4шт.

12

K19482

SPRING WASHER

WASHER - lock, 3/8"

4шт.

13

K964920

PIN

SPACER

2шт.

14

K260582

RESERVOIR

1шт.

15

K623825

PLUG

- 1/2 BSP

1шт.

16

K626769

WASHER

SEALING WASHER - plug

1шт.

17

K964930

BOLT

SETSCREW - 5/16 UNC x 2-1/4"

1шт.

18

K964928

SEAL

ING WASHER - 5/16" (7.938 mm)

1шт.

19

K965217

RING

SEALING WASHER -, Serial Range: reservoir-pump

1шт.

20

K964931

FILTER

- with sealing rings

1шт.

21

K945098

PINION

GEAR - 28 teeth

1шт.

22

K919729

GASKET,0.76mm Thk

-, Serial Range: pump-engine

1шт.

23

K608147

STUD

- 5/16 UNC x 1", Serial Range: pump-engine

2шт.

24

K19481

SPRING WASHER

WASHER - lock, 5/16", Serial Range: pump-engine

2шт.

25

9635082

NUT,5/16" - 18, Gr 5

- 5/16 UNC

2шт.

26

K302478

BRACKET

SUPPORT - breather bracket

1шт.

27

280136

NUT,3/8"-16, G8

Support to engine 3/8"-16, G8

1шт.

28

K302479

BRACKET

- breather

1шт.

29

K650341

SCREW

BOLT - M8 x 16

1шт.

30

K651848

WASHER

- lock, 8 mm

1шт.

31

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

1шт.

32

K302324

FILTER

BREATHER

1шт.

33

K204309

ADAPTER

CONNECTOR -, Serial Range: breather-pipe

1шт.

34

K204270

PIPE,0.312" OD x 20, 2" L

- breather to reservoir

1шт.

35

K621734

CABLE

STRAP

1шт.
