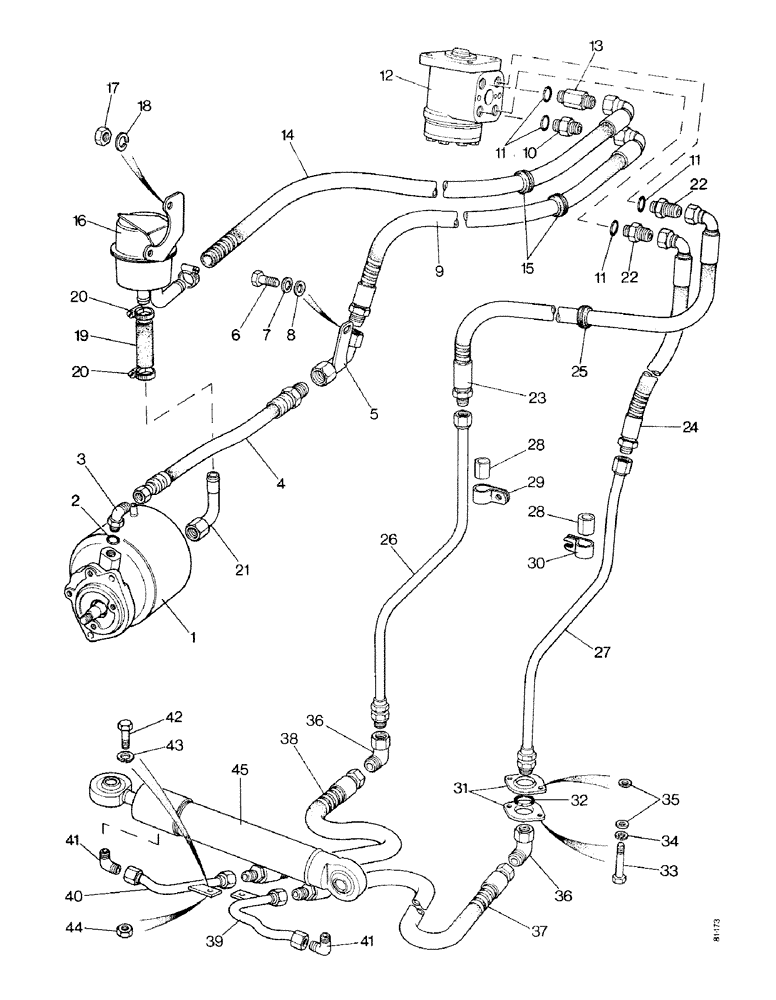

Запчасти Case IH 1490 (H08-1) - STEERING SYSTEM - CARRARO AXLE, MFD MODEL, HIGH PLATFORM (13) - STEERING SYSTEM

1

K957318

PUMP

ASSEMBLY - see figure H09-1

1шт.

2

K623649

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

- 7/16" (11.112 m) internal diameter

1шт.

3

K622110

FITTING

ELBOW - 9/16 UNF (14.288 mm)

1шт.

4

K203684

HOSE

PIPE - flexible, 7/8 - 9/16 UNF x 12-1/2", pump outlet

1шт.

5

K204380

PIPE

- rigid, pump outlet

1шт.

6

K650640

BOLT

- M8 x 14

1шт.

7

K651848

WASHER

- lock, 8 mm

1шт.

8

K651778

WASHER

- 8 MM

1шт.

9

K203646

HOSE

PIPE - flexible, 7/8 UNF x 33", pump outlet

1шт.

10

K203639

VALVE

NON-RETURN VALVE

1шт.

11

K623591

O-RING

- 5/8" (15.875 mm) internal diameter

4шт.

12

K946083

VALVE

STEERING VALVE - see Figure H01-1

1шт.

13

K626085

FITTING

UNION - 3/4 UNF (19.05 mm)

1шт.

14

K204063

HOSE

PIPE - flexible, 3/4 UNF x 40" (19.05 x 1016.0 mm) pump return

1шт.

15

K627766

GROMMET

- 7/8" (22.225 mm) internal diameter

2шт.

16

K302508

TANK

RESERVOIR

1шт.

17

280136

NUT,3/8"-16, G8

2шт.

18

K19482

SPRING WASHER

WASHER - lock

2шт.

19

K204350

HOSE

- 5/8 x 3" (15.875 x 76.2 mm)

1шт.

20

K622025

CLAMP

HOSE CLAMP - 7/8" (22.225 mm)

3шт.

21

K204351

PIPE,0.625" OD x 4.5, 3.187" L

- reservoir to pump

1шт.

22

K626039

FITTING

UNION - 3/4 UNF (19.05 mm)

2шт.

23

K202458

HOSE

PIPE - flexible, right-hand

1шт.

24

K202457

HOSE

PIPE - flexible, left-hand

1шт.

25

K627765

GROMMET

- 3/4" (19.05 mm) internal diameter

2шт.

26

K202919

PIPE,0.66" DIA x 19.5, 10.875" L

- right-hand

1шт.

27

K202981

PIPE,0.5" OD x 16.156, 12.125" L

- left-hand

1шт.

28

K946125

TUBE

NYLON TUBE

2шт.

29

K621717

CLIP

PIPE CLAMP

1шт.

30

K628372

CLIP

PIPE CLAMP

1шт.

31

CASK945907

PLATE

CLAMP PLATE

4шт.

32

K628856

O-RING,0.649" ID x 0.25" Width

- 5/8" (15.875 mm) internal diameter

2шт.

33

K602704

SCREW

SETSCREW - 1/4 UNC x 7/8"

4шт.

34

K626341

SPRING WASHER

WASHER - lock, 1/4"

4шт.

35

K19470

WASHER

- 1/4" (6.35 mm)

8шт.

36

K260228

FITTING

ELBOW - (Carraro 105935)

2шт.

37

K205101

HOSE ASSY.

PIPE - flexible, left-hand (Carraro 105869)

1шт.

38

K205106

TUBE

PIPE - flexible, right-hand (Carraro 105870)

1шт.

39

K260227

PIPE

- rigid, left-hand (Carraro 101521)

1шт.

40

K260226

PIPE

- rigid, right-hand (Carraro 101520)

1шт.

41

K260225

FITTING

ELBOW - (Carraro 101522)

2шт.

42

K965359

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

SETSCREW - (Carraro 20781)

1шт.

43

K965360

LOCK WASHER,M8

WASHER - lock (Carraro 22856)

1шт.

44

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10 (Carraro 22115)

1шт.

45

K260281

STEERING CYLINDER

- see Figure H13-1 (Carraro 104773)

1шт.
