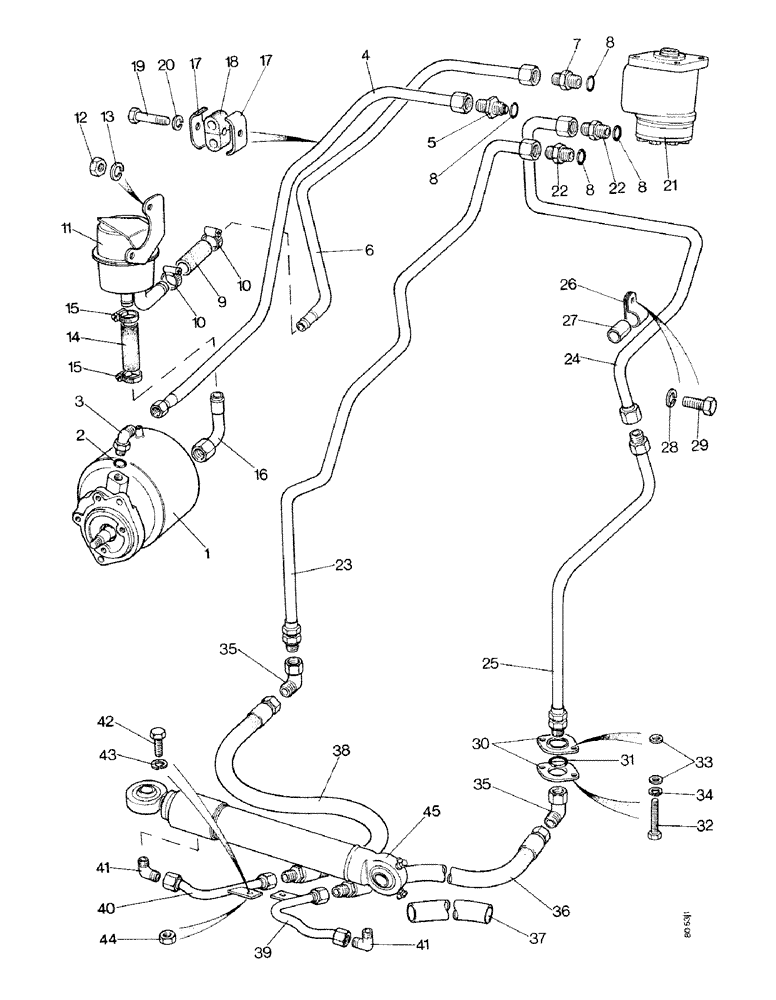

Запчасти Case IH 1490 (H07-1) - STEERING SYSTEM - CARRARO AXLE, LOW PROFILE, MFD MODEL (13) - STEERING SYSTEM

1

K957318

PUMP

ASSEMBLY - see Figure H09-1

1шт.

2

K623649

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

- 7/16" (11.112 mm) internal diameter

1шт.

3

K622110

FITTING

ELBOW - 9/16 UNF (14.288 mm) pump outlet

1шт.

4

K204473

PIPE - pump outlet

1шт.

5

K203639

VALVE

NON-RETURN VALVE

1шт.

6

K204471

PIPE

- pump return

1шт.

7

K626062

FITTING

UNION - 3/4 - 7/8 UNF

1шт.

8

K623591

O-RING

- 5/8" (15.875 mm) internal diameter

4шт.

9

K626809

HOSE

- reservoir inlet

1шт.

10

K622024

CLAMP

HOSE CLAMP - 3/4" (19.05 mm)

2шт.

11

K302508

TANK

RESERVOIR

1шт.

12

280136

NUT,3/8"-16, G8

Reservoir to engine 3/8"-16, G8

2шт.

13

K19481

SPRING WASHER

WASHER - lock, 3/8", Serial Range: reservoir-engine

2шт.

14

K204350

HOSE

- reservoir outlet

1шт.

15

K622025

CLAMP

HOSE CLAMP - 7/8" (22.225 mm)

2шт.

16

K204351

PIPE,0.625" OD x 4.5, 3.187" L

- reservoir to pump

1шт.

17

K951982

SHIM

CLAMP - pipes

2шт.

18

K951993

SLEEVE

RUBBER SLEEVE

2шт.

19

K650365

BOLT

- M10 x 50

1шт.

20

K19482

SPRING WASHER

WASHER - lock, 3/8"

1шт.

21

K946083

VALVE

STEERING VALVE ASSEMBLY - see Figure H01-1

1шт.

22

K626039

FITTING

UNION - 3/4 UNF (19.05 mm)

1шт.

23

K202013

PIPE

- right-hand side

1шт.

24

K202014

PIPE

- left-hand upper

1шт.

25

K202015

PIPE

- left-hand lower

1шт.

26

K621717

CLIP

CLAMP - pipes

1шт.

27

K926858

TUBE,0.47" ID x 0.625" OD x 1" L

MYLON TUBE

1шт.

28

K651849

WASHER

- lock, 10 mm

1шт.

29

K650359

BOLT,M10 x 1.5 x 20mm

SETSCREW - M10 x 20

1шт.

30

K945907

RING, SNAP

CLAMP PLATE - pipes to main frame

4шт.

31

K628856

O-RING,0.649" ID x 0.25" Width

- 5/8" (15.875 mm) internal diameter

2шт.

32

K602704

SCREW

SETSCREW - 1/4 UNC x 7/8"

4шт.

33

K19470

WASHER

- 1/4" (6.35 mm)

8шт.

34

K626341

SPRING WASHER

WASHER - lock, 1/4"

4шт.

35

K260228

FITTING

ELBOW - (Carraro 105935)

2шт.

36

K205101

HOSE ASSY.

PIPE - flexible, left-hand (Carraro 105869)

1шт.

37

K260237

SLEEVE

- steering pipe (Carraro 107570)

1шт.

38

K205106

TUBE

PIPE - flexible, right-hand (Carraro 105870)

1шт.

39

K260227

PIPE

- rigid, left-hand (Carraro 101521)

1шт.

40

K260226

PIPE

- rigid, right-hand (Carraro 101520)

1шт.

41

K260225

FITTING

ELBOW - (Carraro 101522)

2шт.

42

K965359

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

SETSCREW - (Carraro 20781)

1шт.

43

K965360

LOCK WASHER,M8

WASHER - lock (Carraro 22856)

1шт.

44

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10 (Carraro 22115)

1шт.

45

K260281

STEERING CYLINDER

- see Figure H13-1 (Carraro 104773)

1шт.
