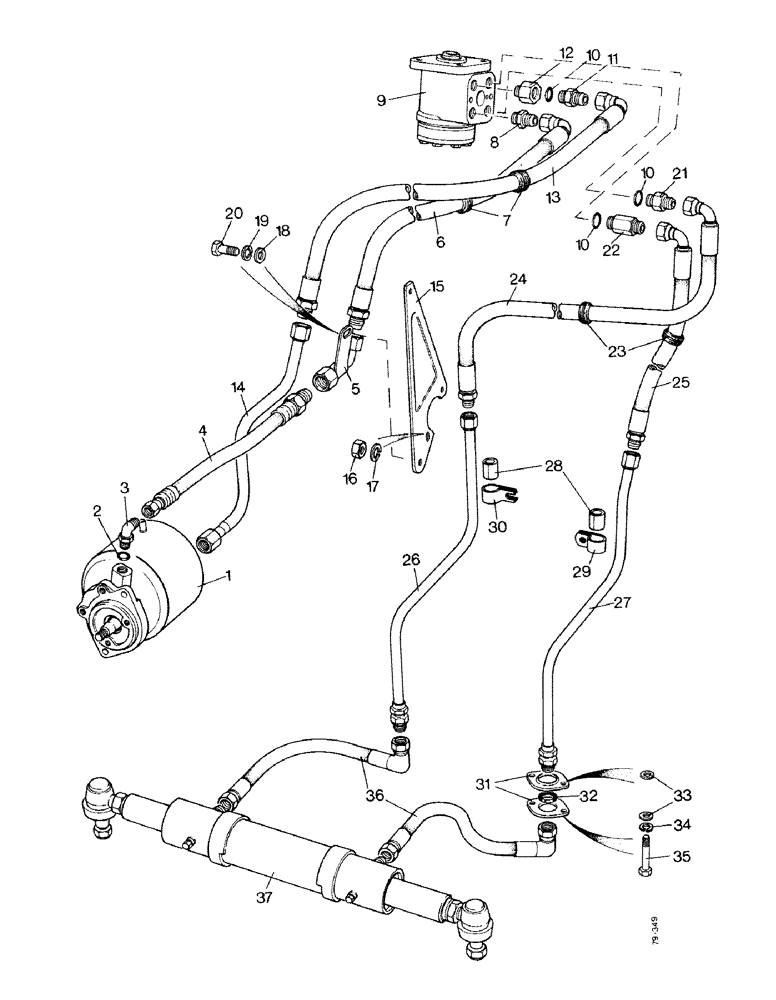

Запчасти Case IH 1490 (H05-1) - STEERING SYSTEM - DAVID BROWN AXLE, MFD MODEL, HIGH PLATFORM (13) - STEERING SYSTEM

1

K957318

PUMP

ASSEMBLY - see Figure H09-1

1шт.

2

K623649

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

- 7/16" (11.112 mm) internal diameter, pump outlet

1шт.

3

K622110

FITTING

ELBOW - 9/16 UNF (14.288 mm) pump outlet

1шт.

4

K203684

HOSE

PIPE - flexible, pump outlet

1шт.

5

K204380

PIPE

- rigid, pump outlet

1шт.

6

K203646

HOSE

PIPE - flexible, pump outlet

1шт.

7

K627766

GROMMET

- 7/8" (22.225 mm) pump outlet

2шт.

8

K203639

VALVE

NON-RETURN VALVE - pump outlet

1шт.

9

K946083

VALVE

STEERING VALVE ASSEMBLY - see Figure H01-1

1шт.

10

K623589

O-RING

- 5/8" (15.875 mm) internal diameter, return pipe

1шт.

11

K626039

FITTING

UNION - 3/4 UNF (19.05 mm) return pipe

1шт.

12

K200060

VALVE

NON-RETURN VALVE - return pipe

1шт.

13

K202456

HOSE

PIPE - flexible, return pipe

1шт.

14

K202918

PIPE

- rigid, return pipe

1шт.

15

K302478

BRACKET

- rigid outlet pipe

1шт.

16

280136

NUT,3/8"-16, G8

Bracket to manifold 3/8"-16, G8

1шт.

17

K19482

SPRING WASHER

WASHER - lock, 3/8", Serial Range: bracket-manifold

1шт.

18

K651778

WASHER

- 8 mm, Serial Range: pipe-bracket

1шт.

19

K651848

WASHER

- lock, 8 mm, Serial Range: pipe-bracket

1шт.

20

K650640

BOLT

- M8 x 14, Serial Range: pipe-bracket

1шт.

21

K626086

FITTING

UNION - special, 3/4 UNF (19.05 mm)

1шт.

22

K626085

FITTING

UNION - special, 3/4 UNF (19.05 mm)

1шт.

23

K627765

GROMMET

- 3/4" (19.05 mm)

2шт.

24

K202458

HOSE

PIPE - flexible, right-hand

1шт.

25

K202457

HOSE

PIPE - flexible, left-hand

1шт.

26

K202919

PIPE,0.66" DIA x 19.5, 10.875" L

- rigid, right-hand

1шт.

27

K202981

PIPE,0.5" OD x 16.156, 12.125" L

- rigid, left-hand

1шт.

28

K946125

TUBE

NYLON TUBE -, Serial Range: clamp-pipes

2шт.

29

K628365

PIPE

CLAMP - left-hand pipe

1шт.

30

K621717

CLIP

CLAMP - right-hand pipe

1шт.

31

K945907

RING, SNAP

CLAMP PLATE - pipes to main frame

4шт.

32

K628856

O-RING,0.649" ID x 0.25" Width

- 5/8" (15.875 mm) internal diameter

2шт.

33

K19470

WASHER

- 1/4" (6.35 mm)

8шт.

34

K626341

SPRING WASHER

WASHER - lock 1/4"

4шт.

35

K602704

SCREW

SETSCREW - 1/4 UNC x 1/8"

4шт.

36

K200694

HOSE

PIPE - flexible

2шт.

37

K955079

STEERING CYLINDER

- see Figure H11-1

1шт.
