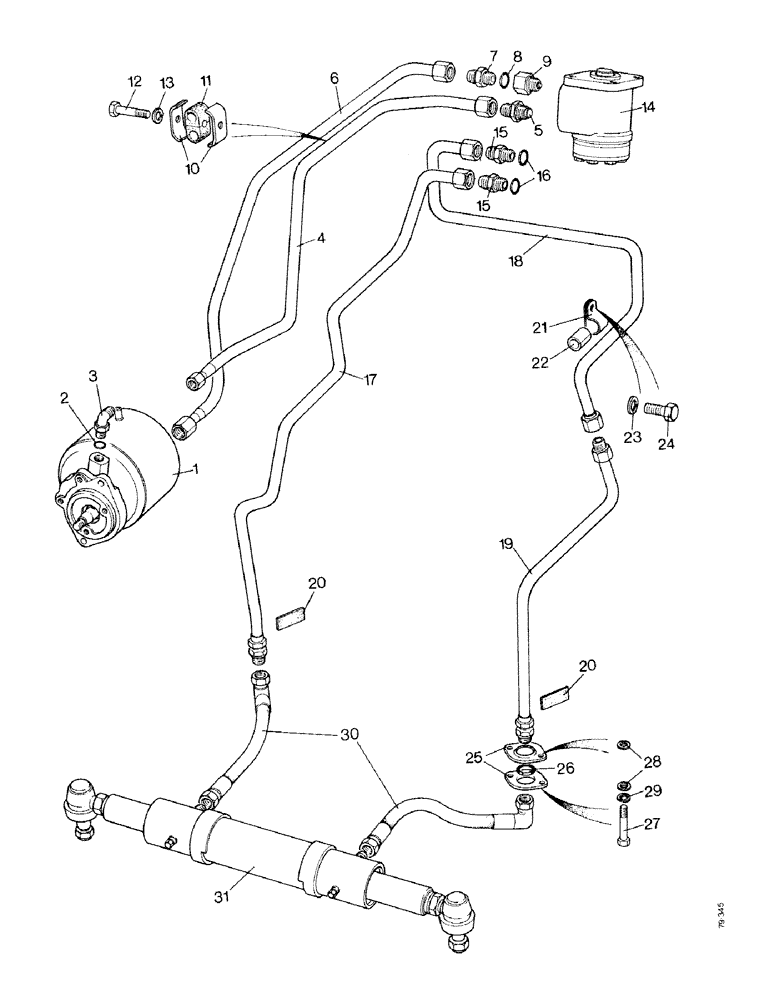

Запчасти Case IH 1490 (H03-1) - STEERING SYSYTEM - DAVID BROWN AXLE, LOW PROFILE, MFD MODEL (13) - STEERING SYSTEM

1

K957318

PUMP

ASSEMBLY - see Figure H09-1

1шт.

2

K623649

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

- 7/16" (11.112 mm) internal diameter

1шт.

3

K622110

FITTING

ELBOW - 9/16 UNF (14.288 mm), pump outlet

1шт.

4

K202011

PIPE

- pump outlet

1шт.

5

K203639

VALVE

NON-RETURN VALVE - pump outlet pipe

1шт.

6

K202012

PIPE

- pump return

1шт.

7

K626062

FITTING

UNION - 3/4 - 7/8 UNF

1шт.

8

K623591

O-RING

- 5/8" (15.875 mm) internal diameter

2шт.

9

K200060

VALVE

NON-RETURN VALVE - return pipe

1шт.

10

K951982

SHIM

CLAMP - pipes

2шт.

11

K951993

SLEEVE

RUBBER SLEEVE -, Serial Range: clamp-pipes

2шт.

12

K650365

BOLT

- M10 x 50

1шт.

13

K19482

SPRING WASHER

WASHER - lock, 3/8"

1шт.

14

K946083

VALVE

STEERING VALVE ASSEMBLY - see Figure H01-1

1шт.

15

K626039

FITTING

UNION - 3/4 UNF

2шт.

16

K623591

O-RING

- 5/8" (15.875 mm) internal diameter

2шт.

17

K202013

PIPE

- right-hand side

1шт.

18

K202014

PIPE

- left-hand upper

1шт.

19

K202015

PIPE

- left-hand lower

1шт.

20

K628244

STRIP

RUBBER STRIP - steel, Serial Range: pipe-frame

2шт.

21

K621717

CLIP

CLAMP - pipes

2шт.

22

K926858

TUBE,0.47" ID x 0.625" OD x 1" L

NYLON TUBE - clamp to pipes

2шт.

23

K651849

WASHER

- lock, 10 mm

2шт.

24

K650359

BOLT,M10 x 1.5 x 20mm

SETSCREW - M10 x 20

2шт.

25

K945907

RING, SNAP

CLAMP PLATE - pipes to main frame

4шт.

26

K628856

O-RING,0.649" ID x 0.25" Width

- 5/8" (15.875 mm) internal diameter

2шт.

27

K602704

SCREW

SETSCREW -1/4 UNC x 7/8"

4шт.

28

K19470

WASHER

- 1/4" (6.35 mm)

8шт.

29

K626341

SPRING WASHER

WASHER - lock, 1/4"

4шт.

30

K200694

HOSE

PIPE - flexible, 3/4 UNF x 15"

2шт.

31

K955079

STEERING CYLINDER

- see Figure H11-1

1шт.
