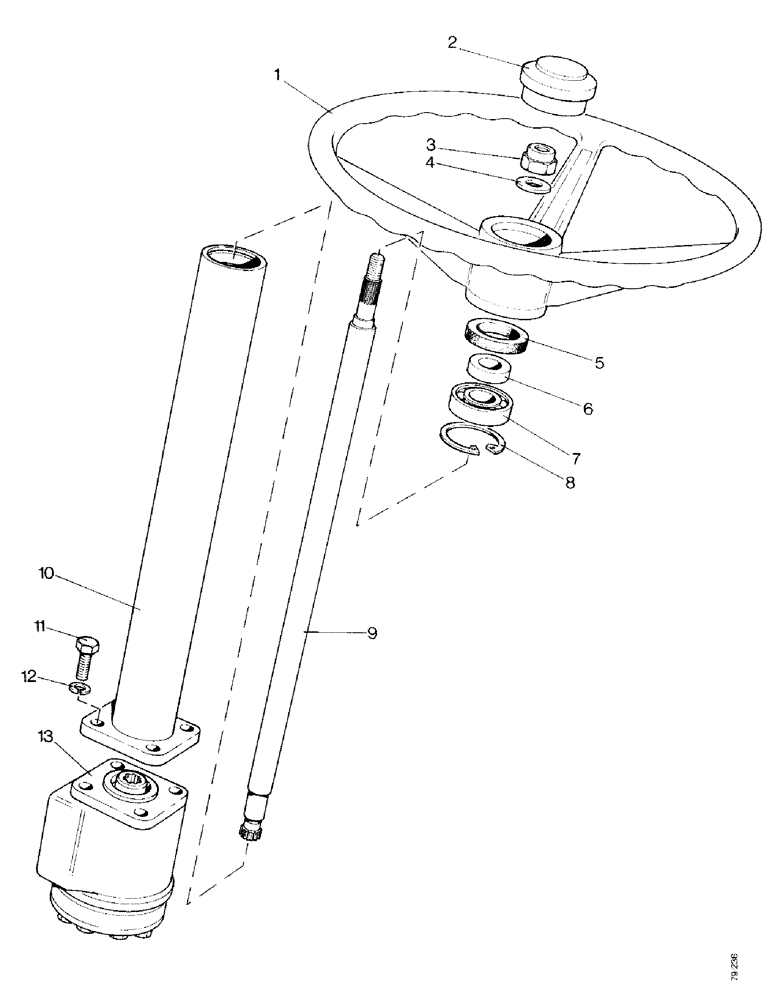

Запчасти Case IH 1490 (H01-1) - STEERING COLUMN AND VALVE, LOW PROFILE, HIGH PLATFORM, CAB MODEL (13) - STEERING SYSTEM

1

K949446

HANDWHEEL

STEERING WHEEL

1шт.

2

K952274

CAP

HUB CAP

1шт.

3

K607304

NUT

- 1/2 UNC, self-locking

1шт.

4

K626686

WASHER

- 1/2" (12.7 mm)

1шт.

5

K623479

WASHER

FELT WASHER - 1/2" (12.7 mm)

1шт.

6

K627103

BUSHING

SPACER

1шт.

7

K620192

BALL

BEARING

1шт.

8

K11911

RING, SNAP

RING - snap, 1-5/8" (41.275 mm) internal

2шт.

9

K201585

SHAFT

- 14-1/4" (361.95 mm) (Low Profile)

1шт.

9

NSS

NOT SOLD SEPARAT

SHAFT - 9-1/2" (241.3 mm) Order K202704 and K202735 (Low Profile)

1шт.

9

K202745

SHAFT

- 11-1/16" (280.988 mm) (High Platform, Cab Model)

1шт.

10

K201581

FLANGE

STEERING COLUMN - 11-7/16" (290.512 mm) (Low Profile)

1шт.

10

K202704

FLANGE

STEERING COLUMN - 8-9/16" (217.488 mm) (High Platform, Cab Model)

1шт.

10

NSS

NOT SOLD SEPARAT

STEERING COLUMN - 7" (177.8 mm) (Order K202704 and K202745) (High Platform, Cab Model)

1шт.

11

K600403

BOLT

- 3/8 UNC x 1-3/8" (Low Profile)

4шт.

11

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

(High Platform, Cab Model) Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

12

K19482

SPRING WASHER

WASHER - lock, 3/8"

4шт.

13

K946083

VALVE

STEERING VALVE - Oribitirol OPS 125

1шт.

K964157

SPRING

CENTERING SPRING - set of three

2шт.

K962387

GASKET KIT

SEAL KIT - steering valve

1шт.

If steering hand pump has Danfoss P/N 150-1051 on it, order seal kit P/N 3141548R91.

1шт.
