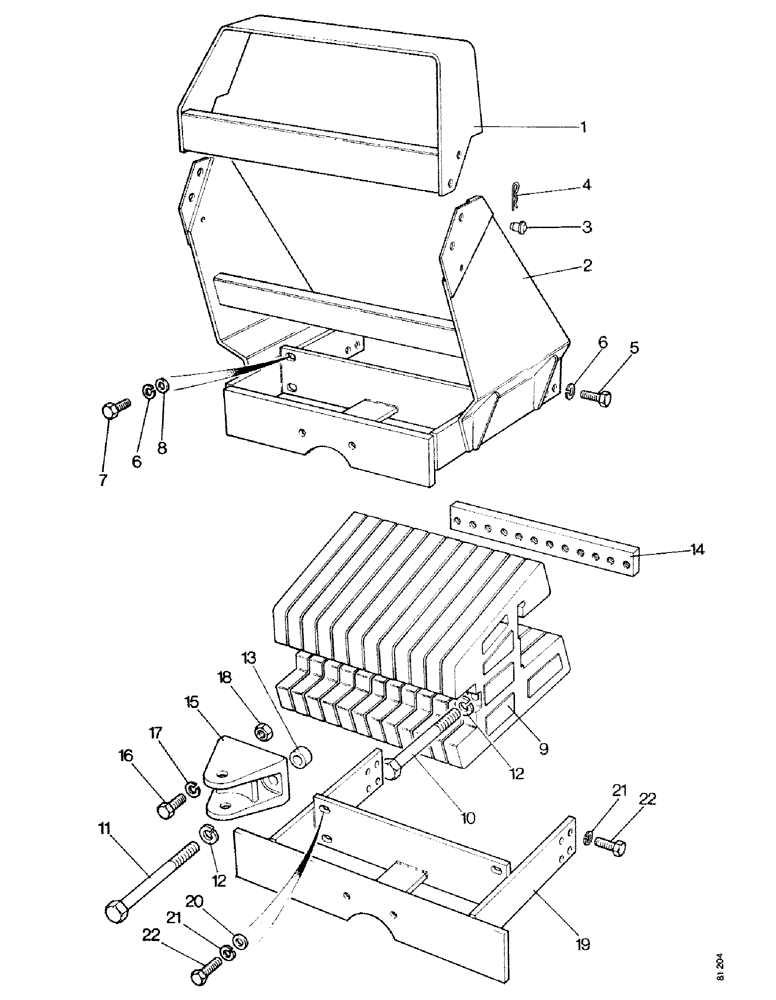

Запчасти Case IH 1490 (T05-1) - RADIATOR GUARD, FRONT BALLAST WEIGHTS AND TOW BRACKET (11) - WHEELS & WEIGHTS

UK5152

RADIATOR

GUARD UNIT, Includes: Ref. 1 - 8

1шт.

1

K301607

GUARD

- hood nose

1шт.

2

K301598

RADIATOR

GUARD - radiator

1шт.

3

K770632

PIN

4шт.

4

K771626

FASTENER

PIN - cotter

4шт.

5

K691849

BOLT

- 5/8 UNC x 2"

4шт.

6

K19485

WASHER

- lock, 5/8"

8шт.

7

K603276

SCREW

SETSCREW - 5/8 UNC x 1-3/4"

4шт.

8

K626855

WASHER

- 5/8" (15.875 mm)

4шт.

UK5135

WEIGHT

BALLAST WEIGHT UNIT - use with UK5152, Includes: Ref. 9 - 14

1шт.

9

K203073

WEIGHT

BALLAST WEIGHT - 65lb (29 KG) use with UK5152

12шт.

10

K601472

BOLT

- 3/4 UNC x 9", use with UK5152

2шт.

11

K601473

BOLT

- 3/4 UNC x 10-1/2", use with UK5152

2шт.

12

K19486

WASHER, LOCK

WASHER - lock, 3/4", use with UK5152

4шт.

13

K301633

SPACER

- use with UK5152

2шт.

14

K301634

BAR

LOCKING BAR - use with UK5152

1шт.

UK5140

CLEVIS

FRONT TOWING UNIT, Includes: Ref. 15 - 18

1шт.

15

K204397

CLEVIS

TOW BRACKET

1шт.

16

K603438

SCREW

SETSCREW - 3/4 UNC x 2", tow, Serial Range: bracket-frame

2шт.

17

K19486

WASHER, LOCK

WASHER - lock, 3/4", tow, Serial Range: bracket-frame

4шт.

18

280954

NUT,3/4"-10, G5

- 3/4 UNC, tow bracket to frame

2шт.

UK5153

KIT

FRAME UNIT, Includes: Ref. 19 - 22

1шт.

19

K301613

FRAME

SUPPORT FRAME

1шт.

20

K626855

WASHER

- 5/8" (15.875 mm)

4шт.

21

K19485

WASHER

- lock, 5/8"

8шт.

22

K603276

SCREW

SETSCREW - 5/8 UNC x 1-3/4"

8шт.

UK5138

KIT

BALLAST WEIGHT UNIT - use with UK5153, Includes: Ref. 9 - 14

1шт.

9

K203073

WEIGHT

BALLAST WEIGHT - 65lb (29 KG) use with UK5153

16шт.

10

K601472

BOLT

- 3/8 UNC x 9", use with UK5153

2шт.

11

K601473

BOLT

- 3/4 UNC x 10-1/2", use with UK5153

2шт.

12

K19486

WASHER, LOCK

WASHER - lock, 3/4", use with UK5153

8шт.

13

K301633

SPACER

- use with UK5153

2шт.

14

K203078

BAR

LOCKING BAR - use with UK5153

2шт.
