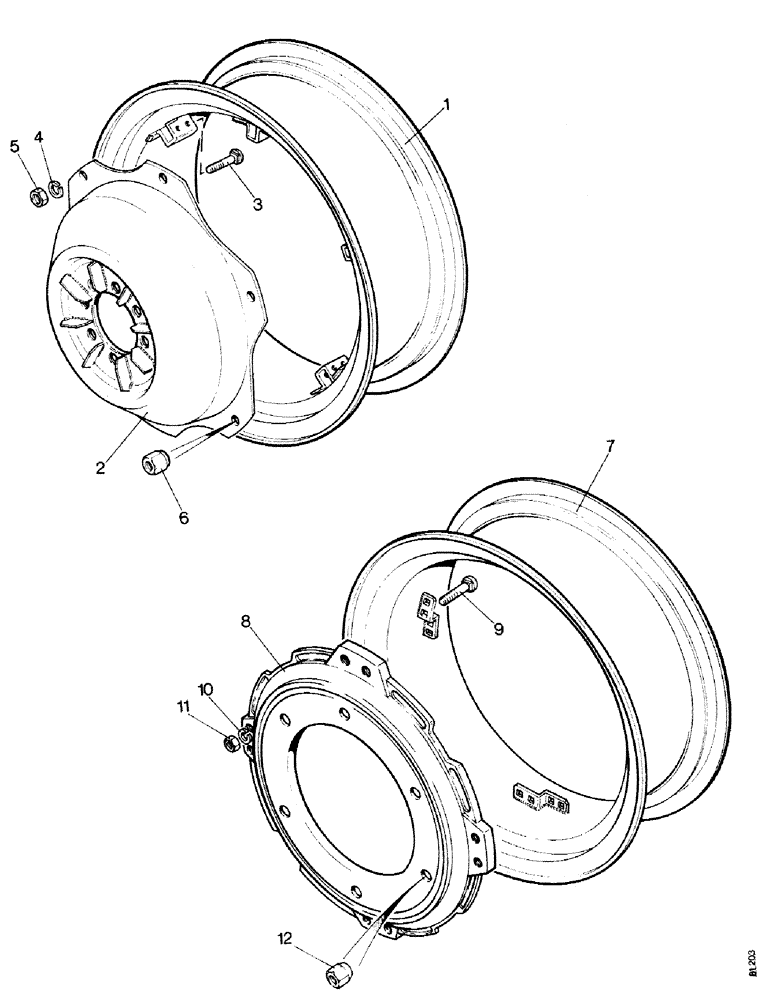

Запчасти Case IH 1490 (T04-1) - FRONT WHEELS AND BALLAST WEIGHTS, MFD TRACTORS (11) - WHEELS & WEIGHTS

K202469

RIM

FRONT WHEEL ASSEMBLY - for 11.2/10-24 tires, David Brown axle, Includes: Ref. 1 - 5

2шт.

1

K301045

RIM

WHEEL RIM - W8 x 24", David Brown axle

1шт.

2

K957145

WHEEL

CENTER - David Brown axle

1шт.

3

K611270

WHEEL BOLT,5/8" - 18 x 2.91", Gr 5

RIM BOLT - 5/8 UNF x 2-7/8", David Brown axle

6шт.

4

K19475

WASHER

- lock, 5/8", David Brown axle

6шт.

5

425-1110

NUT,5/8"-18, G5

David Brown axle 5/8"-18, G5

6шт.

K304225

RIM

FRONT WHEEL ASSEMBLY - for 12.4/11-24 tires, David Brown axle, Includes: Ref. 1 - 5

2шт.

1

K301037

RIM

WHEEL RIM - W10 x 24, David Brown axle

1шт.

2

K957145

WHEEL

CENTER - David Brown axle

1шт.

3

K611270

WHEEL BOLT,5/8" - 18 x 2.91", Gr 5

RIM BOLT - 5/8 UNF x 2-7/8", David Brown axle

6шт.

4

K19475

WASHER

- lock, 5/8", David Brown axle

6шт.

5

425-1110

NUT,5/8"-18, G5

David Brown axle 5/8"-18, G5

6шт.

6

K617171

WHEEL NUT

WHEEL NUT - 5/8 UNF, David Brown axle

16шт.

K204669

WHEEL

FRONT WHEEL ASSEMBLY - for 12.4/11-24 tires, Carraro axle, Includes: Ref. 7 - 11

2шт.

7

K260771

WHEEL

RIM - W10 x 24" (Carraro 111087), Carraro axle

1шт.

8

K260772

DISC, WHEEL

WHEEL CENTER - (Carraro 111086) Carraro axle

1шт.

9

K260259

BOLT

RIM BOLT - (Carraro 106200) Carraro axle

8шт.

10

K965428

BRACKET

WASHER - lock, (Carraro 22863) Carraro axle

8шт.

11

K260261

NUT

- (Carraro 22175) Carraro axle

8шт.

12

K965326

WHEEL NUT

WHEEL NUT - (Carraro 104782) Carraro axle

12шт.
