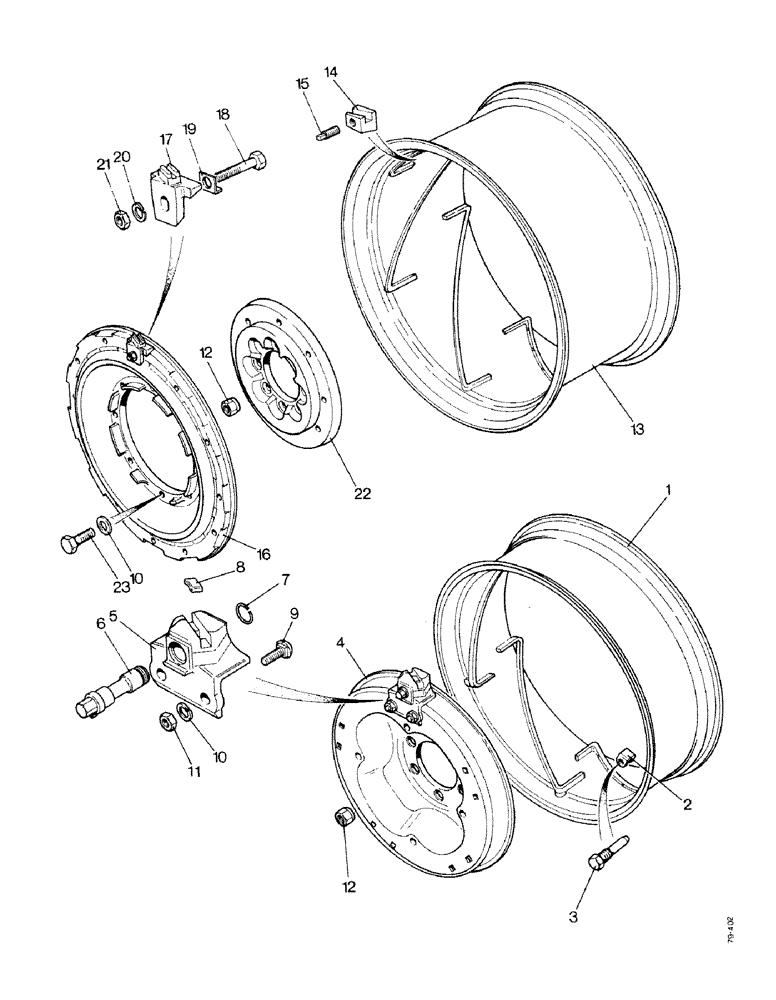

Запчасти Case IH 1490 (T02-1) - POWER ADJUSTED REAR WHEELS (11) - WHEELS & WEIGHTS
№
Артикул
Название
Примечание
Количество
K302514
WHEEL
REAR WHEEL ASSEMBLY - for 18.4/15-30 tires (Machinery item), Includes: Ref. 1 - 11
2шт.
1
K302516
RIM
REAR WHEEL RIM - W14L x 30"
1шт.
2
K917337
STOP
BRACKET
2шт.
3
K200142
SCREW,Hex, 9/16" x 2 1/8"
STOP SCREW - 9/16" UNC
2шт.
4
K302515
WHEEL
REAR WHEEL CENTER
1шт.
5
K917340
SUPPORT
BODY - rim clamp
1шт.
6
K200128
PIN
ECCENTRIC PIN
1шт.
7
K917341
RING
- snap, eccentric pin
1шт.
8
K917342
BLOCK
1шт.
9
K601323
BOLT
- 5/8 UNC x 1-5/8"
10шт.
10
192-25
LOCK WASHER,5/8"
WASHER, LOCK, 5/8"
10шт.
11
K607035
NUT
- 5/8" UNC
10шт.
12
K617176
NUT
WHEEL NUT - 3/4" UNF
16шт.
A161994
RIM
REAR WHEEL ASSEMBLY - for 18.4/15-34 tires (Machinery item)
2шт.
A166564
WHEEL
REAR WHEEL ASSEMBLY - for 18.4 x 34 R1, 6 ply radial tire (Machinery item), Includes: Ref. 13 - 21
2шт.
13
A33170
RIM
REAR WHEEL RIM
1шт.
14
A9406
STOP
BRACKET
2шт.
15
A9440
STOP
SETSCREW - stop bracket
2шт.
16
A33172
WHEEL
REAR WHEEL CENTER
1шт.
17
A33171
CLAMP
RIM CLAMP
6шт.
18
117-604
SQUARE BOLT,3/4" - 10 x 3 1/2", Gr 5
- 3/4 UNC x 3-1/2"
6шт.
19
A34799
LOCK WASHER
- lock
6шт.
20
A161560
WASHER,19.84mm ID x 31.7mm OD x 4.6mm Thk
- clamp nut
6шт.
21
129-593
NUT,Hvy Hex, 3/4" - 10, Gr 5
- 3/4" UNC
6шт.
A163259
WHEEL
REAR WHEEL ASSEMBLY - for 16.9 x 38 tires (Machinery item), Includes: Ref. 13 - 21
2шт.
13
A66197
RIM
REAR WHEEL RIM
1шт.
14
A9406
STOP
BRACKET
4шт.
15
A9440
STOP
SETSCREW - stop bracket
4шт.
16
A33174
WHEEL
REAR WHEEL CENTER
1шт.
17
A33171
CLAMP
RIM CLAMP
6шт.
18
117-604
SQUARE BOLT,3/4" - 10 x 3 1/2", Gr 5
- 3/4 UNC x 3-1/2"
6шт.
19
A34799
LOCK WASHER
- lock
6шт.
20
A161560
WASHER,19.84mm ID x 31.7mm OD x 4.6mm Thk
- clamp nut
6шт.
21
129-593
NUT,Hvy Hex, 3/4" - 10, Gr 5
- 3/4" UNC
6шт.
22
K205028
ADAPTOR - rear wheel
2шт.
23
113-626
BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5
16шт.
10
K19485
WASHER
- lock, 5/8"
16шт.
12
K617176
NUT
WHEEL NUT - 3/4" UNF
16шт.
Выбрано товаров: 38
