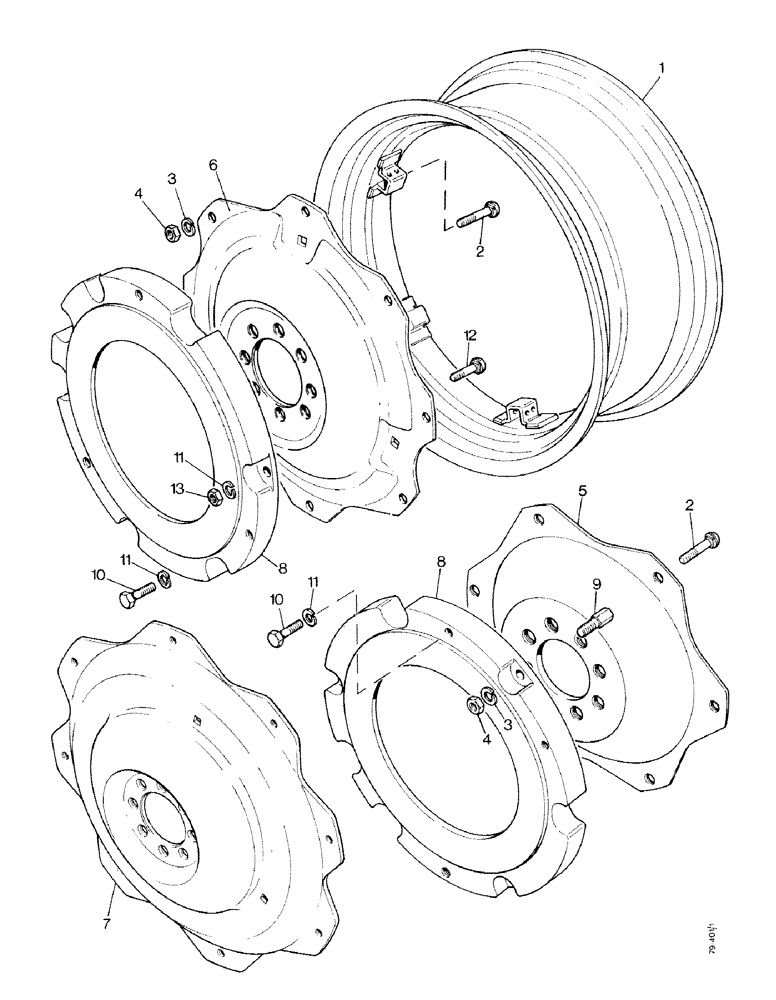

Запчасти Case IH 1490 (T01-1) - REAR WHEELS AND BALLAST WEIGHTS (11) - WHEELS & WEIGHTS

K301014

WHEEL

REAR WHEEL ASSEMBLY - for 18.4/15-30 tires, Includes: Ref. 1- 5

2шт.

1

K301015

RIM

REAR WHEEL RIM - DW14 x 30

1шт.

2

K611270

WHEEL BOLT,5/8" - 18 x 2.91", Gr 5

RIM BOLT - 5/8 UNF x 2-7/8"

6шт.

3

K19475

WASHER

- lock, 5/8"

6шт.

4

425-1110

NUT,5/8"-18, G5

6шт.

5

K301016

WHEEL

REAR WHEEL CENTER

1шт.

K301011

WHEEL

REAR WHEEL ASSEMBLY - for 16.9/14-34 and 18.4 x 34 tires, Includes: Ref. 1 - 6

2шт.

1

K301012

WHEEL

REAR WHEEL RIM - DW14 x 34

1шт.

2

K611270

WHEEL BOLT,5/8" - 18 x 2.91", Gr 5

RIM BOLT - 5/8 UNF x 2-7/8"

6шт.

3

K19475

WASHER

- lock, 5/8"

6шт.

4

425-1110

NUT,5/8"-18, G5

6шт.

6

K301013

DISC, WHEEL

REAR WHEEL CENTER

1шт.

K301008

RIM

REAR WHEEL ASSEMBLY - for 12.6/12-36 tires, Includes: Ref. 1 - 7

2шт.

1

K301009

WHEEL

REAR WHEEL RIM - DW11 x 36

1шт.

2

K611270

WHEEL BOLT,5/8" - 18 x 2.91", Gr 5

RIM BOLT - 5/8 UNF x 2-7/8"

6шт.

3

K19475

WASHER

- lock, 5/8"

6шт.

4

425-1110

NUT,5/8"-18, G5

6шт.

7

K301010

DISC, WHEEL

REAR WHEEL CENTER

1шт.

K301017

RIM

REAR WHEEL ASSEMBLY - for 13.6/12-38 tires, Includes: Ref. 1 - 7

2шт.

1

K301018

WHEEL

REAR WHEEL RIM - DW11 x 38"

1шт.

2

K611270

WHEEL BOLT,5/8" - 18 x 2.91", Gr 5

RIM BOLT - 5/8 UNF x 2-7/8"

8шт.

3

K19475

WASHER

- lock, 5/8"

8шт.

4

425-1110

NUT,5/8"-18, G5

8шт.

7

K301010

DISC, WHEEL

REAR WHEEL CENTER

1шт.

UK729

WHEEL

BALLAST WEIGHT UNIT, Includes: Ref. 2 - 11

1шт.

2

K611280

BOLT

RIM BOLT - 5/8 UNF x 3", use with wheel K301014

6шт.

8

K86167

WEIGHT

BALLAST WEIGHT - 45kg, use with wheel K301014

4шт.

9

K914869

STUD

- 5/8 UNF, special, use with wheel K301014

6шт.

10

K19305

BOLT

- 5/8 BSF x 2", use with wheel K301014

6шт.

11

K19485

WASHER

- lock, 5/8", use with wheel K301014

12шт.

UK184

WHEEL

BALLAST WEIGHT UNIT - use with wheels K301011, K301008 and K301017, Includes: Ref. 8 - 13

3шт.

8

K86167

WEIGHT

BALLAST WEIGHT - 45kg, use with wheels K301011, K301008 and K301017

4шт.

11

K19485

WASHER

- lock, 5/8", use with wheels K301011, K301008 and K301017

6шт.

12

K690452

BOLT

COACH BOLT - 5/8 BSF x 2-7/8", use with wheels K301011, K301008 and K301017

6шт.

13

K19486

WASHER, LOCK

NUT - 5/8 BSF, use with wheels K301011, K301008 and K301017

6шт.
