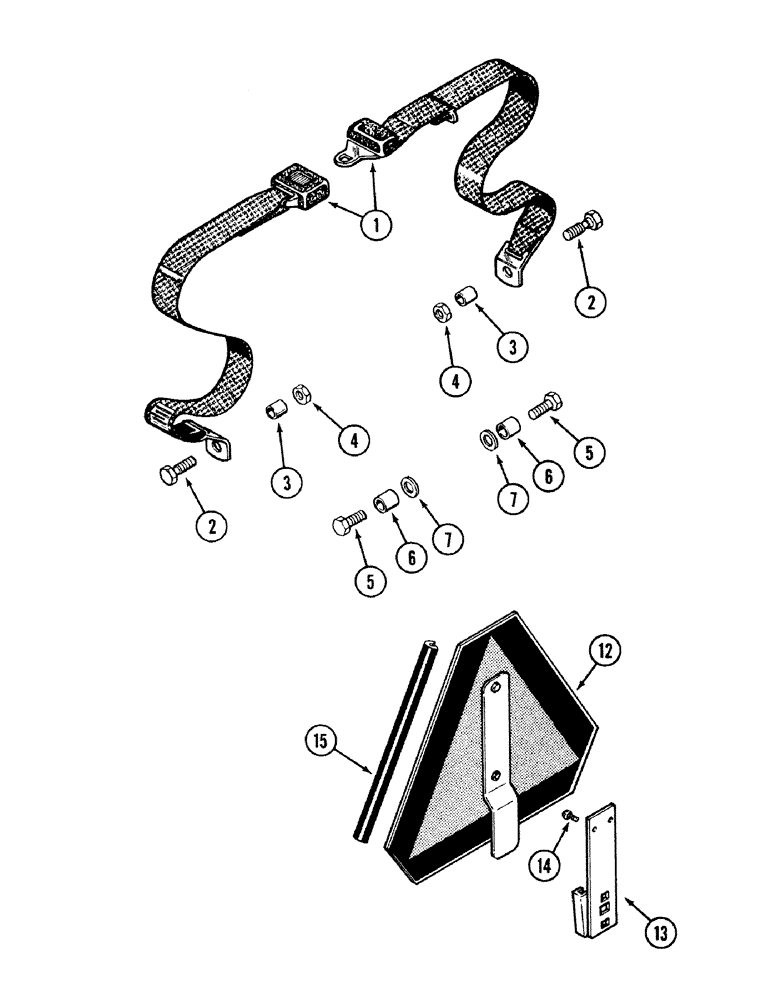

Запчасти Case IH 1490 (T11-1) - SAFETY SEAT BELT (10) - OPERATORS PLATFORM/CAB

1

A160404

SAFETY BELT

BELT - seat safety

1шт.

A164475

HARDWARE PACKAGE - use with standard seat K301471, Includes: Ref. 2 - 4

1шт.

2

A61946

STEP BOLT

BOLT - shoulder, seat belt

2шт.

3

A60907

BUSHING

SPACER - bolt

2шт.

4

131-205

LOCK NUT,5/16"-18

NUT - lock, 5/16-18 UNC, with nylon insert

2шт.

A164476

HARDWARE PACKAGE - use with deluxe seat K301472, Includes: Ref. 5 - 7

1шт.

5

514-711

BOLT,Hex, M10 x 1.25 x 50mm, Cl 8.8

- M10 - 1.25 x 50

2шт.

6

A140435

BUSHING

SPACER - bolt

2шт.

7

95-6

WASHER,3/8"

- flat, 1 x 7/16 x 5/64" (25.4 x 11.112 x 1.984 mm)

2шт.

12

A59450

WARNING SIGN

EMBLEM - SMV, low profile special

1шт.

13

A162667

BRACKET

- mounting SMV, SMV emblem low profile special

1шт.

14

187-1068

SELF-TAP SCREW,Hex Hd, 5/16" x 1/2"

SCREW - 5/16 x 1/2", SMV emblem low profile special

2шт.

15

A165860

TRIM

- emblem (27.4"), SMV emblem low profile special

1шт.
