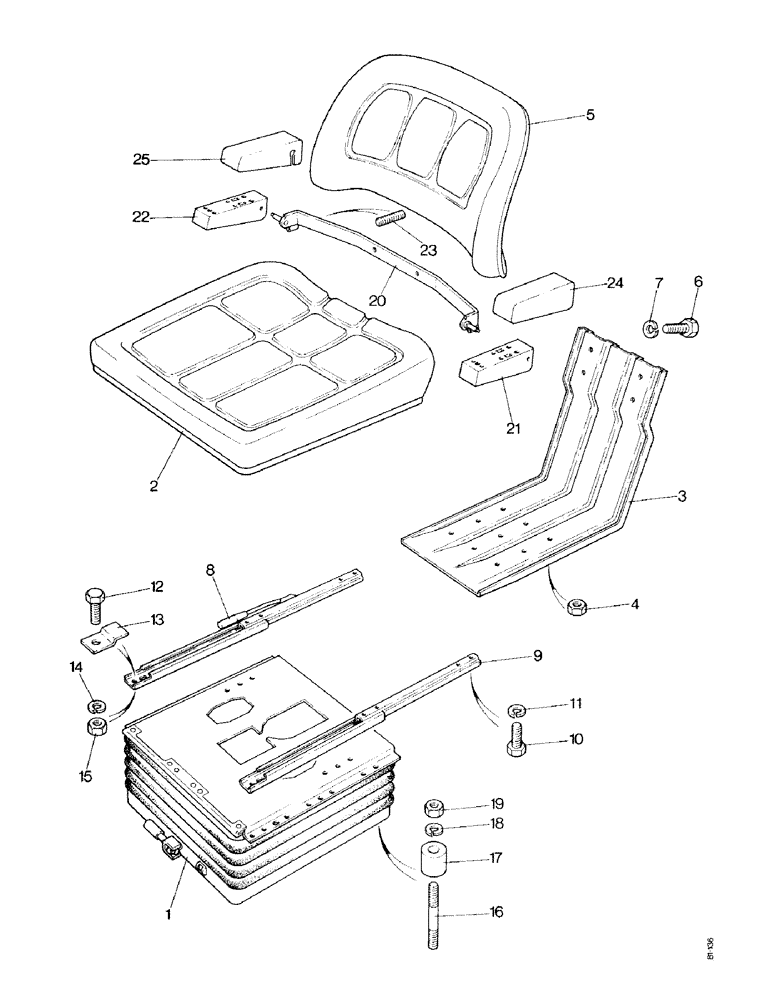

Запчасти Case IH 1490 (T08-1) - SEAT ASSEMBLY, STANDARD, HIGH PLATFORM (10) - OPERATORS PLATFORM/CAB

UK4218

SEAT

AND SUSPENSION ASSEMBLY, Includes: Ref. 1 - 15

1шт.

1

K302740

SUSPENSION

ASSEMBLY - see Figure T10

1шт.

K301471

SEAT

ASSEMBLY, Includes: Ref. 2 - 15

1шт.

2

K260652

CUSHION

- cloth (Grammer 112736)

1шт.

2

K260854

SEAT PLATE

CUSHION - vinyl

1шт.

3

K260653

BACKREST

SUPPORT BRACKET - (Grammer 110278)

1шт.

4

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

6шт.

5

K260651

SEAT

BACKREST - cloth (Grammer 112495)

1шт.

5

K260853

SEAT

BACKREST - vinyl

1шт.

6

K650641

SCREW

SETSCREW - M8 x 16

4шт.

7

K651848

WASHER

- lock, 8 mm

4шт.

8

K964682

SEAT

RUNNER - right-hand (Grammer 107797)

1шт.

9

K260626

SEAT

RUNNER - left-hand (Grammer 113223)

1шт.

10

K964633

SCREW

SETSCREW - M8 x 15 (Grammer 102185)

4шт.

11

K651848

WASHER

- lock, 8 mm

4шт.

12

K964640

SCREW

SETSCREW - M8 x 20 (Grammer 104930)

6шт.

13

K260644

STOP

BRACKET - (Grammer 111562)

1шт.

14

K651848

WASHER

- lock, 8 mm

6шт.

15

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10, Grammer 200060

6шт.

16

K655110

STUD

- M8 x 50, seat to cab floor

4шт.

17

K304093

BUSHING

SPACER - seat to cab floor

4шт.

18

K651848

WASHER

- lock, 8 mm, seat to cab floor

4шт.

19

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10, Seat to Cab Floor

4шт.

UK4220

ARM

REST UNIT, Includes: Ref. 20 - 25

1шт.

20

K260678

ARMREST

BRACKET - (Grammer 112747)

1шт.

21

K260680

ARMREST

SUPPORT - left-hand (Grammer 111493)

1шт.

22

K260679

ARMREST

SUPPORT - right-hand (Grammer 111506)

1шт.

23

K260681

SCREW

ADJUSTING SCREW - (Grammer 111502)

2шт.

24

K260677

ARM

PAD - left-hand (Grammer 111491)

1шт.

25

K260676

ARM

PAD - right-hand (Grammer 111504)

1шт.
