Запчасти Case IH 1490 (T07-1) - SEAT ASSEMBLY, LOW PROFILE (10) - OPERATORS PLATFORM/CAB

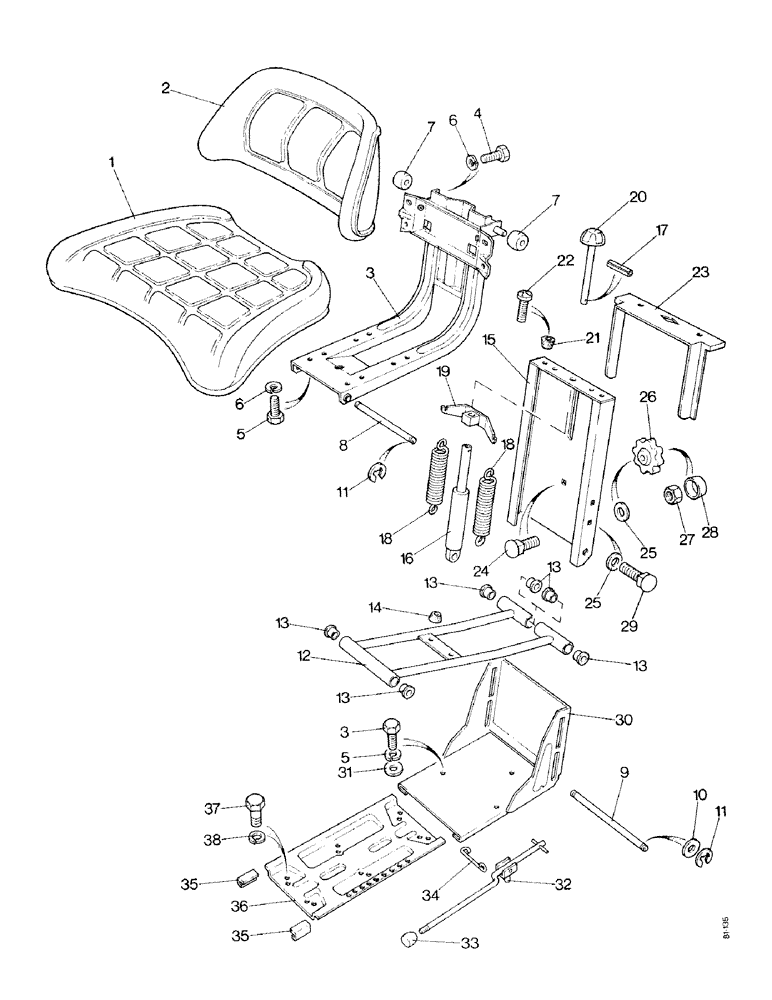

Схема запчастей Case IH 1490 - (T07-1) - SEAT ASSEMBLY, LOW PROFILE (10) - OPERATORS PLATFORM/CAB
20
27
31
1
38
25
12
4
5
10
13
33
5
11
18
2
28
13
11
13
22
6
14
26
17
3
9
13
13
7
35
19
16
29
21
3
7
37
35
30
32
15
36
23
24
6
8
25
34

Артикул

Название

Примечание

Количество

K300771

SEAT

ASSEMBLY - operator, Includes: Ref. 1 - 36

1шт.

1

K260656

SEAT COVER

SEAT - (Grammer 112680)

1шт.

2

K260655

SEAT

BACKREST - (Grammer 112681)

1шт.

3

K260658

SEAT

SUPPORT BRACKET - (Grammer 112682)

1шт.

4

K650029

SCREW

SETSCREW - M8 x 20

4шт.

5

K650641

SCREW

SETSCREW - M8 x 16

6шт.

K301470

SEAT

SUSPENSION ASSEMBLY - seat (Order UK302740)

1шт.

6

K651848

WASHER

- lock, 8 mm

10шт.

7

K260659

ROLLER

NYLON ROLLER - (Grammer 200001)

2шт.

8

K260661

SHAFT

PIVOT PIN - front (Grammer 112028)

1шт.

9

K260672

SHAFT

PIVOT PIN - rear (Grammer 112012)

1шт.

10

K651780

WASHER

- 12 mm

4шт.

11

A27795

RING

- snap, 3/8" (9.525 mm) external

4шт.

12

K260663

BEAM

LINK - (Grammer 112684)

1шт.

13

K962431

BUSHING

NYLON BUSHING - (Grammer 200008)

6шт.

14

K260664

STOP

BUFFER - (Grammer 109172)

2шт.

15

K260667

SUPPORT

FRAME - (Grammer 112685)

1шт.

16

K260660

DAMPER

- (Grammer 110573)

1шт.

17

K964818

PIVOT

PIN - 4 x 25 mm (Grammer 102953)

1шт.

18

K962437

SPRING

- (Grammer 200628)

2шт.

19

K260666

SPRING

ANCHOR - (Grammer 108378)

1шт.

20

K260665

KNOB

AND SPINDLE - (Grammer 112030)

1шт.

21

K963471

BUSHING

RUBBER BUFFER - (Grammer 200811)

2шт.

22

K963472

SCREW

- buffer

2шт.

23

K260668

COVER

PLASTIC COVER - (Grammer 112686)

1шт.

24

K260662

BOLT

- M10 x 35

1шт.

25

K963468

WASHER

- 10 mm

6шт.

26

K260671

KNOB

HAND NUT - (Grammer 112025)

1шт.

27

K651628

NUT

- M10

2шт.

28

K260670

CAP

PLASTIC CAP - (Grammer 900127)

1шт.

29

K963470

BOLT

- M10, special

2шт.

30

K260669

SUPPORT

BASE FRAME - (Grammer 112687)

1шт.

31

K964793

WASHER

- 8 mm

2шт.

32

K260674

LEVER

ADJUSTING LEVER - (Grammer 112689), Includes: Ref. 33

1шт.

33

K260675

KNOB

- adjusting lever (Grammer 107915)

1шт.

34

K260673

SPRING

- (Grammer 112194)

1шт.

35

K260657

BRACKET

SLIDER BLOCK - (Grammer 112185)

4шт.

36

K260537

BASE

PLATE - (Grammer 112688)

1шт.

37

K650660

BOLT

- M10 x 25, Serial Range: seat-tractor

4шт.

38

K651849

WASHER

- lock, 10 mm, Serial Range: seat-tractor

4шт.

Выбрано товаров: 40
