Запчасти Case IH 1490 (P15-1) - CAB, PLENUM, BLOWER AND ELECTRICAL (10) - OPERATORS PLATFORM/CAB

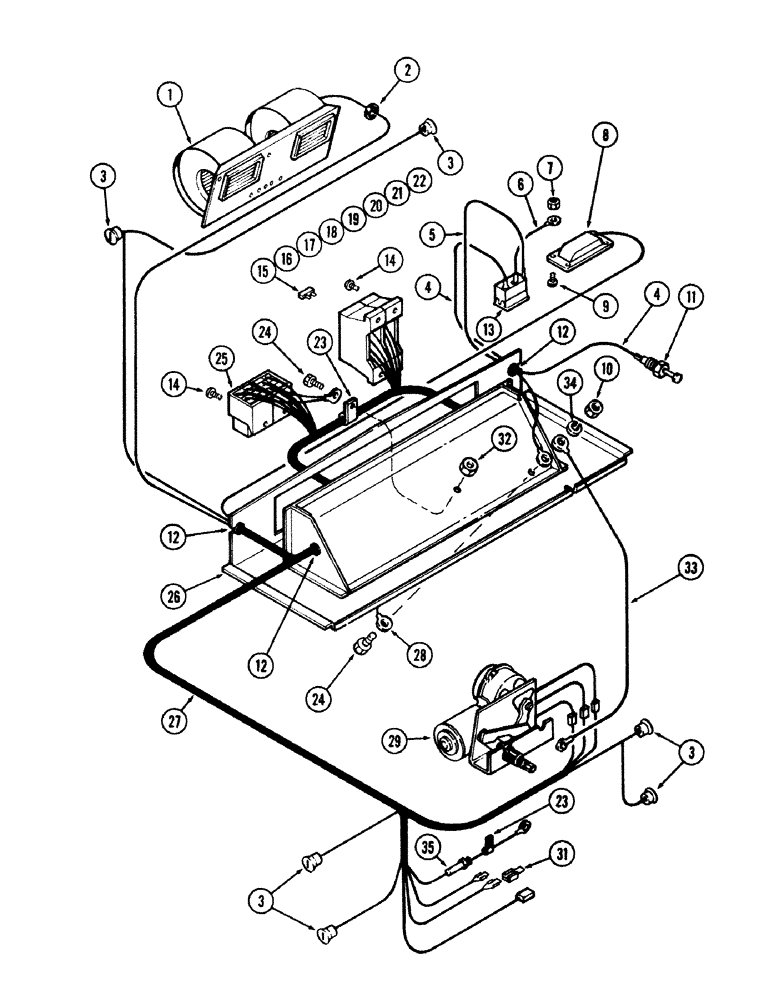

Схема запчастей Case IH 1490 - (P15-1) - CAB, PLENUM, BLOWER AND ELECTRICAL (10) - OPERATORS PLATFORM/CAB
6
28
16
7
33
11
19
26
5
9
13
23
8
4
4
3
15
24
21
25
24
10
3
12
22
17
34
18
32
3
14
1
14
12
3
35
31
27
2
23
29
20
12

Артикул

Название

Примечание

Количество

1

A176904

BLOWER

AND CAPACITOR ASSEMBLY - (Sims A-1700-1705)

1шт.

2

A167409

GROMMET

- (3/8 hole) (Sims 600-1083)

1шт.

3

F64468

BUSHING

- terminal (Sims A-600-1848)

6шт.

4

F64127

ELECTRICAL WIRE

CABLE - dome light (Door) (Sims A-1700-1698)

1шт.

5

REF

INSTRUCTION

CABLE - ground - dome light (Sims A-1700-1706)

1шт.

6

F64126

ELECTRICAL WIRE

CABLE - light switch (Sims A-1700-1697) prior to serial number 17402-1

1шт.

Also include serial numbers 17408-1, 17412-1, 17413-1, 17417-1, 17420-1 - 17423-1, 17425-1, 17427-1, 17430-1, 17433-1, 17439-1, 17443-1 - 17445-1 and 17450-1.

1шт.

7

129-15

NUT,#6-32

(Sims 60-311-43) prior to S/N 17402-1 #6-32

1шт.

Also include serial numbers 17408-1, 17412-1, 17413-1, 17417-1, 17420-1 - 17423-1, 17425-1, 17427-1, 17430-1, 17433-1, 17439-1, 17443-1 - 17445-1 and 17450-1.

1шт.

8

F89772

LAMP

- dome (See Figure P09-1) (Sims A-600-1823)

1шт.

9

182-46

SCREW,Sl Pan Hd, #6 - 32 x 1/2"

- pan head - slot (#6-32 x 1/2) (Sims 14-32-04-66) prior to serial number 17402-1 Also include serial numbers 17408-1, 17412-1, 17413-1, 17417-1, 17420-1 -17423-1, 17425-1, 17427-1, 17430-1, 17433-1, 17439-1, 17443-1 - 17445-1 and 17450-1.

1шт.

Also include serial numbers 17408-1, 17412-1, 17413-1, 17417-1, 17420-1 - 17423-1, 17425-1, 17427-1, 17430-1, 17433-1, 17439-1, 17443-1 - 17445-1 and 17450-1.

1шт.

10

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5 (Sims 6-300-43)

1шт.

11

F63895

SWITCH

- dome light (See Figure P05-1) (Sims A-600-1800)

1шт.

12

A167411

GROMMET

- cut-diagonal (Sims A-600-1859)

3шт.

13

F64130

SWITCH

- dome light (See Figure P09-1) (Sims A-600-1805)

1шт.

14

187-331

SELF-TAP SCREW,Slotted Pan Hd, #10 x 3/4"

SCREW - pan head self tap (#10-16 x 3/4) (Sims 18-01-06-71)

6шт.

15

A149802

FUSE

- 20 amp - blower (Sims A-600-1878)

1шт.

16

A149801

FUSE,Lt Blue, 15 Amp

- 15 amp - wiper (Sims A-600-1879)

1шт.

17

A149799

FUSE

- 7.5 amp - lighter (Sims A-600-1880)

1шт.

18

REF

INSTRUCTION

FUSE - 7.5 amp - rear wiper (Sims A-600-1980)

1шт.

19

A149800

FUSE,10 Amp

- 10 amp - RH floods (Sims A-600-1876)

1шт.

20

A149800

FUSE,10 Amp

- 10 amp - LH floods (Sims A-600-1876)

1шт.

21

A149800

FUSE,10 Amp

- 10 amp - rear floods (Sims A-600-1876)

1шт.

22

A149796

FUSE

- 3 amp - dome light (Sims A-600-1877)

1шт.

23

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

- closed - insulated (Sims 600-1667)

2шт.

24

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

(Sims 25-20-06-06) Hex, 1/4"-20 x 3/4", G5, Full Thd

2шт.

25

A149811

RELAY

- plug-in module (Sims A-600-1874)

2шт.

26

REF

INSTRUCTION

AIR DUCT ASSEMBLY (Sims D-1300-1607) prior to serial number 17402-1

1шт.

Also include serial numbers 17408-1, 17412-1, 17413-1, 17417-1, 17420-1 - 17423-1, 17425-1, 17427-1, 17430-1, 17433-1, 17439-1, 17443-1 - 17445-1 and 17450-1.

1шт.

26

A167412

AIR INTAKE TUBE

AIR DUCT ASSEMBLY - (Sims D-1300-1706) serial number 17402-1 and after

1шт.

27

A167413

HARNESS - cab wiring (Sims D-1700-1685) prior to serial number 16800-1

1шт.

27

A167414

HARNESS - cab wiring (Sims D-1700-1685A) serial number 17402-1 - 16800-1

1шт.

Also include serial numbers 17408-1, 17412-1, 17413-1, 17417-1, 17420-1 - 17423-1, 17425-1, 17427-1, 17430-1, 17433-1, 17439-1, 17443-1 - 17445-1 and 17450-1.

1шт.

27

A167415

HARNESS

- cab wiring (Sims D-1700-1685A) serial number 16800-1 and after

1шт.

28

REF

INSTRUCTION

WIRE ASSEMBLY - ground - lighter (Sims A-1700-1721)

1шт.

29

F98108

WIPER

MOTOR - wiper (See Figure P20-1) (Sims C-1700-1709)

1шт.

31

A167416

ADAPTER - terminal (Sims A-600-1867)

1шт.

32

86625061

NUT,1/4"-20, GB

NUT - lock - nylon insert (1/4-20) (Sims 60-300-40)

1шт.

33

A167417

CABLE

- ground - duct (Sims A-1700-1722)

1шт.

34

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, (Sims 60-200-95) 1/4"

1шт.

35

A167418

FUSE

- 30 amp - Slo Blo (Sims A-600-1875) prior to serial number 17402-1

1шт.

Also include serial numbers 17408-1, 17412-1, 17413-1, 17417-1, 17420-1 - 17423-1, 17425-1, 17427-1, 17430-1, 17433-1, 17439-1, 17443-1 - 17445-1 and 17450-1.

1шт.
