Запчасти Case IH 1490 (P13-1) - CAB, AIR CONDITIONING SYSTEM (10) - OPERATORS PLATFORM/CAB

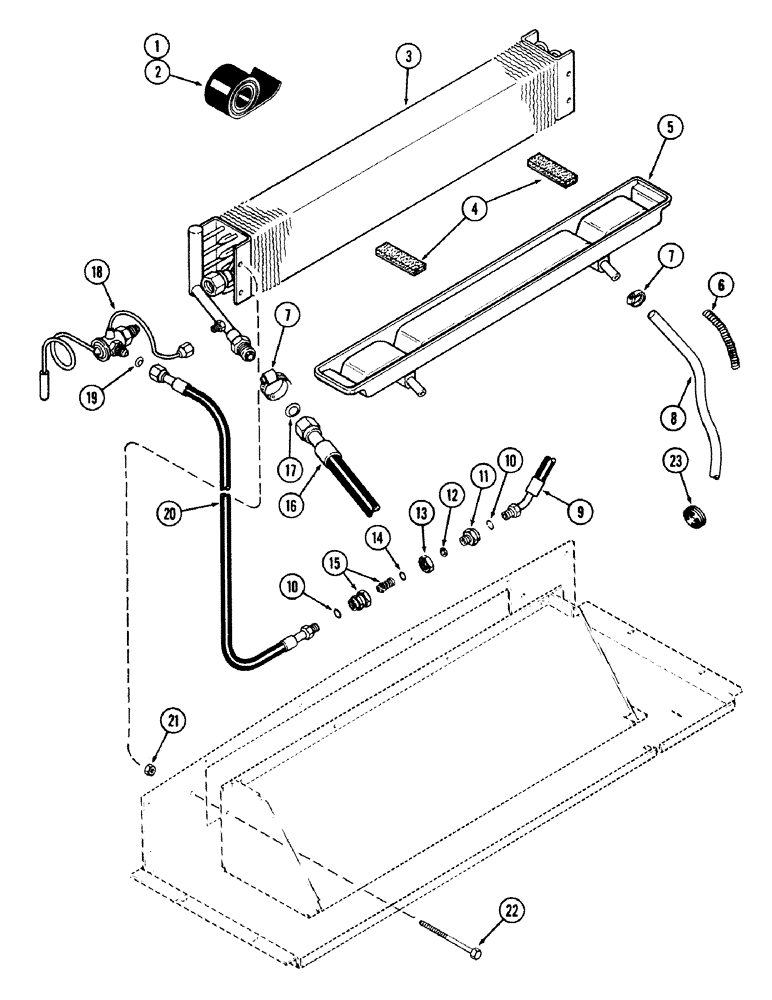

Схема запчастей Case IH 1490 - (P13-1) - CAB, AIR CONDITIONING SYSTEM (10) - OPERATORS PLATFORM/CAB
16
13
12
23
14
18
22
11
21
17
1
5
7
7
3
8
9
15
20
4
2
19
6
10
10

Артикул

Название

Примечание

Количество

1

A42902

SEALING STRIP

INSULATION - tape, 12" (304.8 mm) (Sims A-600-1858)

4шт.

2

A42902

SEALING STRIP

INSULATION - tape - roll, Serial Range: (Cut-length)

1шт.

3

F63870

EVAPORATOR

- evaporator - freon - 12 (Sims A-600-1798)

1шт.

4

F63670

SEAL

- A/C core to pan (Sims A-1500-1185) prior to serial number 17402-1

2шт.

Also include serial numbers 17408-1, 17412-1, 17413-1, 17417-1, 17420-1 - 17423-1, 17425-1, 17427-1, 17430-1, 17433-1, 17439-1, 17443-1 - 17445-1 and 17450-1.

1шт.

5

F63684

PAN

- A/C water (Sims A-600-1793) prior to serial numnber 17402-1

1шт.

Also include serial numbers 17408-1, 17412-1, 17413-1, 17417-1, 17420-1 - 17423-1, 17425-1, 17427-1, 17430-1, 17433-1, 17439-1, 17443-1 - 17445-1 and 17450-1.

1шт.

5

F64487

PAN

- A/C water (Sims A-600-1920) serial number 17402-1 and after

1шт.

6

F63327

SPRING

- (Sims A-600-1829) prior to serial number 17402-1

2шт.

Also include serial numbers 17408-1, 17412-1, 17413-1, 17417-1, 17420-1 - 17423-1, 17425-1, 17427-1, 17430-1, 17433-1, 17439-1, 17443-1 - 17445-1 and 17450-1.

1шт.

7

214-252

HOSE CLAMP,#08, 0.5" - 0.91", Type F Worm

CLAMP - hose - adjustable (Sims 600-1358)

3шт.

8

A42697

HOSE - A/C drain (Sims A-600-1771) prior to serial number 17402-1

2шт.

Also include serial numbers 17408-1, 17412-1, 17413-1, 17417-1, 17420-1 - 17423-1, 17425-1, 17427-1, 17430-1, 17433-1, 17439-1, 17443-1 - 17445-1 and 17450-1.

1шт.

8

F64505

HOSE

- A/C drain (Sims A-600-1916) serial number 17402-1 and after

2шт.

9

A145898

HOSE

- dryer to cab (Sims A-600-1781)

1шт.

10

A61195

O-RING,0.364" ID x 0.5" OD

- packing (Sims A-600-1773)

2шт.

11

A61196

COUPLING, BREAK AWAY

COUPLING - half (Sims A-600-1774)

1шт.

12

A42667

GASKET

- coupling (Sims A-600-1837)

1шт.

13

REF

INSTRUCTION

NUT - jam - coupling (Sims A-600-1862)

1шт.

14

A42665

O-RING,0.239" ID x 0.375" OD x 0.07"

- piston (Sims A-600-1836)

1шт.

15

A42663

COUPLING,1/2" - 20 NPT

COUPLING - A/C (Sims A-600-1770)

1шт.

16

F64305

HOSE

ASSEMBLY - air conditioning (Sims A-600-1842)

1шт.

17

222-996

GASKET,3/4 Tube, Fl, Copper

- 45 degree - copper (3/4) (Sims A-600-1850)

1шт.

18

F64389

VALVE

- expansion (Sims A-600-1819)

1шт.

19

A62229

GASKET

- 45 degree - copper (3/8) (Sims A-600-1775)

1шт.

20

F64304

HOSE

- A/C pressure (Sims A-600-1816)

1шт.

21

86625061

NUT,1/4"-20, GB

NUT - lock, (1/4-20) (See Figure P12-1) (Sims 60-300-40)

8шт.

22

113-49

BOLT,Hex, 1/4" - 20 x 4", Gr 5

- hex (1/4-20 x 4) (See Figure P12-1) (Sims 25-20-32-06)

8шт.

23

353-469

GROMMET - plastic (Sims 600-1546)

2шт.

Выбрано товаров: 29
