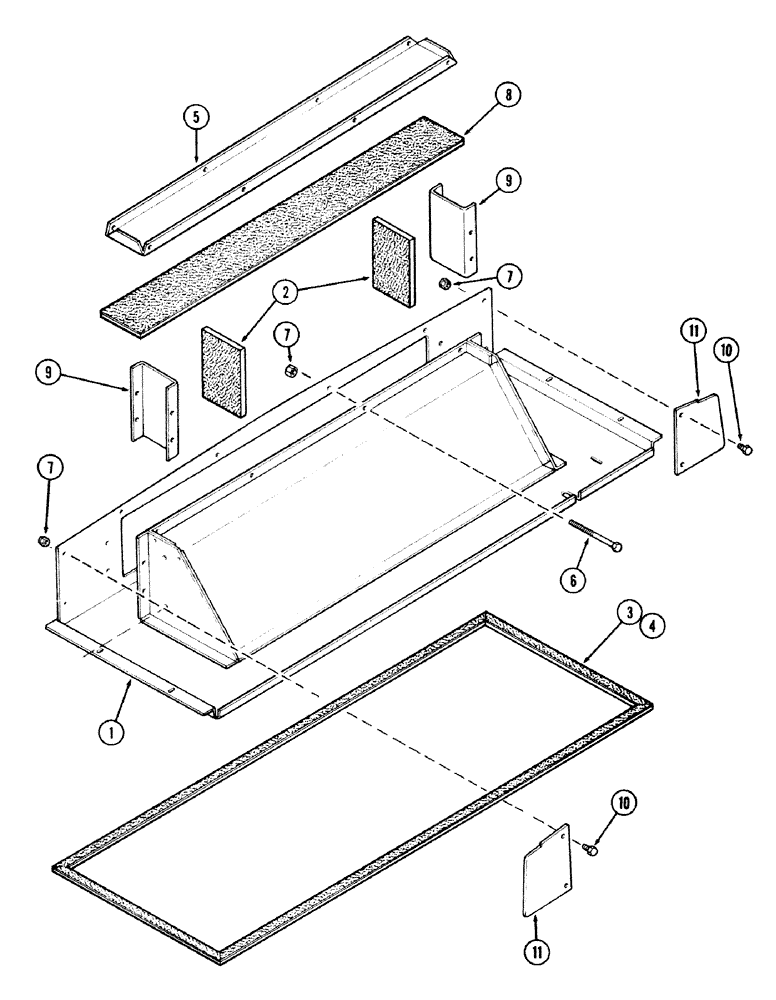

Запчасти Case IH 1490 (P11-1) - CAB, PLENUM (10) - OPERATORS PLATFORM/CAB

1

A167402

AIR INTAKE TUBE

AIR DUCT ASSEMBLY - (See Figure P16-1) (Sims D-1300-1607)

1шт.

2

A167403

FOAM

SEAL - duct end (Heater only) (Sims A-1500-2100)

2шт.

3

F64119

SEALING STRIP

SEAL - duct, 1/16 x 1 x 111-1/2 (1.588 x 25.4 x 2832.1 mm) (Sims A-1500-1183)

1шт.

4

F64119

SEALING STRIP

STRAP - seal, 100' (30.48 M) roll, Serial Range: (Cut-length)

1шт.

5

REF

INSTRUCTION

COVER - duct (Sims B-1400-9576)

1шт.

6

113-49

BOLT,Hex, 1/4" - 20 x 4", Gr 5

- hex head (1/4-20 x 4) (Grade 5) (Sims 25-20-32-06)

8шт.

7

86625061

NUT,1/4"-20, GB

NUT - lock, nylon insert (1/4-20) (Sims 60-300-40)

12шт.

8

F63671

SEAL

- duct lid (Sims A-1500-1186)

1шт.

9

A167405

FILLER

END - air duct filter (Heater only) (Sims A-1400-9579)

2шт.

10

113-39

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

- hex head (1/4-20 x 1/2) (Sims 25-20-04-06)

4шт.

11

A167406

FILLER

- side (Sims A-1400-9568)

2шт.
