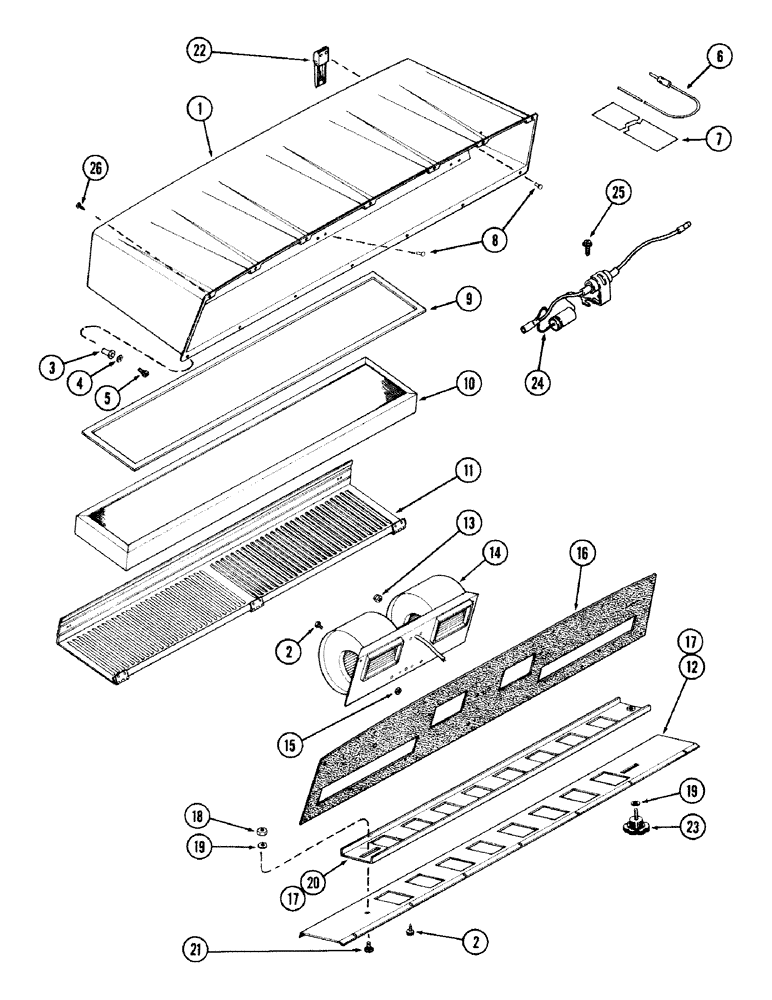

Запчасти Case IH 1490 (P10-1) - CAB, AIR FILTER AND BLOWER (10) - OPERATORS PLATFORM/CAB

1

F64058

FILTER

HOUSING - blower and filter (Sims A-600-1801)

1шт.

2

187-1088

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - hex washer head self tap (#10-16 x 1/2) (Sims 18-02-04- 72)

17шт.

3

F64374

NUT

PLUG NUT - (#10-32) (Sims A-600-1847)

7шт.

4

195-513

WASHER,#10

- flat (3/16) (Sims 60-000-96)

7шт.

5

182-557

SCREW,Cross Pan Hd, #10-32 x 3/4"

- pan head - slot (#10-32 x 3/4) (Sims 18-32-06-66)

7шт.

6

F64182

CABLE

- aerial (Sims A-600-1808)

1шт.

7

F64186

TAPE

- aerial (Sims A-600-1810)

1шт.

8

151-547

RIVET - pop (1/8) (Sims A-600-1855)

10шт.

9

F63669

SEAL

- filter (Sims A-1500-1184)

1шт.

10

F64318

AIR FILTER

FILTER (Sims A-600-1817)

1шт.

11

F89926

COVER

ASSEMBLY - filter (Sims A-1700-1700)

1шт.

12

REF

INSTRUCTION

PLATE - air circulating (Sims B-1400-9477)

1шт.

13

86625061

NUT,1/4"-20, GB

NUT - lock - nylon insert (1/4-20) (Sims 6-300-40)

2шт.

14

A176904

BLOWER

ASSEMBLY - (Sims A-600-1830)

1шт.

Ref. 14 - P/N is A176904, see 1690 catalog on Figure P11/2.

1шт.

15

REF

INSTRUCTION

GROMMET - (3/8 hole) (See Figure P16-1) (Sims 600-1083)

1шт.

16

F63592

SEAL

- housing (Sims A-1500-1182)

1шт.

17

B17170

SPARE PART

PAINT - black - low gloss (Sims 600-1122)

1шт.

18

131-203

LOCK NUT,3/8"-16, GB, LH

NUT - lock - nylon insert (3/8-16) (Sims 60-302-40)

1шт.

19

195-525

WASHER,3/8", SAE

- flat (3/8) (Sims 60-102-96)

2шт.

20

A167401

DOOR

ASSEMBLY - welded (Sims A-1300-1600)

1шт.

21

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

(Sims 38-16-06-06) Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

22

F64066

LATCH

- filter cover (Sims A-600-1803)

2шт.

23

REF

INSTRUCTION

KNOB - window holdout (Sims 600-156)

1шт.

24

F64184

CAPACITOR

ASSEMBLY - noise (Sims A-600-1832)

1шт.

25

187-1088

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - hex, washer head self tap (#10-16 x 1/2) (Sims 18-02-04- 72)

1шт.

26

187-1084

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW - hex washer head self tap (#10 x 3/4) (Sims 18-02-06-72)

7шт.
