Запчасти Case IH 1490 (P08-1) - CAB, BATTERY HOLDER (10) - OPERATORS PLATFORM/CAB

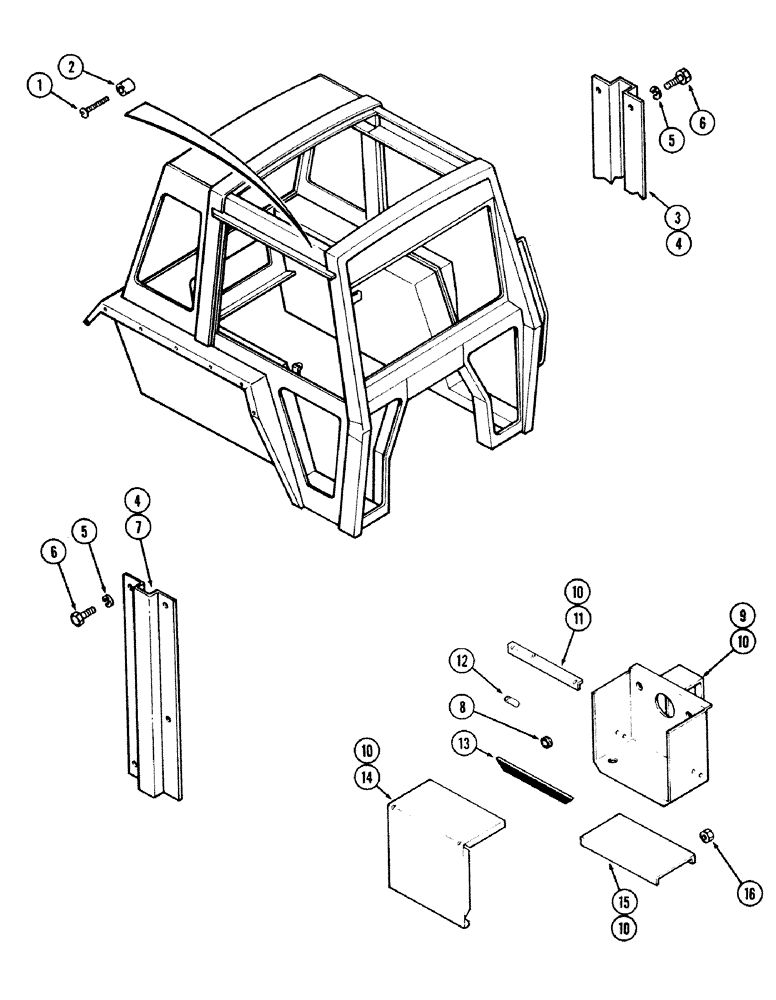

Схема запчастей Case IH 1490 - (P08-1) - CAB, BATTERY HOLDER (10) - OPERATORS PLATFORM/CAB
11
10
3
9
4
8
2
4
14
10
1
15
5
10
13
5
6
16
12
10
7
6

Артикул

Название

Примечание

Количество

1

187-1752

SCREW - pan head self tap (1/4-20 x 1-1/2) (Sims 25-02-12-71) prior to serial number 18127-1

3шт.

2

A167349

SPACER

- plexiglass (15/16" long) (Sims A-1700-1724) prior to serial number 18127-1

3шт.

3

A167351

CHANNEL

- LH wire (Sims B-1400-9589)

1шт.

4

B17410

PAINT

- power white (Sims 600-1143)

1шт.

5

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Sims 60-202-95) 3/8"

4шт.

6

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

(Sims 38-16-06-06) Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

7

A167352

CHANNEL

- RH wire (Sims B-1400-9590)

1шт.

8

A167390

GROMMET

- plastic (1-1/16 dia. hole) (A/C only) (Sims 600-1544) prior to serial number 18032-1

2шт.

8

A167391

GROMMET

- rubber (A/C only) (Sims A-600-1977) serial number 18032-1 and after

2шт.

9

REF

INSTRUCTION

BATTERY BOX ASSEMBLY - welded (A/C only) (Sims C-1300-1621) prior to serial number 16301-1

1шт.

9

A167392

BATTERY BOX

ASSEMBLY - welded (A/C only) (Sims C-1300-1621A) serial number 16301-1 and after

1шт.

10

B17166

PAINT

- power red (Sims 600-1131)

1шт.

11

A167393

NOZZLE HOLDER

HOLDDOWN - battery (A/C only) (Sims B-1400-9634)

1шт.

12

A167394

SPACER

- plexiglass (1-5/16" long) (A/C only) (Sims A-1700-1729)

2шт.

13

REF

INSTRUCTION

SEAL - cover (A/C only) (Sims A-1500-2099)

1шт.

14

REF

INSTRUCTION

COVER ASSEMBLY - welded (A/C only) (Sims B-1300-1629) prior to serial number 16301-1

1шт.

14

A167395

COVER

ASSEMBLY - (A/C only) (Sims C-1400-9635) serial number 16301-1 and after

1шт.

15

A167396

RISER - battery box (A/C only) (Sims B-1400-9735)

1шт.

16

REF

INSTRUCTION

NUT - M6 x 1 hex (A/C only) (Sims 60-302-113)

2шт.

Выбрано товаров: 19
