Запчасти Case IH 1490 (P07-1) - CAB, ACOUSTICAL COVERS (10) - OPERATORS PLATFORM/CAB

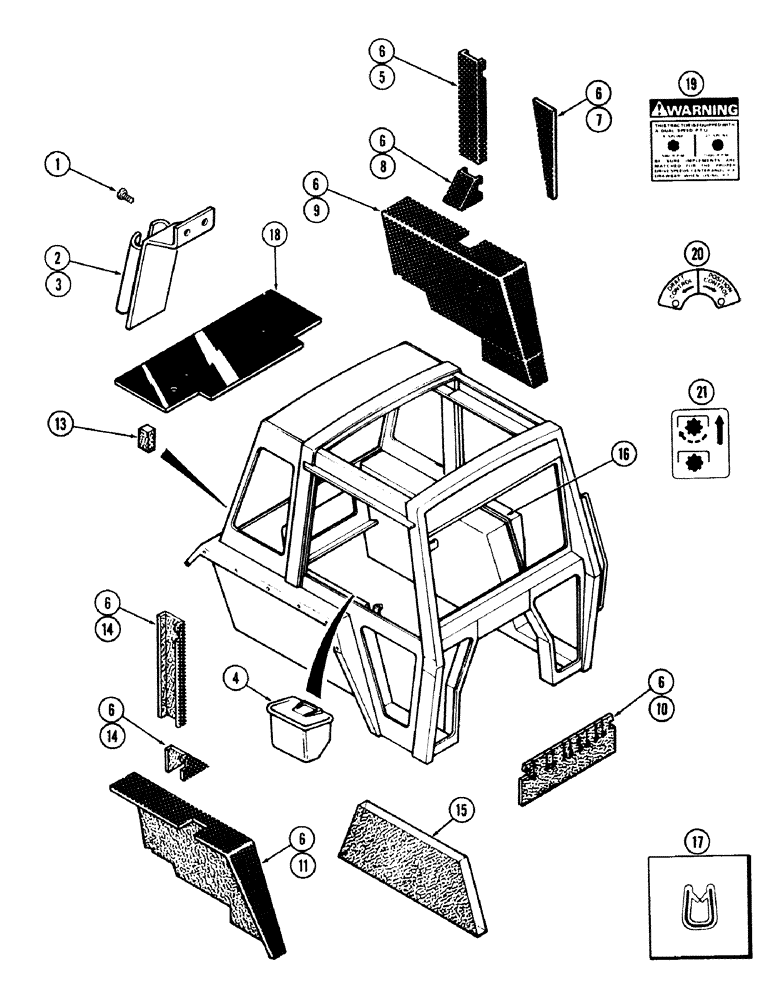

Схема запчастей Case IH 1490 - (P07-1) - CAB, ACOUSTICAL COVERS (10) - OPERATORS PLATFORM/CAB
2
14
1
13
6
14
6
19
16
6
6
6
6
9
20
8
10
3
11
6
6
4
5
17
21
18
7
15

Артикул

Название

Примечание

Количество

1

187-1746

SCREW

- pan head self tap (1/4-20 x 1/2) (Sims 25-20-04-70)

2шт.

2

REF

INSTRUCTION

SMV BRACKET - assembly, welded (Sims A-1300-1606A)

1шт.

3

B17170

SPARE PART

PAINT - black - low gloss (Sims 600-1122)

1шт.

4

D83138

ASH TRAY

(Sims 600-1579)

1шт.

5

A167380

COVER - tube - LH (Sims B-1500-2088)

1шт.

6

345-43

ADHESIVE (Sims 600-1056)

1шт.

7

A167381

COVER - lower side (Sims B-1500-2087)

1шт.

8

A167382

COVER - gusset - LH (Sims B-1500-2090)

1шт.

9

A167383

COVER

- fender well - LH (Sims B-1700-1713)

1шт.

10

REF

INSTRUCTION

FOAM - acoustic (Sims C-1500-2092)

1шт.

11

A167385

COVER

- fender well - RH (Sims B-1700-1714)

1шт.

12

A167386

COVER

- gusset - RH (Sims B-1500-2091)

1шт.

13

A167387

SEAL STRIP - (5/8 x 5/8 x 1-1/2) (Sims 948-0014)

2шт.

14

A167388

COVER - tube RH (Sims B-1500-2089)

1шт.

15

A167389

BATT - fiberglass (Sims B-1500-2177)

4шт.

16

F64277

SEAL

WINDLACE - lower rear door opening, Serial Range: (Cut-length)

1шт.

17

F64277

SEAL

TRIM - window 50' (15.24 M) roll, Serial Range: (Cut-length)

1шт.

18

REF

INSTRUCTION

MAT - rear, cab floor (Sims B-1500-2169)

1шт.

19

321-3901

DECAL

- reversible shaft PTO warning (Sims A-600-2016)

1шт.

20

K956578

DECAL

- draft position control (Sims A-600-2058)

1шт.

21

REF

INSTRUCTION

DECAL - PTO clutch and gear levers (Sims A-600-2005)

1шт.

Выбрано товаров: 21
