Запчасти Case IH 1490 (P06-1) - CAB, GLASS (10) - OPERATORS PLATFORM/CAB

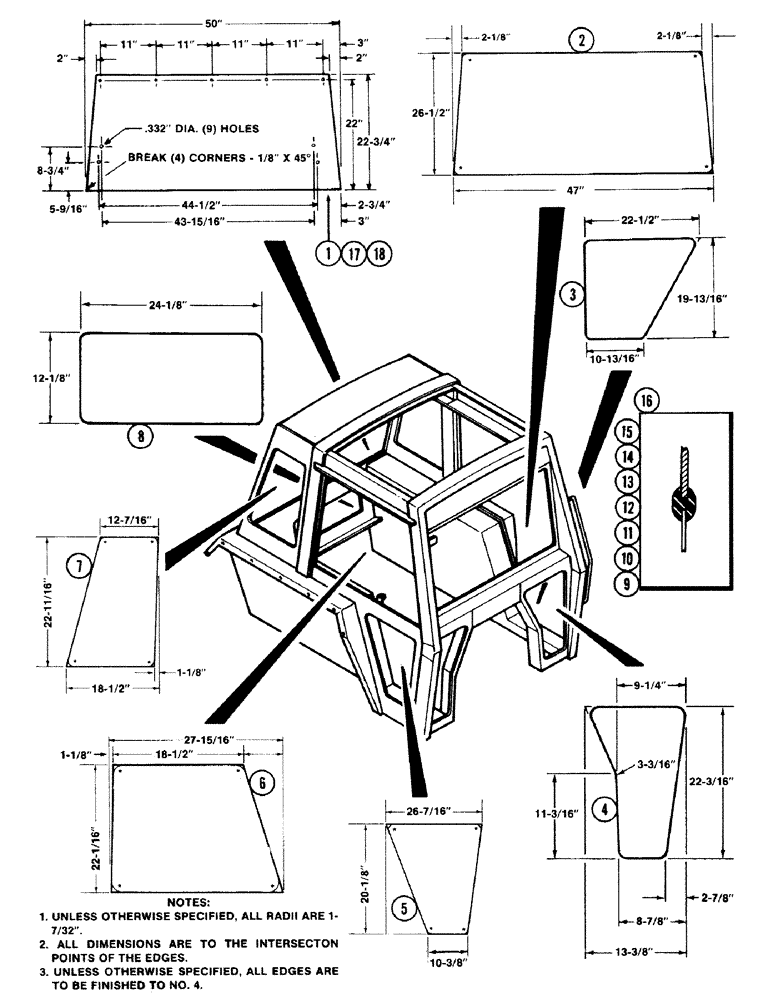

Схема запчастей Case IH 1490 - (P06-1) - CAB, GLASS (10) - OPERATORS PLATFORM/CAB
2
10
9
5
8
6
12
14
17
13
1
4
16
7
11
3
15
18

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

GLASS - rear window (Sims C-1100-0414B)

1шт.

2

REF

INSTRUCTION

GLASS - windshield (Sims C-1100-0414A)

1шт.

3

REF

INSTRUCTION

GLASS - lower door (Sims C-1100-0414M)

1шт.

4

REF

INSTRUCTION

GLASS - cowl (Sims C-1100-0414D)

2шт.

5

REF

INSTRUCTION

GLASS - lower RH side (Sims C-1100-0414G)

1шт.

6

REF

INSTRUCTION

GLASS - upper door (Sims C-1100-0414E)

2шт.

7

REF

INSTRUCTION

GLASS - side panel (Sims C-1100-0414K)

2шт.

8

REF

INSTRUCTION

GLASS - lower rear (Sims C-1100-0414J)

1шт.

9

A42677

MOLDING

GASKET - glass - windshield, 142" (3606.8 mm) (Sims 944-1420)

1шт.

10

A42677

MOLDING

GASKET - glass - lower door, 76" (1930.4 mm) (Sims 944-0760)

1шт.

11

A42677

MOLDING

GASKET - glass - cowl, 65" (1651.0 mm) (Sims 944-0650)

2шт.

12

A42677

MOLDING

GASKET - glass - lower RH, 82" (2082.8 mm) (Sims 944-0820)

1шт.

13

A42677

MOLDING

GASKET - glass - upper door, 108" (2743.2 mm) (Sims 944-1080)

2шт.

14

A42677

MOLDING

GASKET - glass - side panel, 75" (1905.0 mm) (Sims 944-0750)

2шт.

15

A42677

MOLDING

GASKET - glass - lower rear, 72" (1828.8 mm) (Sims 944-0720)

1шт.

16

A42677

MOLDING

- glass, 50' (15.24 M) roll, Serial Range: (Cut-length)

1шт.

17

REF

INSTRUCTION

GLASS - rear window with logo (Sims C-1100-0414L)

1шт.

Ref. 17 is the same as Ref. 1 except Ref. 17 had Case logo.

1шт.

18

REF

INSTRUCTION

GLASS - rear window with logo (Sims C-1100-0415) Serial number 18157-1 and after

1шт.

Ref. 18 is the same as Ref. 17 except Ref. 18 has holes for rear wiper.

1шт.

All glass to be 7/32" thick tempered and tinged blue/green with 75% light transmission. Glass must meet ANSI standard Z-26.1-1966 spec. AS2. Also installed on following serial numbers; 17974-1, 18137-1, 18139-1, 18144-1 and 18147-1.

1шт.
