Запчасти Case IH 1490 (P05-3) - CAB, DOOR AND LATCH (10) - OPERATORS PLATFORM/CAB

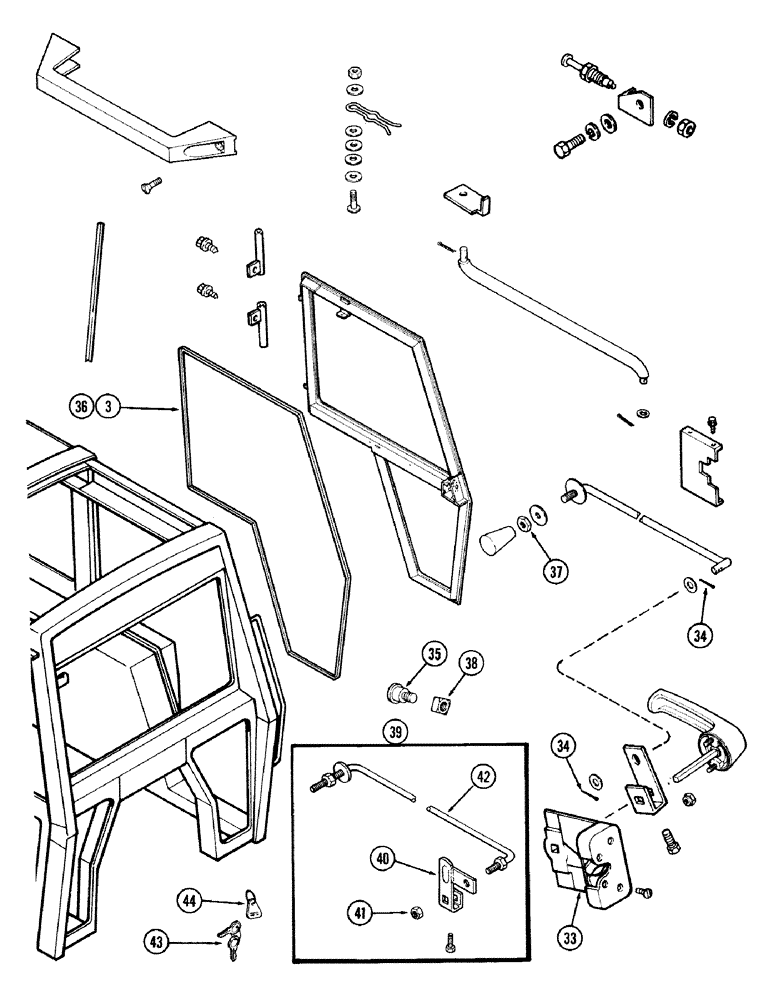

Схема запчастей Case IH 1490 - (P05-3) - CAB, DOOR AND LATCH (10) - OPERATORS PLATFORM/CAB
35
40
43
34
3
42
41
34
37
39
36
44
38
33

Артикул

Название

Примечание

Количество

33

A167376

LATCH

- door, rotary LH (Sims 600-1722)

1шт.

34

136-157

COTTER PIN,Int, 9/64" x .054"

PIN - cotter (1/16 x 1) (Sims 60-402-12)

2шт.

35

F64345

HARDWARE

STRIKER - door latch (Sims 600-1716)

1шт.

36

F64403

SEAL

- door, Serial Range: (Cut-length)

1шт.

37

131-1280

JAM NUT,Jam, 1/4"-20

NUT - lock, jam (1/4-20) (Sims 60-300-110)

1шт.

38

25-227

NUT - square (7/16-14) (Sims A-600-1906) Sq, 7/16"-14

1шт.

39

A167377

KIT

ROD KIT - latch (Sims A-1700-1804) serial number 18032-1 and after

1шт.

40

A167378

ARM

- link - latch (Sims A-1300-1765)

1шт.

41

86625061

NUT,1/4"-20, GB

NUT - lock - nylon (1/4-20) (Sims 60-300-40)

1шт.

42

A167379

ROD

ASSEMBLY - welded - latch (Sims A-1300-1764)

1шт.

43

A77313

SET OF 2 KEYS

KEY - (Sims A-600-1986)

2шт.

1 cabs with following serial numbers were shipped with Refs. 40 and 41; 16332, 16333, 16335 - 16337, 16339, 16350 - 16357, 16361 - 16365, 16387 - 16398, 16400 - 16402, 16404 - 16411, 16428 - 16431 and after. See Figure P6-1 for glass.

1шт.

44

REF

INSTRUCTION

TAG - key (Sims A-600-1985)

1шт.

Выбрано товаров: 13
