Запчасти Case IH 1490 (P03-1) - 4 POST PROTECTIVE FRAME, GLASS (10) - OPERATORS PLATFORM/CAB

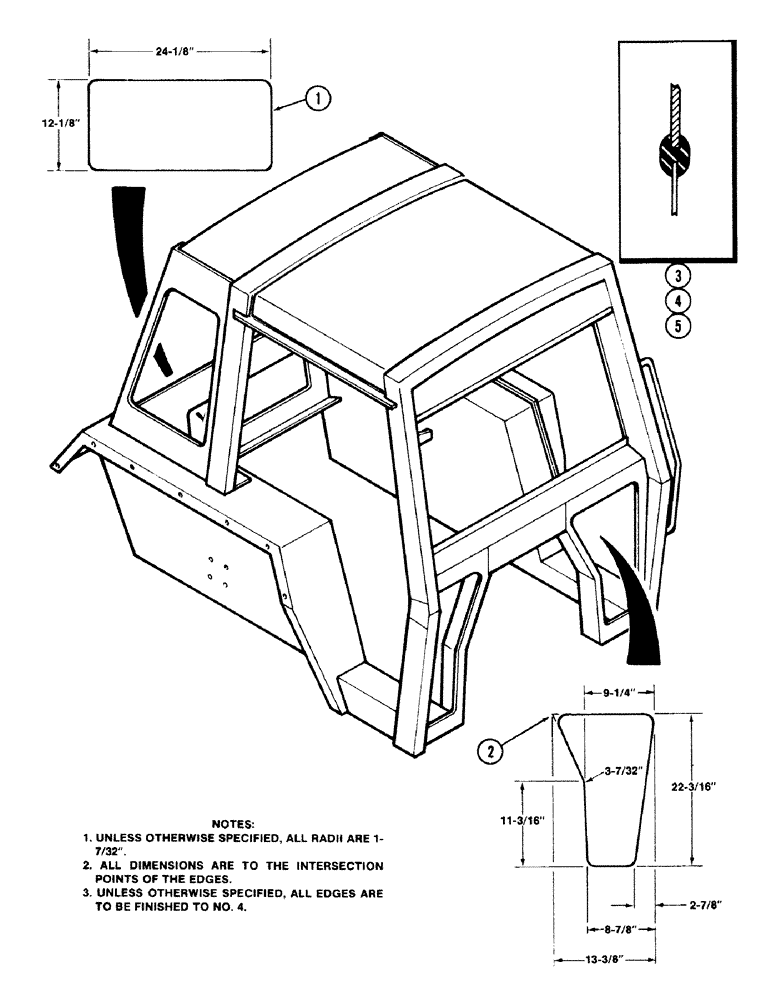

Схема запчастей Case IH 1490 - (P03-1) - 4 POST PROTECTIVE FRAME, GLASS (10) - OPERATORS PLATFORM/CAB
2
4
1
5
3

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

GLASS - lower rear (Sims C-1100-0414J)

1шт.

2

REF

INSTRUCTION

GLASS - cowl (Sims C-1100-0414D)

2шт.

3

A42677

MOLDING

GASKET - lower rear glass, 72" (1828.8 mm) (Sims 944-0720)

1шт.

4

A42677

MOLDING

GASKET - cowl glass, 65" (1651.0 mm) (Sims 944-0650)

2шт.

5

A42677

MOLDING

- glass, 50' (15.24 M) roll, Serial Range: (Cut-length)

1шт.

Выбрано товаров: 5
