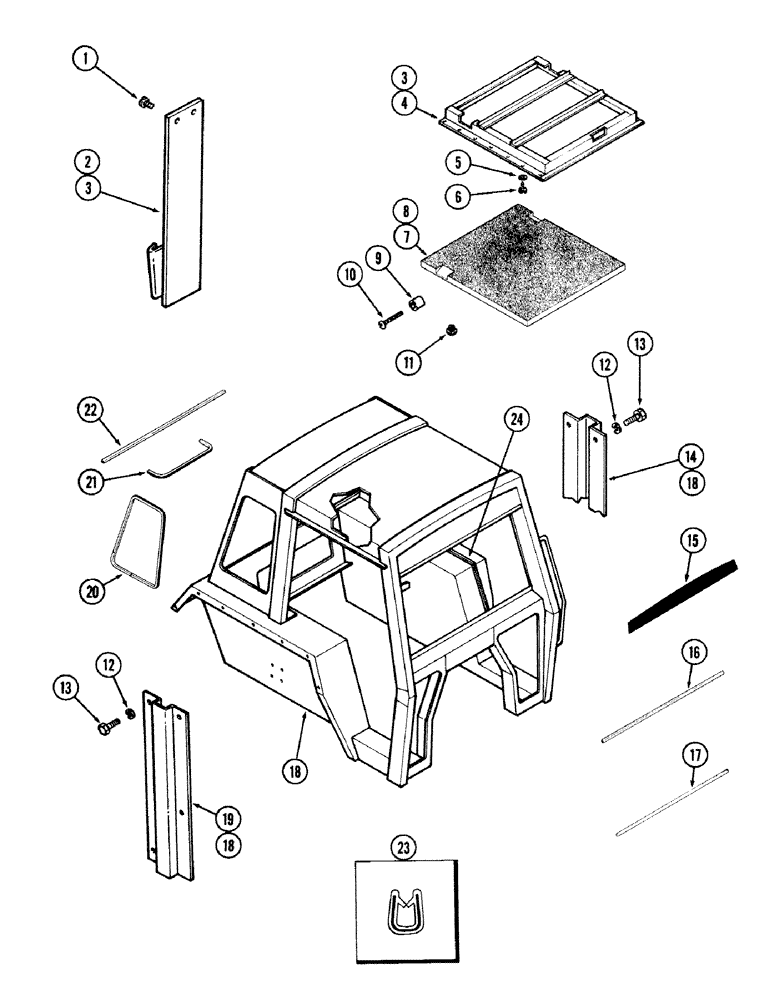

Запчасти Case IH 1490 (P01-1) - 4 POST PROTECTIVE FRAME, PROTECTIVE FRAME (10) - OPERATORS PLATFORM/CAB
№
Артикул
Название
Примечание
Количество
1
187-583
SELF-TAP SCREW,1/4" - 20 x 1/2"
SCREW - pan head self tap (1/4-20 x 1/2) (Sims 25-20-04-70)
2шт.
2
A162267
SMV BRACKET ASSEMBLY - welded (Sims A1300-1606)
1шт.
3
B17170
SPARE PART
PAINT - black - low gloss (Sims 600-1122)
1шт.
4
A167347
ROOF LINING
OPEN ROPS HEADLINER ASSEMBLY - welded (Sims C-1300-1608)
1шт.
5
F43576
WASHER
- countersunk - nylon (#10) (Sims 1700-0832)
19шт.
6
187-233
SCREW - special (#10-16 x 1) (Sims 600-1747)
19шт.
7
A167349
SPACER
OPEN ROPS HEADLINER FOAM ASSEMBLY (Sims B-1700-1711)
1шт.
8
345-43
ADHESIVE - (Sims 600-1056)
1шт.
9
A167349
SPACER
- plexiglass (Sims A-1700-1724)
3шт.
10
187-572
SCREW - pan head self tap (1/4-20 x 1-1/2) (Sims 25-02-12-71)
3шт.
11
REF
INSTRUCTION
CAP - insulation - black (Sims 600-1564) prior to serial number 16492-1
4шт.
11
REF
INSTRUCTION
CAP - insulation - black (Sims 600-1564) serial number 16492-1 and after
8шт.
Ref. 11 - A167350
1шт.
12
192-21
LOCK WASHER,3/8"
WASHER, LOCK, (Sims 6-202-95) 3/8"
4шт.
13
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd
(Sims 38-16-06-06) Hex, 3/8"-16 x 3/4", G5, Full Thd
4шт.
14
A167351
CHANNEL
- wire - LH - (Sims B-1400-9589)
1шт.
15
A42582
DECAL
- front panel (Sims A-600-1835)
1шт.
16
F64277
SEAL
WINDLACE - upper front, 44-1/2" (1130.3 mm) (Sims 903-0444)
1шт.
17
F64277
SEAL
WINDLACE - lower front, 49-1/2" (1257.3 mm) (Sims 903-0494)
1шт.
18
B17410
PAINT
- power white (Sims 600-1143)
1шт.
19
A167352
CHANNEL
- wire - RH (Sims B-1400-9590)
1шт.
20
F64277
SEAL
WINDLACE - side opening, 74-1/2" (1892.3 mm) (Sims 903-0744)
2шт.
21
F64277
SEAL
WINDLACE - lower rear, 49-1/4" (1250.95 mm) (Sims 903-0492)
1шт.
22
F64277
SEAL
WINDLACE - rear - side (Sims 903-0234)
2шт.
23
F64277
SEAL
TRIM - window 50' (15.23 M) roll, Serial Range: (Cut-length)
1шт.
24
F64277
SEAL
WINDLACE - lower rear door opening, Serial Range: (Cut-length)
1шт.
Выбрано товаров: 26
