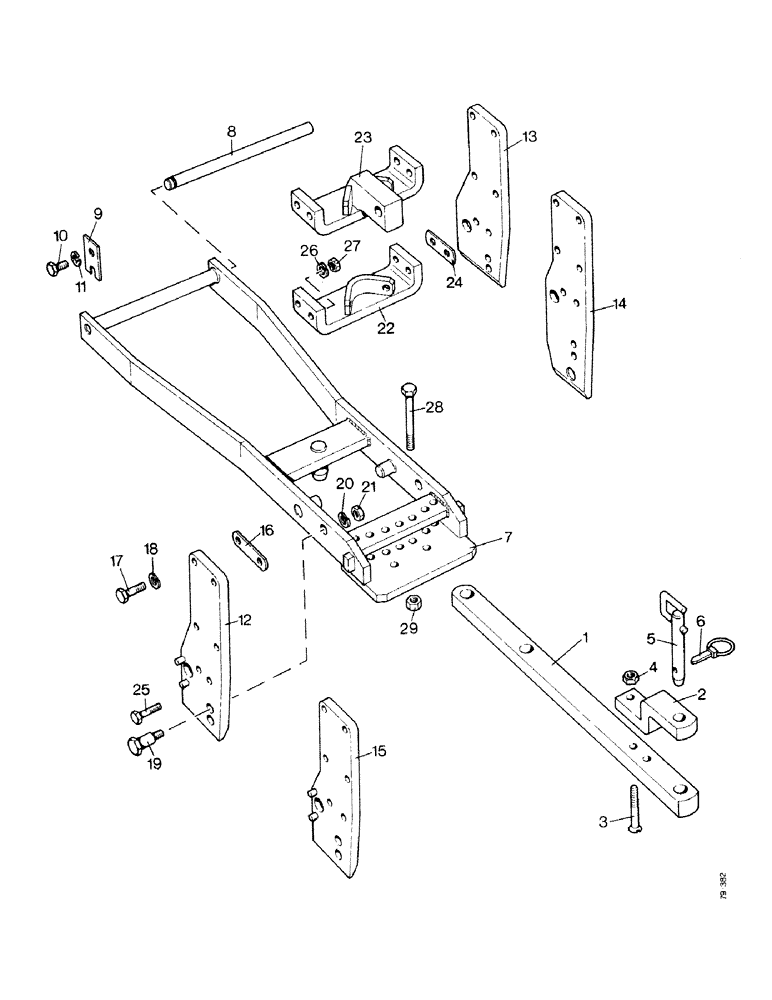

Запчасти Case IH 1490 (L09-1) - UNIVERSAL DRAWBAR, REVERSIBLE-SHAFT PTO, SINGLE-SPEED PTO - NOT NORTH AMERICA (09) - IMPLEMENT LIFT

UK1802

DRAWBAR, SWINGING

DRAWBAR UNIT (Reversible-Shaft PTO), Includes: Ref. 1 - 6

1шт.

UK1749

KIT

DRAWBAR UNIT (Single-Speed PTO - Not North America), Includes: Ref. 1 - 6

1шт.

1

K948406

DRAWBAR, SWINGING

DRAWBAR (Reversible-Shaft PTO)

1шт.

1

K947677

DRAWBAR, SWINGING

DRAWBAR (Single-Speed PTO - Not North America)

1шт.

2

K916516

CLEVIS

BRACKET

1шт.

3

K601666

BOLT

- 5/8 UNC x 3-1/2", special (Reversible-Shaft PTO)

2шт.

3

K601664

BOLT

- 5/8 UNC x 3-1/4" (Single-Speed PTO - Not North America)

2шт.

4

K607463

NUT

- 5/8 UNC, self locking

2шт.

5

K946789

HITCH PIN

1шт.

6

K920359

PIN

- klik

2шт.

UK4603

KIT

SUPPORT FRAME UNIT (Reversible-Shaft PTO), Includes: Ref. 7 - 29

1шт.

UK4609

DRAWBAR, SWINGING

SUPPORT FRAME UNIT (Single-Speed PTO - Not North America), Includes: Ref. 7 - 29

1шт.

7

K947168

SUPPORT

FRAME - drawbar

1шт.

8

K943026

HINGE

BAR

1шт.

9

K943027

PLATE

RETAINING PLATE

1шт.

10

K602983

SCREW

BOLT - 3/8 UNC x 7/8"

1шт.

11

K19482

SPRING WASHER

WASHER - lock, 3/8"

1шт.

12

K956125

HITCH ASSY

HITCH PLATE - left-hand, reversible shaft PTO (Reversible-Shaft PTO)

1шт.

13

K956123

HITCH ASSY

HITCH PLATE - right-hand, without support ram fitting (Reversible-Shaft PTO)

1шт.

13

K947173

BRACKET

HITCH PLATE - right-hand, without support ram fitting (Single-Speed PTO - Not North America)

1шт.

14

K000000

HITCH PLATE - right-hand, with support ram fitting (Reversible-Shaft PTO)

1шт.

14

K000000

HITCH PLATE - right-hand, with support ram fitting (Single-Speed PTO - Not North America)

1шт.

15

K947171

BRACKET

HITCH PLATE - left-hand, multi-speed PTO (Single-Speed PTO, Not North America)

1шт.

16

K917071

SHIM

- 1/16" (1.588 mm) hitch, Serial Range: plates-PTO

1шт.

16

K917072

SHIM

- 1/32" (0.794 mm) hitch, Serial Range: plates-PTO

1шт.

17

K603276

SCREW

BOLT - 5/8 UNC x 1-3/4", hitch, Serial Range: plates-PTO

8шт.

18

K19485

WASHER

- lock, 5/8", hitch, Serial Range: plates-PTO

8шт.

19

K908290

STEP BOLT

- 3/4 UNC, special

2шт.

20

K19486

WASHER, LOCK

WASHER - lock, 3/4"

2шт.

21

280954

NUT,3/4"-10, G5

- 3/4 UNC

2шт.

22

K947174

PLATE

BRIDGE PLATE - without pick-up hitch fitting

1шт.

23

K947176

PLATE

BRIDGE PLATE - with pick-up hitch fitting

1шт.

24

K947200

SHIM

- 1/16" (1.588 mm)

1шт.

24

K947201

SHIM

- 1/32" (0.794 mm)

1шт.

25

K601360

BOLT

- 5/8 UNC x 2-1/2"

4шт.

26

K19485

WASHER

- lock, 5/8"

4шт.

27

280374

NUT,Hex, 5/8" - 11, Gr 5

4шт.

28

K601334

BOLT

- 5/8 UNC x 4-1/2"

2шт.

29

K607306

NUT

- 5/8 UNC, self-locking

2шт.
