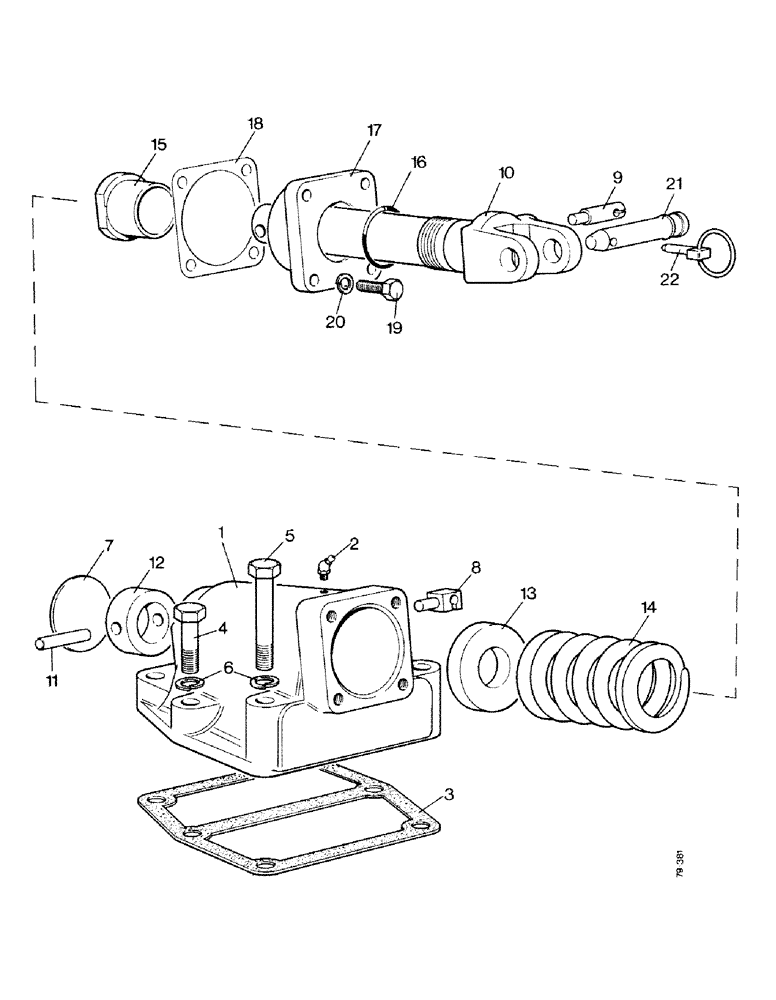

Запчасти Case IH 1490 (L08-1) - SINGLE RATE SENSING UNIT, NOT NORTH AMERICA (09) - IMPLEMENT LIFT

UK954

KIT

SENSING UNIT, Includes: Ref. 1 - 22

1шт.

1

K202576

CASE

HOUSING

1шт.

2

K690973

FITTING

GREASE FITTING - 1/4 ANF x 45 degree

1шт.

3

K926451

GASKET,0.56mm Thk

1шт.

4

K600872

SCREW

BOLT - 1/2 UNC x 1-7/8"

4шт.

5

K600887

BOLT

- 1/2 UNC x 3-1/4"

2шт.

6

K626345

LOCK WASHER

WASHER - lock, 1/2"

6шт.

7

K623813

PLUG

CORE PLUG - 2-3/8" (60.325 mm)

1шт.

8

K912371

CABLE

SUPPORT - outer

1шт.

9

K913852

LARGE PIN

CABLE SUPPORT - inner

1шт.

10

K919726

SHAFT

1шт.

11

K915117

PIN

RETAINING PIN

1шт.

12

K915266

COLLAR

1шт.

13

K915101

WASHER

THRUST WASHER - 0.375" (9.525 mm)

1шт.

13

K915112

WASHER

THRUST WASHER - 0.355" (9.017 mm)

1шт.

13

K915113

WASHER

THRUST WASHER - 0.365" (9.271 mm)

1шт.

13

K915114

WASHER

THRUST WASHER - 0.385" (9.779 mm)

1шт.

13

K915115

WASHER

THRUST WASHER - 0.395" (10.033 mm)

1шт.

13

K915116

WASHER

THRUST WASHER - 0.405" (10.287 mm)

1шт.

14

K915103

SPRING

1шт.

15

K915259

SLEEVE

1шт.

16

K623556

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

- 1-7/8" (47.625 mm) internal diameter

1шт.

17

K915261

FLANGE

END PLATE

1шт.

18

K915096

SHIM,.005" Thk

(0.127 mm) .005" Thk

1шт.

18

K915097

SHIM,.010" Thk

(0.254 mm) .010" Thk

1шт.

18

K915098

SHIM,.030" Thk

(0.762 mm) .030" Thk

1шт.

19

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

SETSCREW - 3/8 UNC x 1-1/8"

4шт.

20

K19482

SPRING WASHER

WASHER - lock, 3/8"

4шт.

21

K919725

PIN,19.05mm OD x 111.13mm L

LINK PIN

1шт.

22

K66408

PIN

- klik

1шт.
