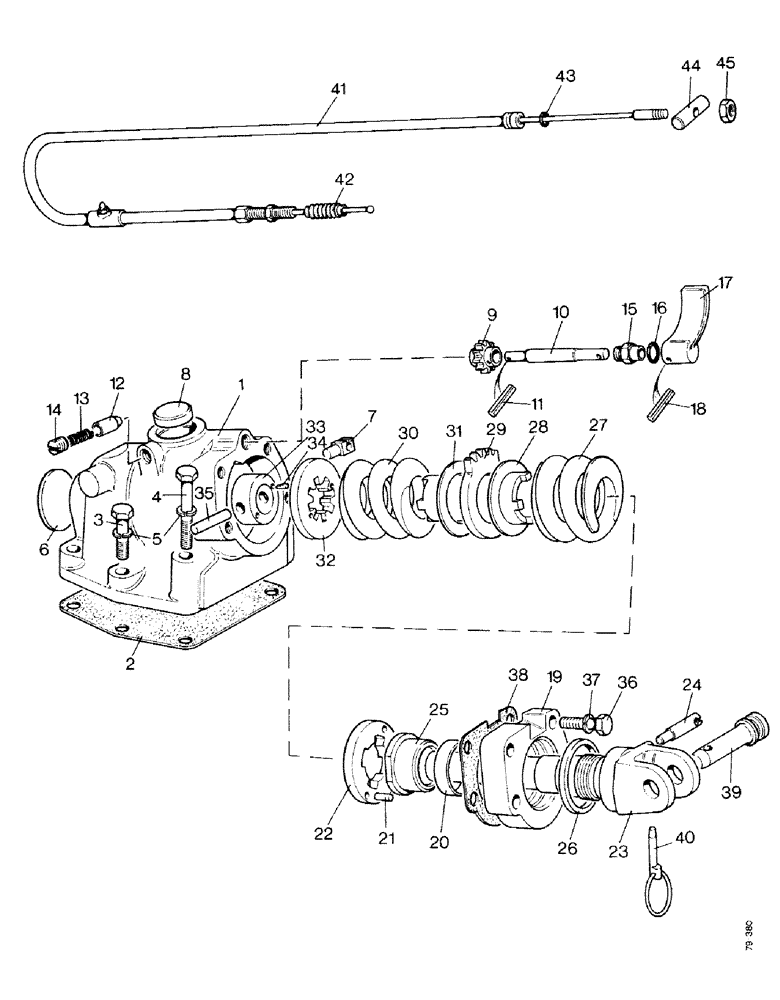

Запчасти Case IH 1490 (L07-1) - SELECTIVE SENSING UNIT (09) - IMPLEMENT LIFT

UK1376

KIT

SELECTIVE SENSING UNIT, Includes: Ref. 1 - 40

1шт.

1

K940028

SPRING

HOUSING

1шт.

2

K926451

GASKET,0.56mm Thk

1шт.

3

K600872

SCREW

BOLT - 1/2 UNC x 1-1/8"

4шт.

4

K600887

BOLT

- 1/2 UNC x 3-1/4"

2шт.

5

K626345

LOCK WASHER

WASHER - lock, 1/2"

6шт.

6

K623813

PLUG

CORE PLUG - 2-3/8" (60.325 mm) diameter

1шт.

7

K912371

CABLE

SUPPORT - outer

1шт.

8

K623797

PLUG

CORE PLUG - 1-3/4" (44.45 mm)

1шт.

9

K929874

SELECTOR

PINION

1шт.

10

K940044

SELECTOR

SPINDLE

1шт.

11

K690338

PIN

- 5/32 x 5/8" (3.969 x 15.875 mm)

1шт.

12

K946440

PLUNGER

- detent

1шт.

13

K625285

SPRING

- detent plunger

1шт.

14

K606281

SCREW

- 1/2 UNC

1шт.

15

K940045

BUSHING

- special

1шт.

16

K623681

WIPER

RING - 1/2" (12.7 mm) internal diameter

1шт.

17

K940046

SELECTOR

LEVER

1шт.

18

K623727

GROOVED PIN,5/32" x 7/8", Type A

Pin, Grooved, (3.969 x 22.225 mm) 5/32" x 7/8", Type A

1шт.

K947303

SHAFT

ASSEMBLY, Includes: Ref. 19 - 35

1шт.

19

K964912

PLATE

END PLATE ASSEMBLY, Includes: Ref. 20 - 22

1шт.

20

K621423

BUSHING

1шт.

21

K940031

PIN

DOWEL - 1/4 x 3/4" (6.35 x 19.05 mm)

2шт.

22

K947302

WASHER

THRUST WASHER

1шт.

23

K929808

SHAFT

1шт.

24

K940047

BRACKET

CABLE SUPPORT

1шт.

25

K940035

SLEEVE

1шт.

26

K623460

WIPER

SEAL - 2-1/2" (63.5 mm) internal diameter

1шт.

27

K928315

SPRING

- 2" (50.8 mm) internal diameter

1шт.

28

K928388

SHIM

- 0.003" (0.0762 mm)

1шт.

28

K928389

SHIM

- 0.007" (0.1778 mm)

1шт.

28

K928390

SHIM

- 0.015" (0.381 mm)

1шт.

29

K940036

SUPPORT

SPRING SUPPORT

1шт.

30

K928314

SPRING

- 1-3/4" (44.45 mm) internal diameter

1шт.

31

K928392

SHIM

- 0.003" (0.0762 mm)

1шт.

31

K928393

SHIM

- 0.007" (0.1778 mm)

1шт.

31

K928394

SHIM

- 0.015" (0.381 mm)

1шт.

32

K940039

WASHER

THRUST WASHER - 0.373" (9.4742 mm)

1шт.

32

K940040

WASHER

THRUST WASHER - 0.365" (9.271 mm)

1шт.

32

K940041

WASHER

THRUST WASHER - 0.357" (9.0678 mm)

1шт.

33

K947867

COLLAR

- with dowels

1шт.

34

K940043

PIN

STEPPED DOWEL

2шт.

35

K915117

PIN

RETAINING PIN - 3/8 x 2-1/4" (9.525 x 57.15 mm)

1шт.

36

K600606

BOLT

- 7/16 UNC x 2"

4шт.

37

K626344

WASHER, LOCK

WASHER - lock, 7/16"

4шт.

38

K940032

SHIM

- 0.005" (0.127 mm)

1шт.

38

K940033

SHIM

- 0.010" (0.254 mm)

1шт.

38

K940034

SHIM

- 0.030" (0.762 mm)

1шт.

44

K915053

FITTING

NIPPLE - no. 10 UNF

1шт.

42

K906182

RUBBER

DIRT COVER

1шт.

39

K919725

PIN,19.05mm OD x 111.13mm L

LINK PIN

1шт.

40

K66408

PIN

- klik

1шт.

41

K963417

LINK

CABLE - with dirt cover

1шт.

42

K906182

RUBBER

DIRT COVER

1шт.

43

K690702

O-RING,1.59mm Thk x 6.75mm ID, 80 Duro

- 1/4" (6.35 mm) internal diameter

1шт.

44

K915053

FITTING

NIPPLE - no. 10 UNF

1шт.

45

K617080

NUT

- no. 10 UNF

2шт.
